4.2.18 Replacing the Main Board (PR216001)
(1) Remove the front and rear guides (see Subsection 4.1.2).
(2) Disconnect all cables attached to the main board's connectors.

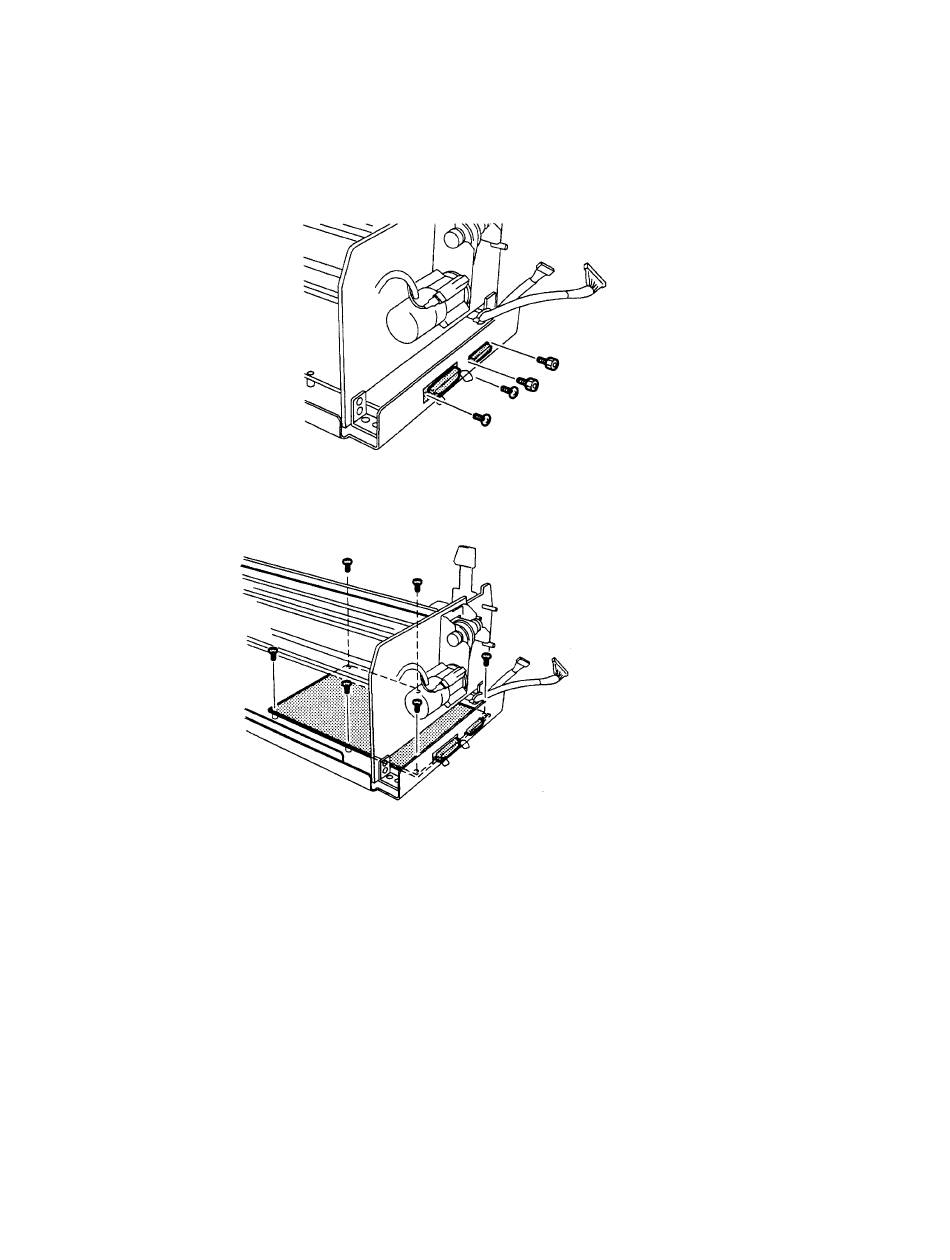

(3) As shown in Fig.4-88, remove the screws from the interface connectors.
• Two standoffs and two M2.6 x 10 pan-head screws
(4) Remove the main board as shown in Fig.4-89.
• Six M3 x L6 pan-head with flat washer screws
(5) To mount the main board, reverse the above procedure.
* Make absolutely sure to conduct all electrical adjustments!
Fig. 4-88
Fig. 4-89
4 - 38
