5.12 Adjusting the Distance Accuracy

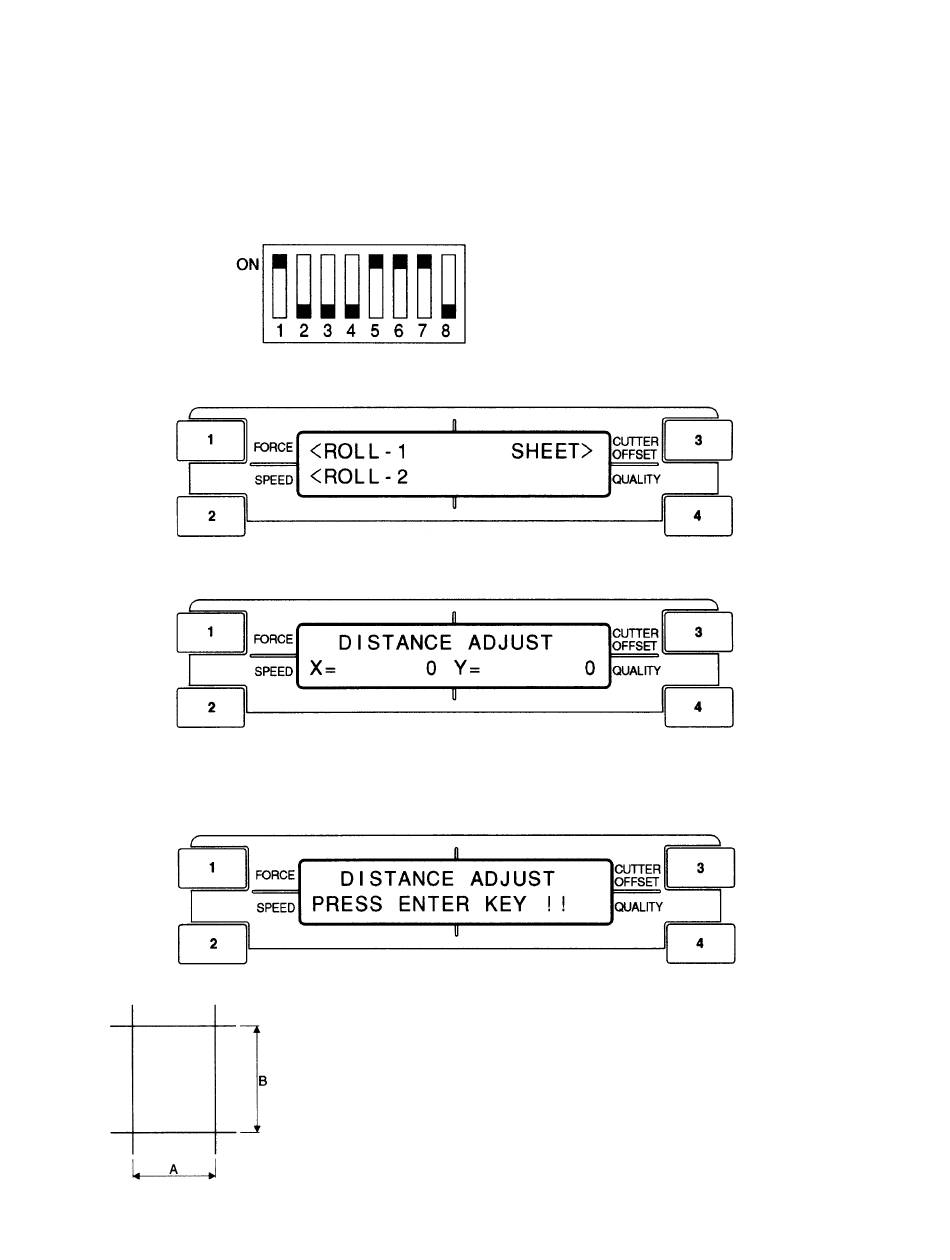

(1) Set the SW1 DIP switch as shown below, mount a ceramic pen in the pen holder, load a sheet of
PL518-[ ]-PF paper, and then turn on the plotter.
* Paper should be A2 size or larger
* Load the paper so that the longer edge is in the X-axis direction.
* If the above conditions are not observed, an error will occur.
* Set Bits 2, 3, 4, and 8 to OFF
(2) After the ROM and RAM checks, the following menu appears on the LCD panel.
(3) When the [ 3 ] (SHEET) key is pressed, the plotter is initialized and then the menu below appears.
↓
[ ENTER ] The currently registered distance correction values are
displayed in 0.1 mm units.
↓
↓
[ ENTER ] The distance accuracy pattern shown on the left is plotted.
In Step (3), input corrective values so that:
Distance A = 300 mm ± 0.30 mm
Distance B = 400 mm ± 0.40 mm
