Assembling Full Configurations

3.2 SmartCart

The SmartCart is configured for operation with 50, 100 and 200 MHz antennas and 250, 500
and 1000 MHz transducers to rapidly acquire data in flat and smooth environments.

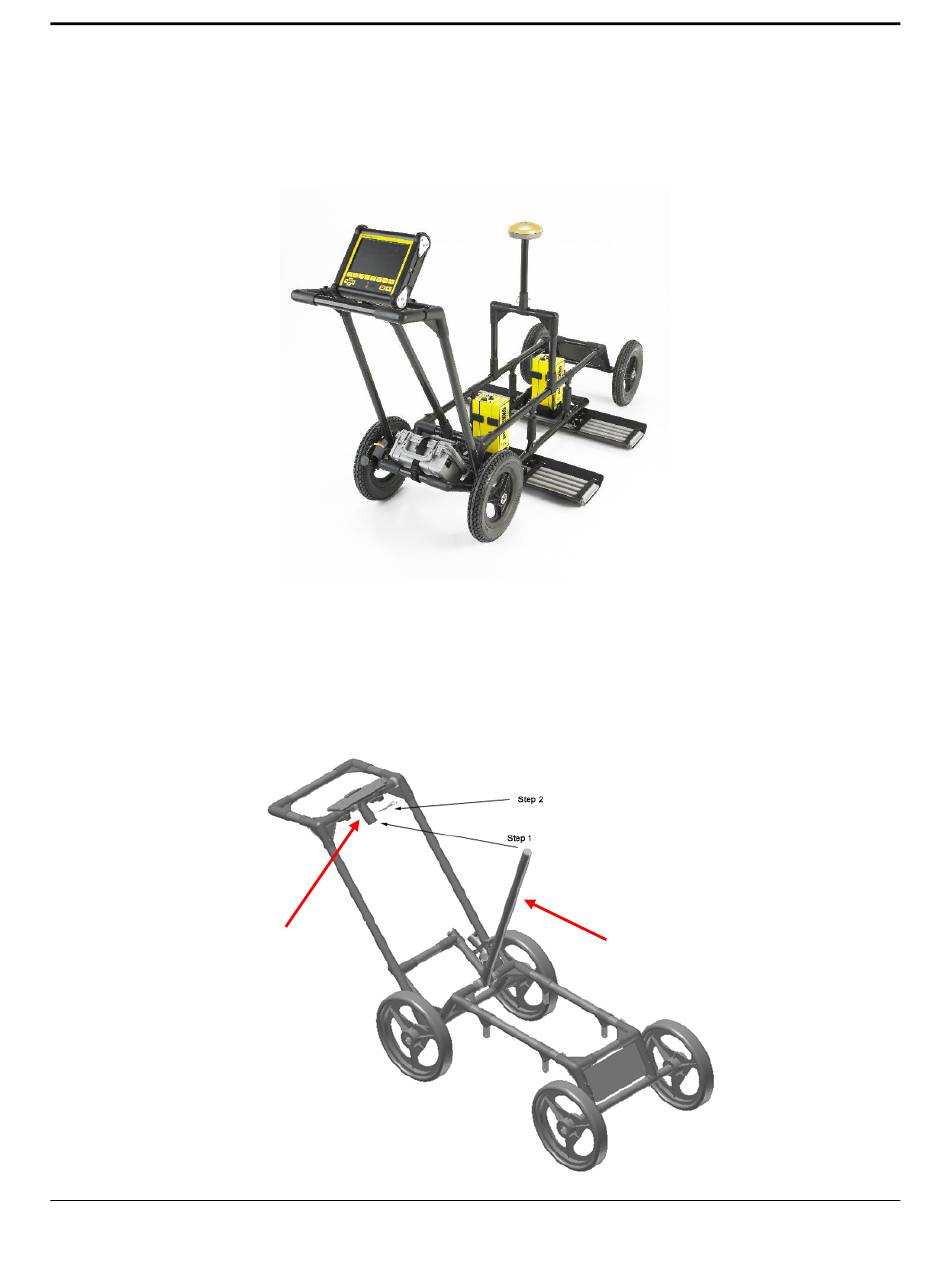

The following image shows a completely assembled SmartCart with a frequency of 100 MHz.
100 MHz
3.2.1 Unfolding the Handle
The Sensors & Software SmartCart is shipped in a folded position for easier transportation and
storage. Refer to the following image while unfolding your SmartCart.
Handle Support Arm
T-Shaped Tube
