Tools and Preferences

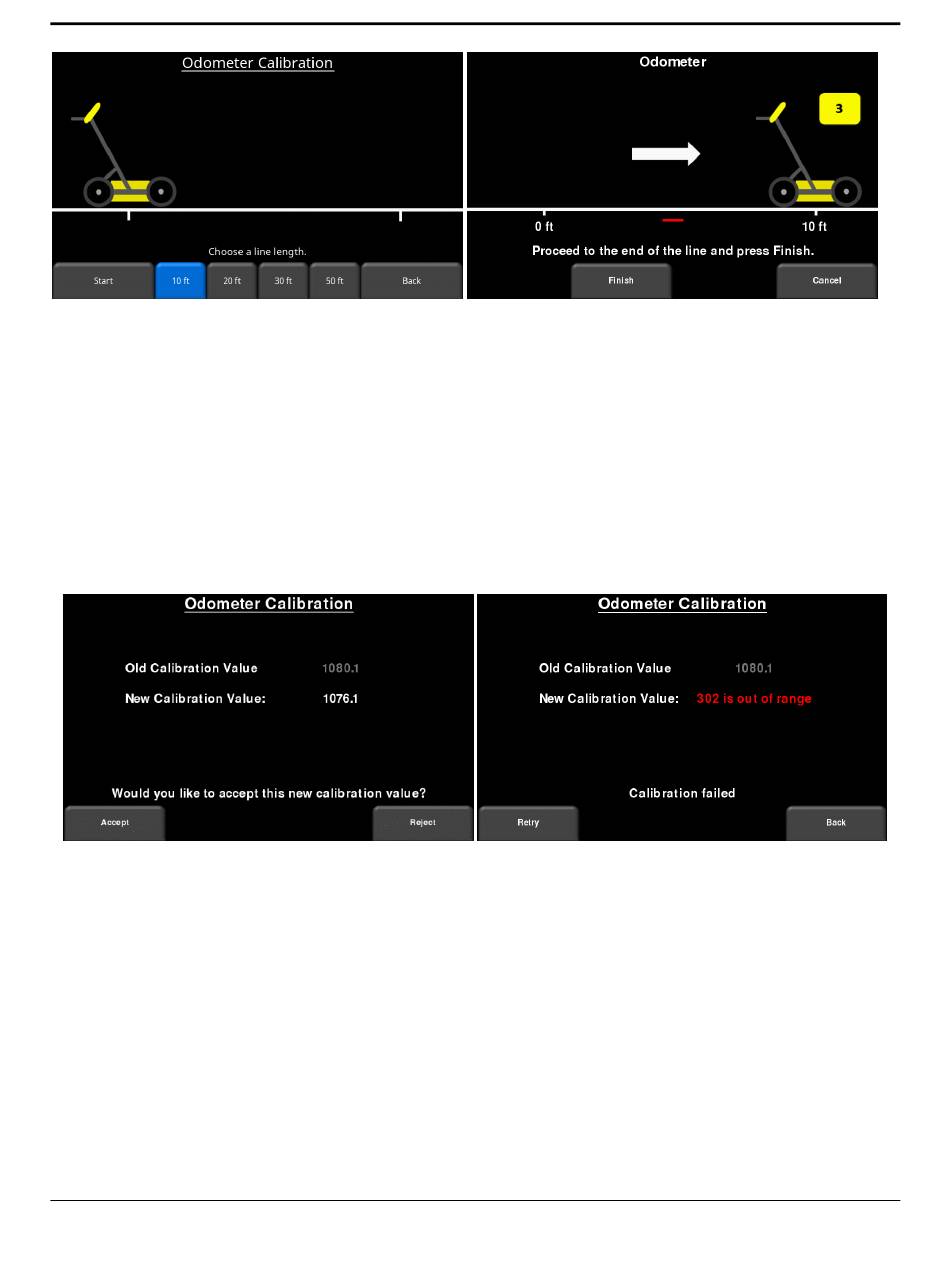

Figure 5-25: Odometer Calibration. Image on the left shows the screen where the user must select a distance. The
image on the right instructs you to move that distance then press Finish.
Upon completion, it will display one of the screens shown in Figure 5-26. The new
calibration value is shown, along with a message asking if you would like to accept this
new value. Press Accept to save it, or Reject to revert to the old value.
If the value is very different from the expected value, the calibration will fail, and it will
display an error message in red. You then have the option to Retry or exit by pressing
Back. If you exit this menu, the old calibration value is maintained.
Figure 5-26: Results of Odometer Calibration. Image on right shows a failure, as calibration is way out of range
•
Manual – Pressing this button changes the bottom menu, allowing you to manually
insert a calibration value. This can be done using the buttons along the bottom of the
screen to increase or decrease the calibration value (Figure 5-27).
