Collecting Data

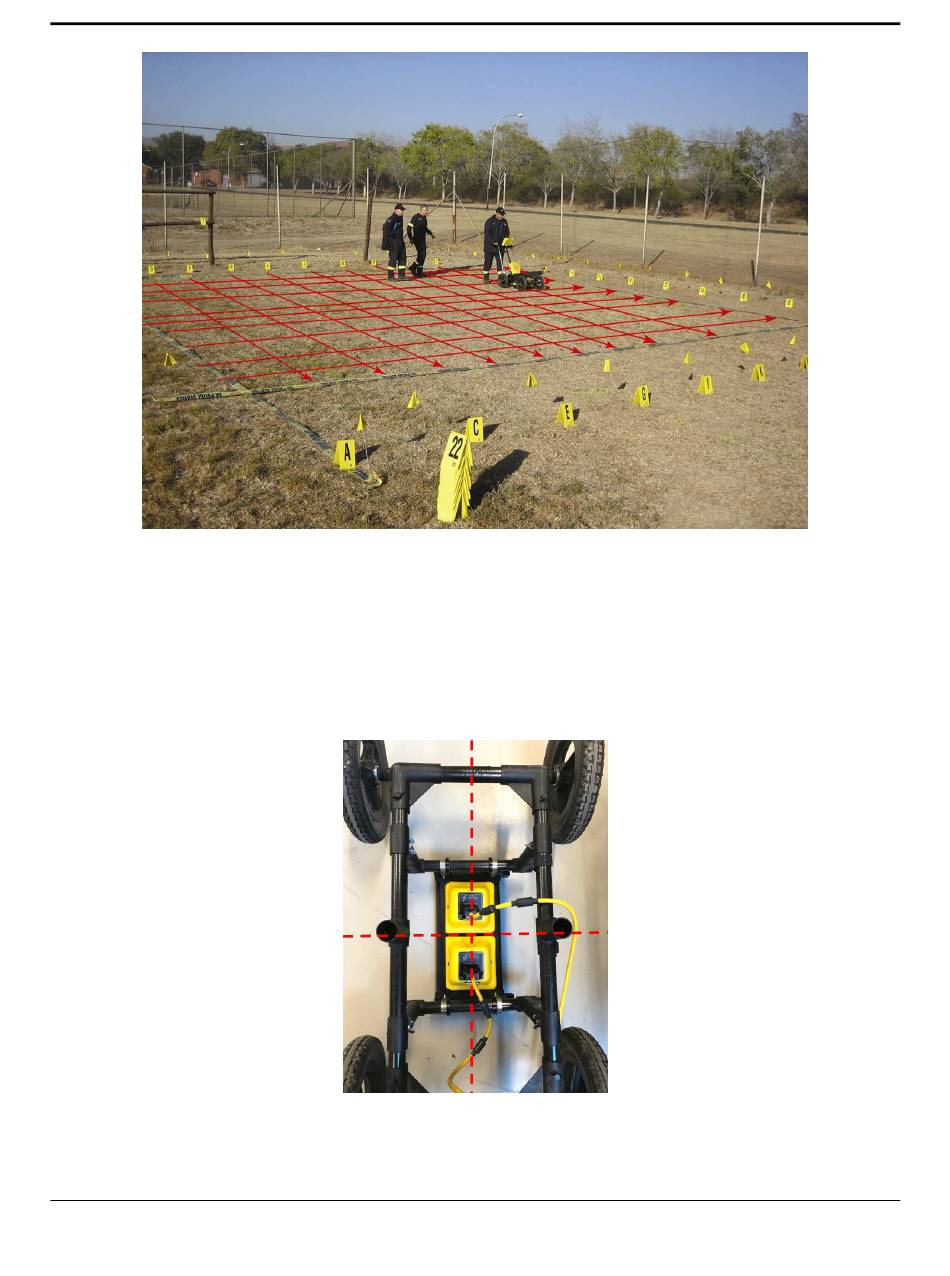

Figure 7-34: Example of a grid survey. The red lines are superimposed just to illustrate the concept.
7.2.6 Physical Data collection
It is critical that the starting position is consistent on every line. Line up the mid-point of the
pulseEKKO antennas or transducers with the starting line (Figure 7-35), and then press Start.
Wait for the screen to change as shown in Figure 7-36. Then push the system straight towards
the end of the line. It is helpful to have a marker at the end so you have something to aim for.
