3.2.6 Attaching the Battery

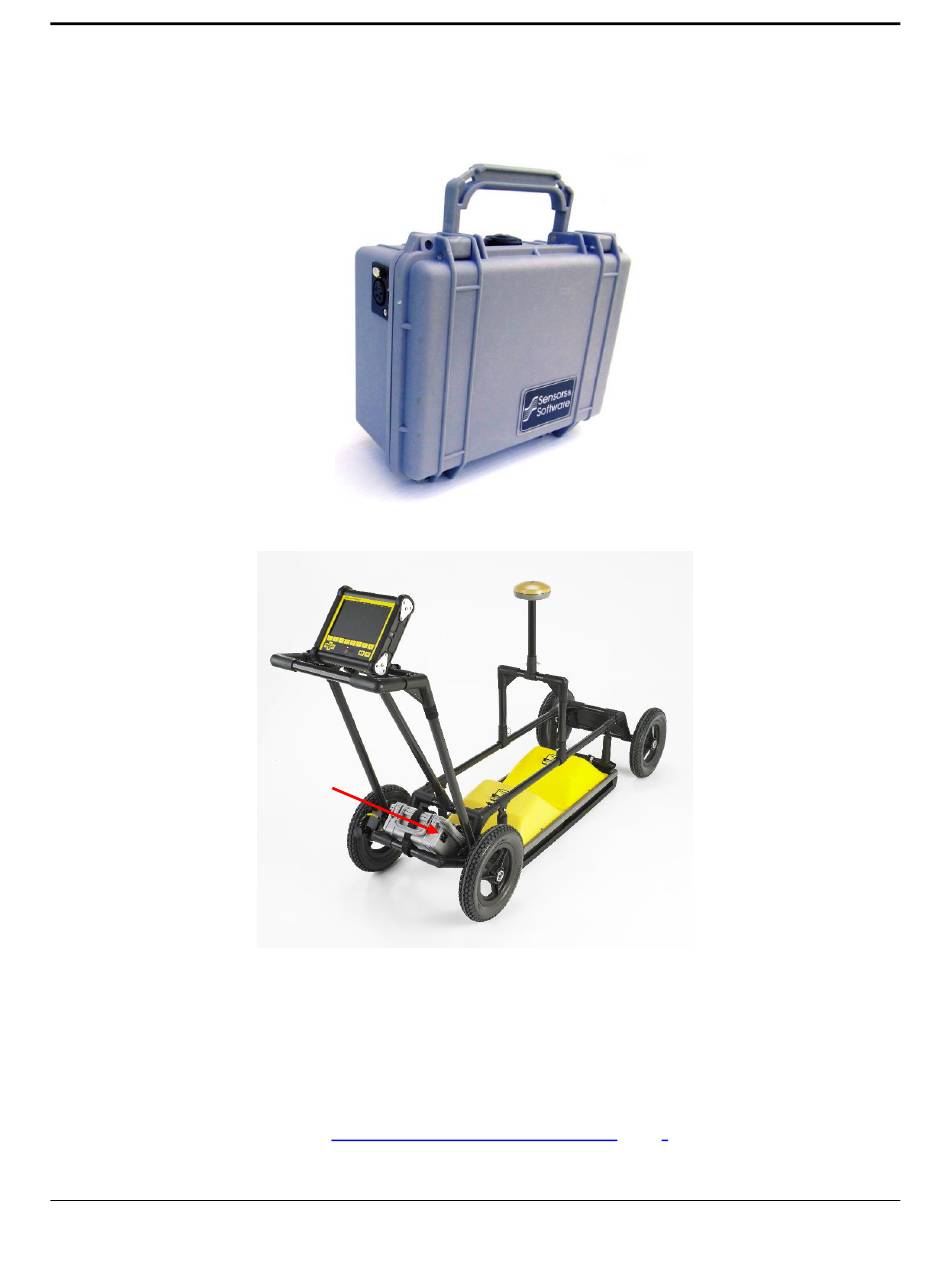

The following image displays the SmartCart 12V (9 Amp-hr) battery. Follow the steps for
placing the battery in the SmartCart:
1. Set the battery onto the lower inclined shelf on the back of the SmartCart.
Power Cable
Receptacle
2. Ensure the battery unit handle is facing the back of the cart and the cable receptacle is
on the right. The battery should rest in this area without moving.
3. Secure the battery onto the cart by placing the straps provided over the battery.
4. Fasten the plastic buckle to lock the straps.
5. Tighten the straps.
Once complete, see section on Connecting Transducer Cables
26
Assembling Full Configurations
(3.6.3).
