System Configuration

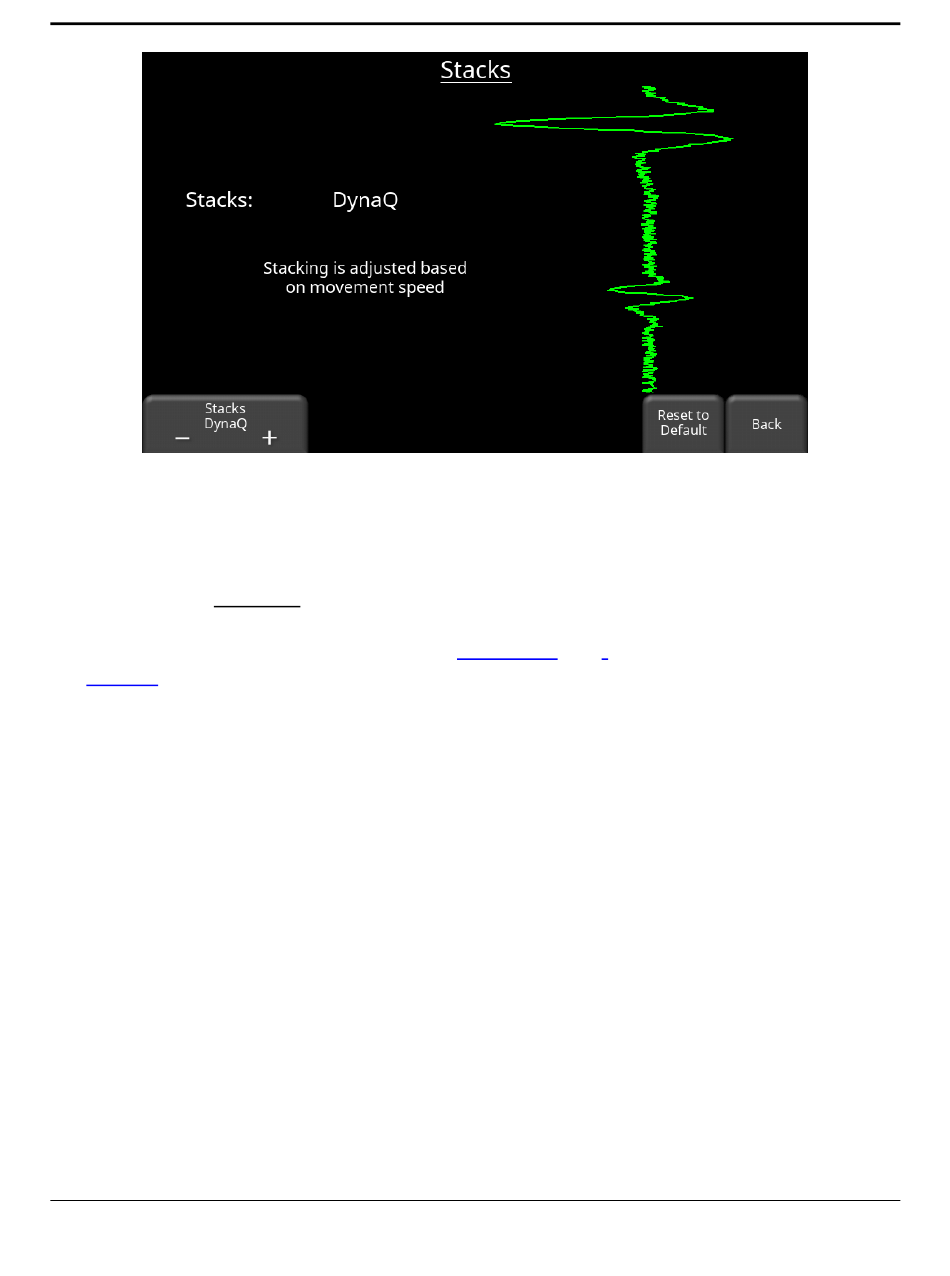

Figure 6-7: Setting Stacks
One of the options available as you cycle through Stacks is DynaQ. DynaQ is an advanced
patented technology that adjusts data quality as the system movement speed varies. In most
situations, moving the system at a comfortable walking speed generates data of good quality.
This is essentially automatic stacking of the data.
DynaQ is only available if the Trigger is set to Odometer (6.2.3). Details are further explained in
the Section 7.1.1.
6.1.6 Transmitter
This setting allows you to specify which transmitter is being used for data collection. Several
different transmitters can be used with a pulseEKKO system.
Press Transmitter to display the screen in Figure 6-8, where the type of transmitter can be set.
