Assembling Full Configurations

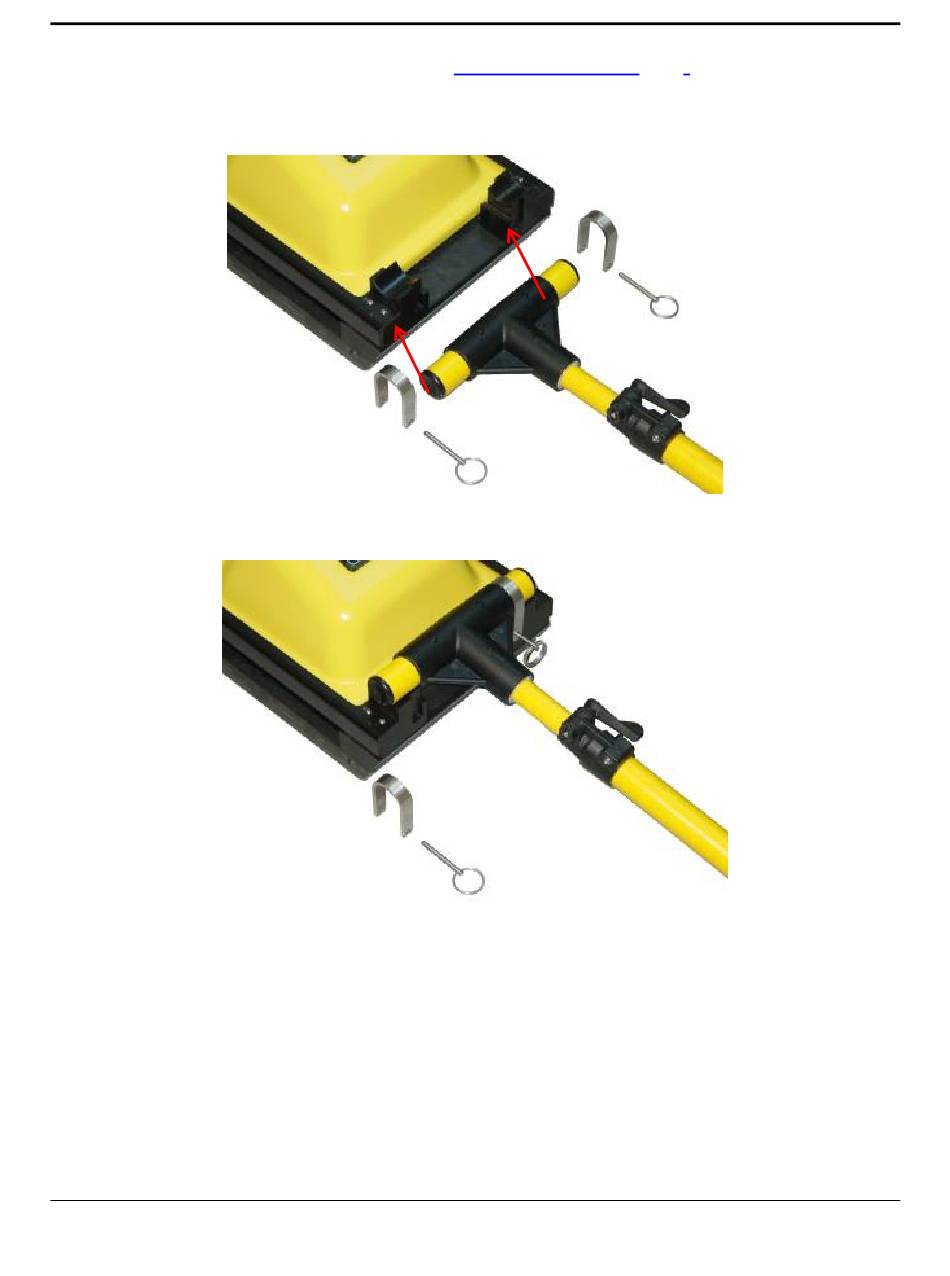

Ensure the transducers are assembled in the skid plate assembly (2.2.2). Then attach the
adjustable tow handle to the skid plate assembly by placing the smaller T-end of the handle into
the trough on the end of skid plate assembly. The label on the transducers should be facing
away from the handle, as shown in the picture above.
Attach the T-end of the handle to the skid plate assembly by placing the U-bracket over top and
into the vertical slots.
Secure the handle to the skid plate assembly by inserting the metal pins into the holes at the
bottom of the U bracket.
