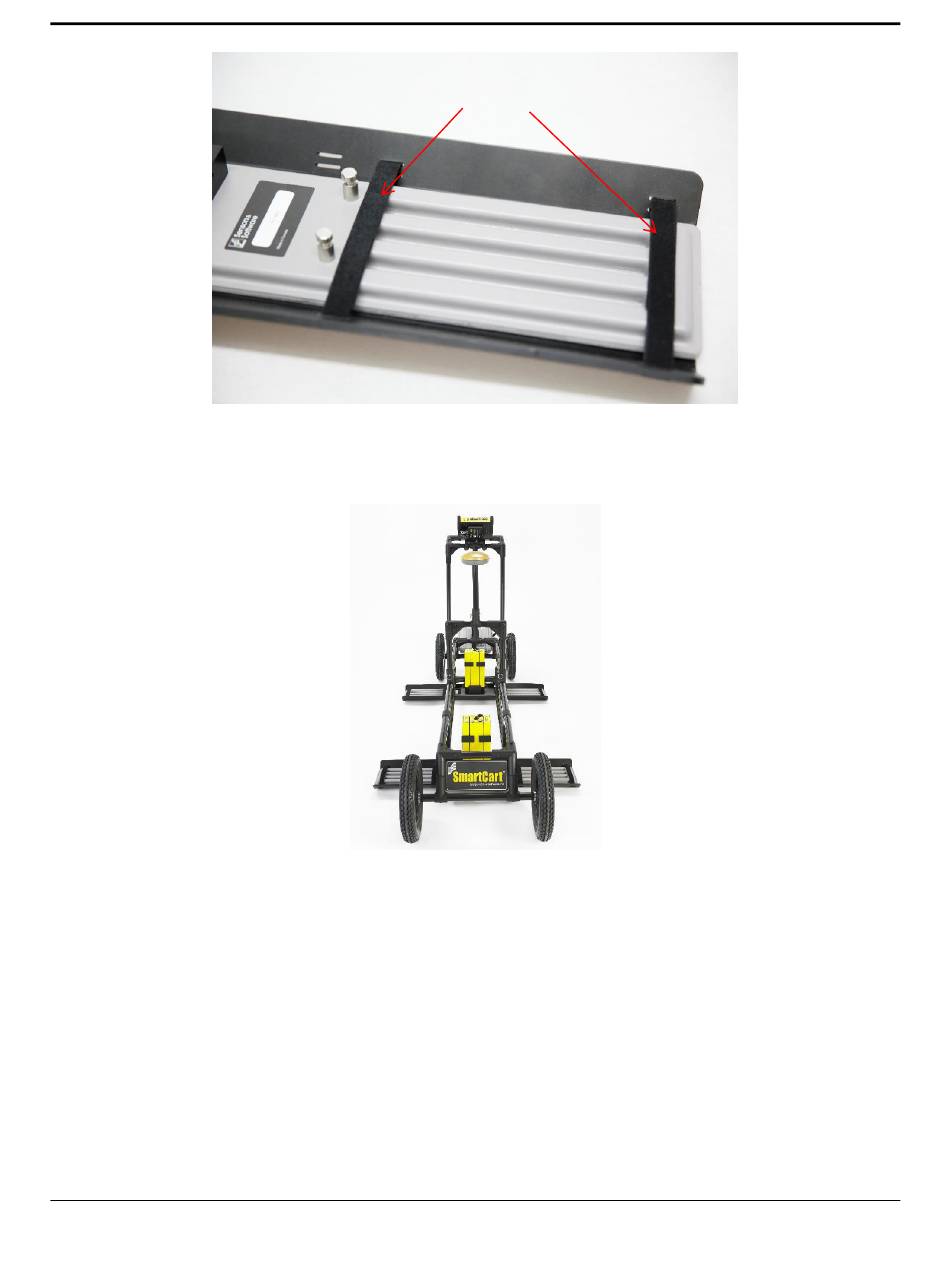

The antennas are secured with Velcro straps to the skid plates. The picture below shows an
assembled SmartCart with antenna skid plates.
2.1.5
Attaching Fibre Optic Converters to the DVL
Fibre optic cables connect low frequency (12.5 to 200 MHz) transmitter and receiver electronics
to the back of the DVL. First, attach the fibre optic converters to the back of the DVL and secure
them using the latches shown in the following image.
Velcro
straps
7
Assembly
