Assembling Full Configurations

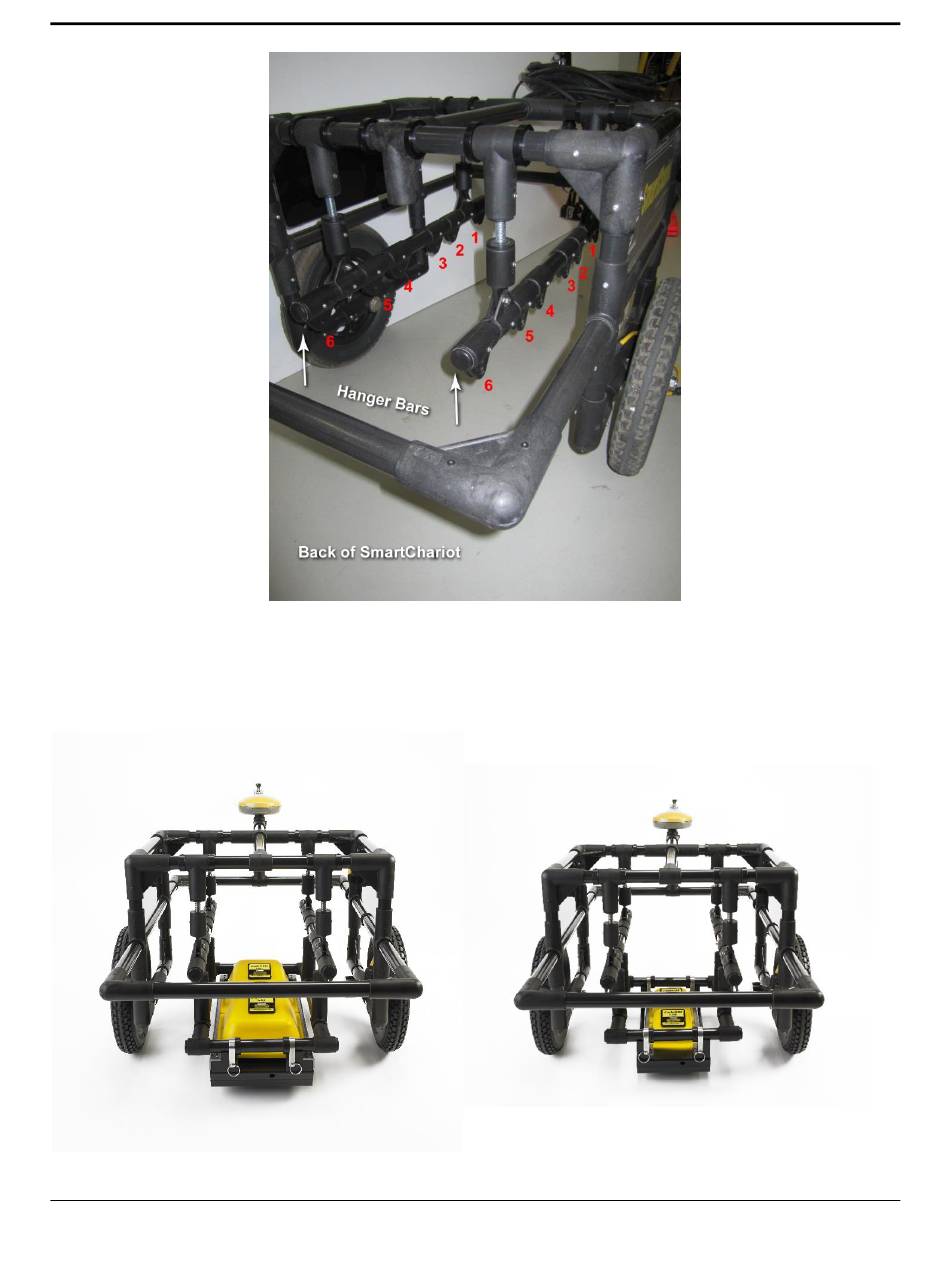

Attach the hangers to the hanger bar using the nuts and bolts provided. Use two 10 mm
wrenches to assemble the hangers (wrenches not provided).
The resulting pictures show the assembled SmartChariot with 500 MHz and 1000 MHz
transducers.
500 MHz
1000 MHz
40
