1.

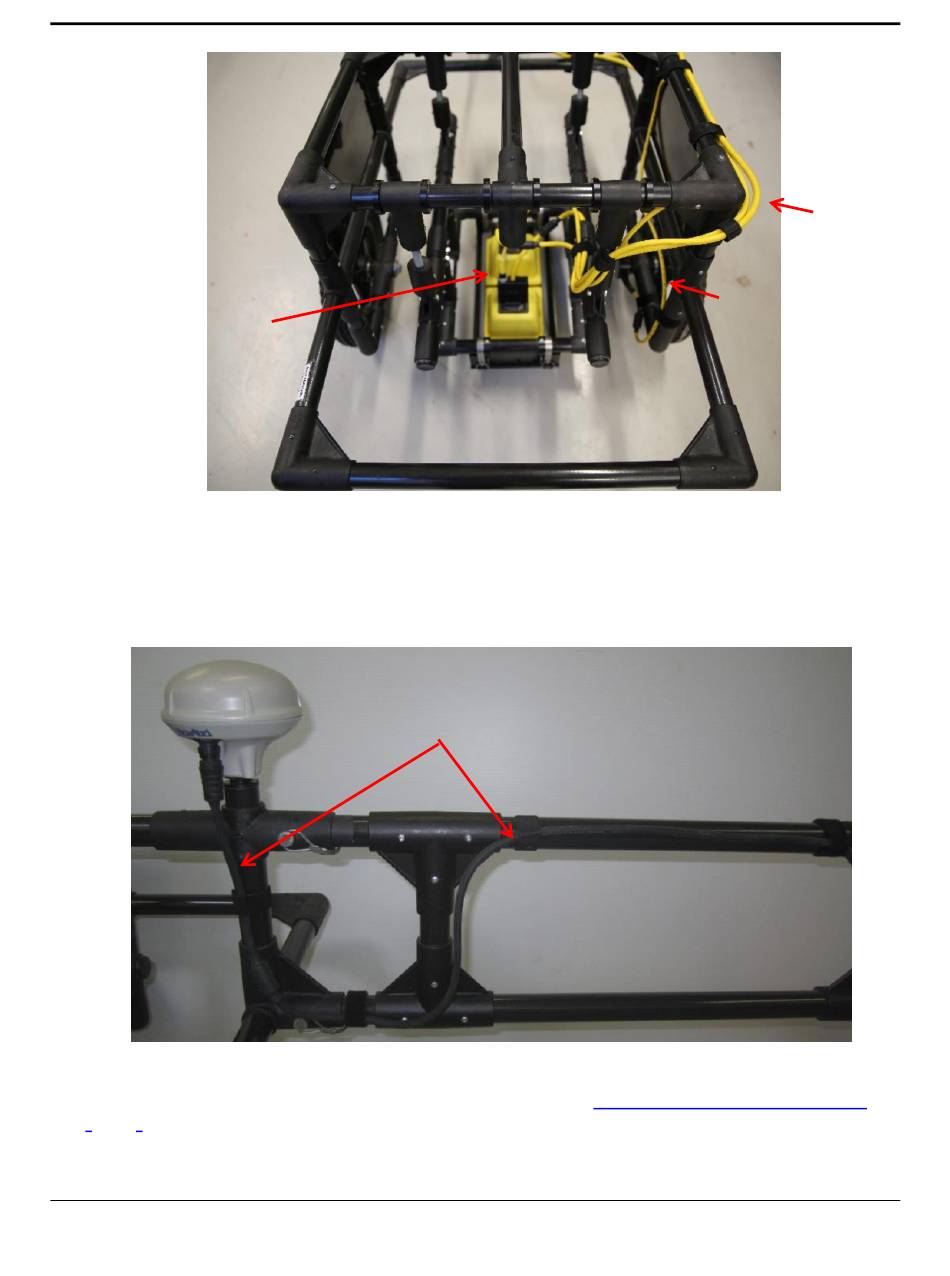

Route the GPS cable up to the top of the SmartChariot Handle Assembly.
2.
Route the cable along the top of the SmartChariot handle and into the tow vehicle.
Connect all transducer cables as described in the section
(3.6.3).
Back of SmartChariot
GPS Cable
45
Assembling Full Configurations
Odometer
Cable
Connecting Transducer Cables
Transducer
cables
