Assembling Full Configurations
3. Assembling Full Configurations
3.1 Bistatic System
Before assembling the full Bistatic system, make sure the transmitter and receiver are

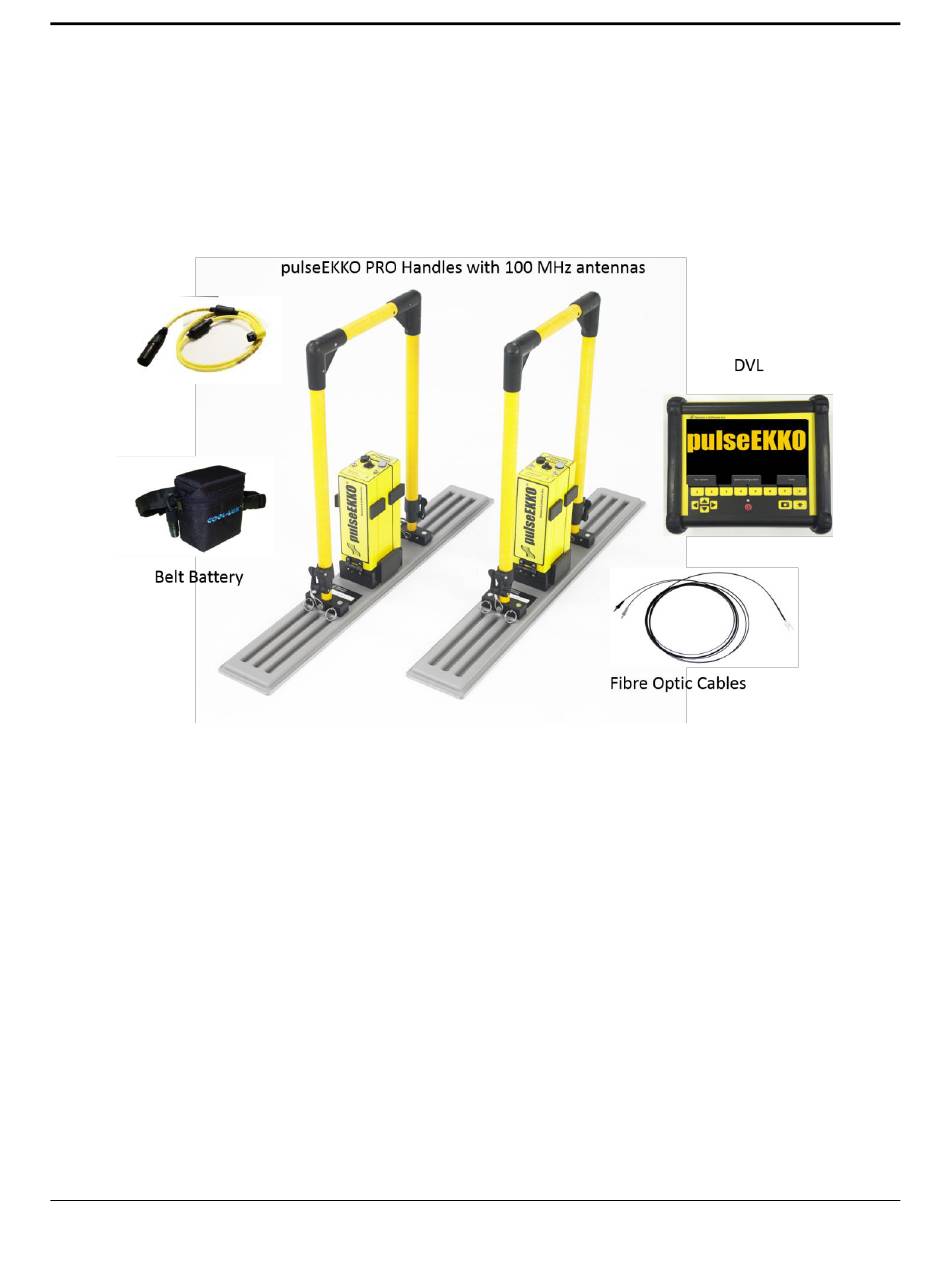

connected to the antennas. The following image displays the complete low frequency
pulseEKKO hand held assembly.
Power Cable
3.1.1
Attaching Adjustable Handles
1. To attach the adjustable handle to the antenna, place the handle blocks over the 4 posts on
the antenna and insert the pins to secure.
11
