Collecting Data
For Transillumination-MOG, you will see the screen in Figure 7-26. The image on the left shows
the initial screen before you start collecting data. Starting antenna positions can be changed by
pressing the + and – buttons under the Tx and Rx positions respectively.
Press Start to the begin the survey. After all receiver positions are collected with the transmitter
fixed, the transmitter will then be moved and the process repeated (image on the right).

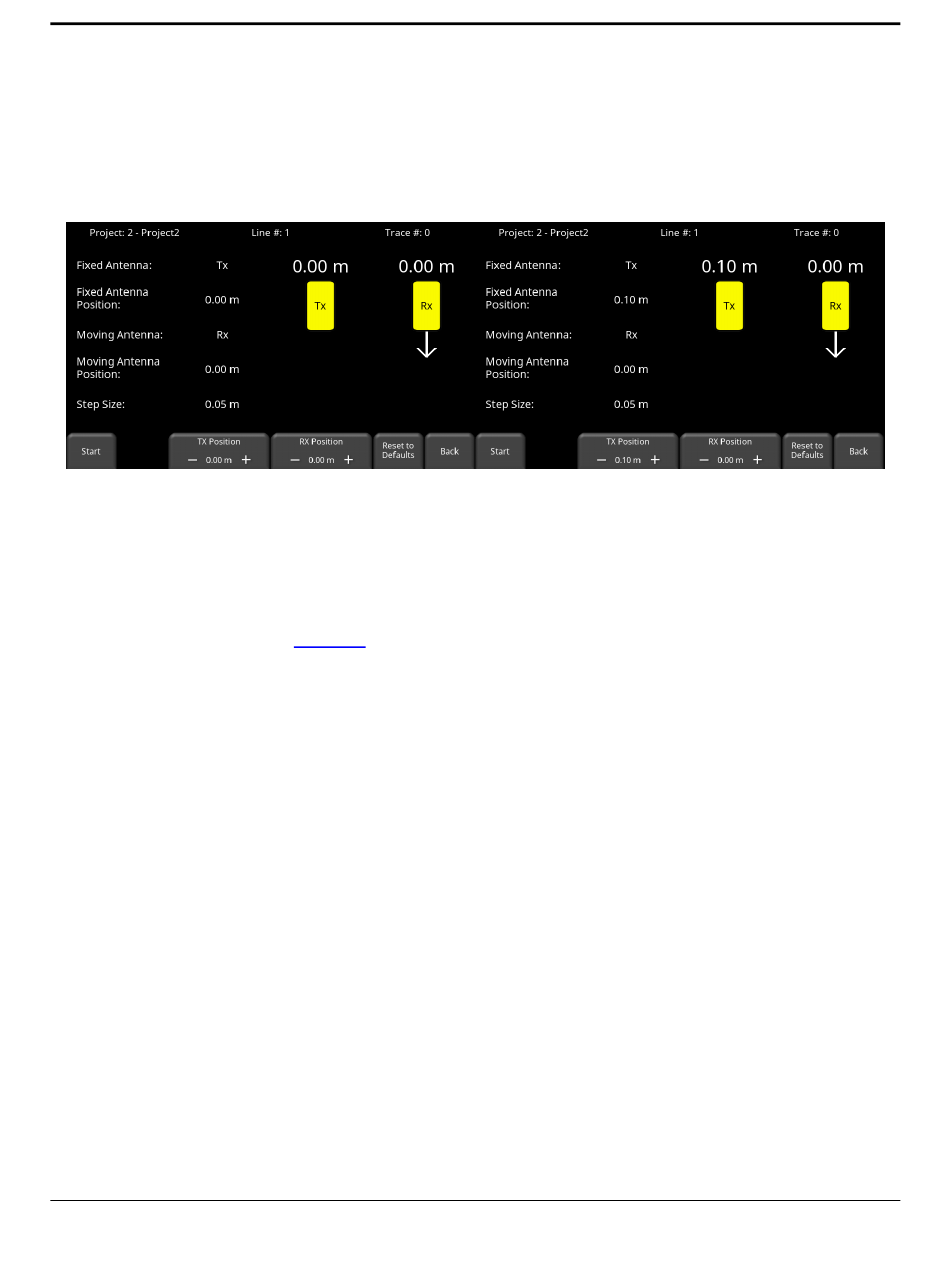

Figure 7-26: Start of Transillumination-MOG (left). After all receiver positions are collected, the transmitter is moved
0.1m (right), and the process repeated.
7.1.15 No Save Mode
From the Line Scan menu (Section 7.1), there is the option to collect data in No Save Mode. No
Save Mode means that data collected is NOT saved, but screenshots can still be taken with the
Camera button. These screen shots get placed in the currently selected project. No save
mode has exactly the same options as the regular data collection screen, with the following
difference:
There is no option for adding Interps in this mode, as the data is not being saved. However, you
do have the ability to draw arrows on the screen (Figure 7-27).
