7. Collecting Data
From the main menu, press Run System. This takes you to the screen shown in Figure 7-1.
Data is organized into Projects, numbered from 1 to 9. Projects can be given a custom name by
pressing the pencil icon beside the project name; this opens a keyboard where the user
can type in a name. The project will always be referenced by the number and name shown at
the bottom.

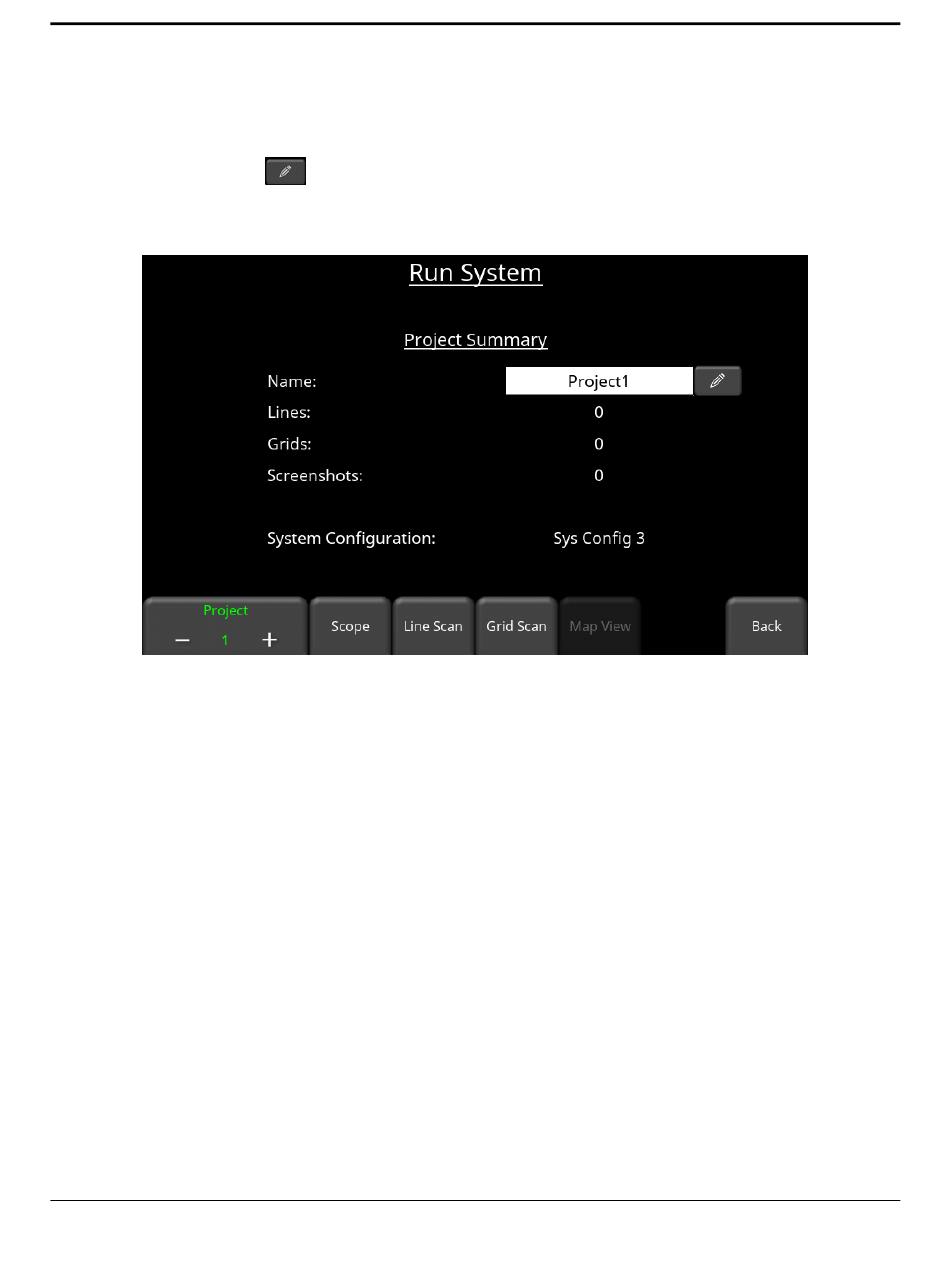

Figure 7-1: Preparing to collect data
The user has the option to collect Lines and/or Grids in a given project, depending on the survey
type selected. Grids can only be collected in reflection mode surveys. Line Scan and Grid
Scan operation are described below.
If no antenna or transducer is detected, you will see the screen in Figure 7-2. The only
difference is that the Scope button is replaced with a Turn On GPR button. Make sure antenna
or transducer is connected; if it's an antenna, make sure both the Transmitter and Receiver are
turned on.
