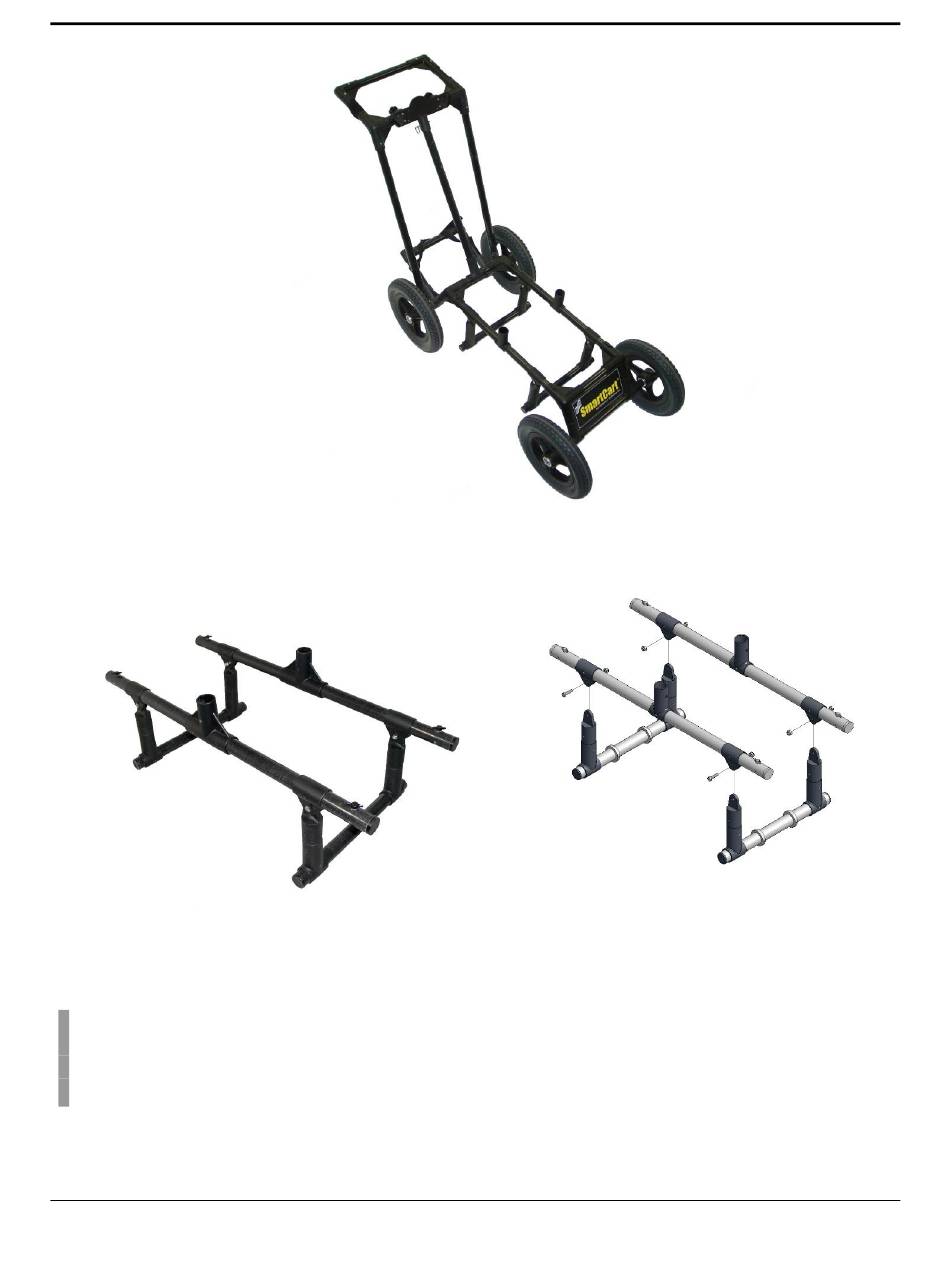

Each transducer pair has a unique set of separation bars to attach them to the SmartCart and
suspend it over the surface.
To attach the separation bars to the SmartCart tube frame, carefully align the screws so they go
in straight.
Note: Forcing the screws can strip the threads. If the holes are not aligned, the thumb screw
will bind after half a turn and damage the hole by cross-threading it. Forcing the thumb screw
to turn also causes damage. If you have damaged the insertion point, run a 10-32 tap
through the insert to re-tap the hole.
Use the Thumb Screws to attach the separation bars to the front and rear axle SmartCart
assemblies. Do not over-tighten.
