Assembling Full Configurations
3.3.3 Attaching a Wheel Odometer
pulseEKKO SmartTow allows you to use two different odometers for collecting data; generally,
operators use the Big Wheel Odometer in rough conditions and the Small Wheel Odometer in
flat, smooth areas.
Big Wheel Odometer

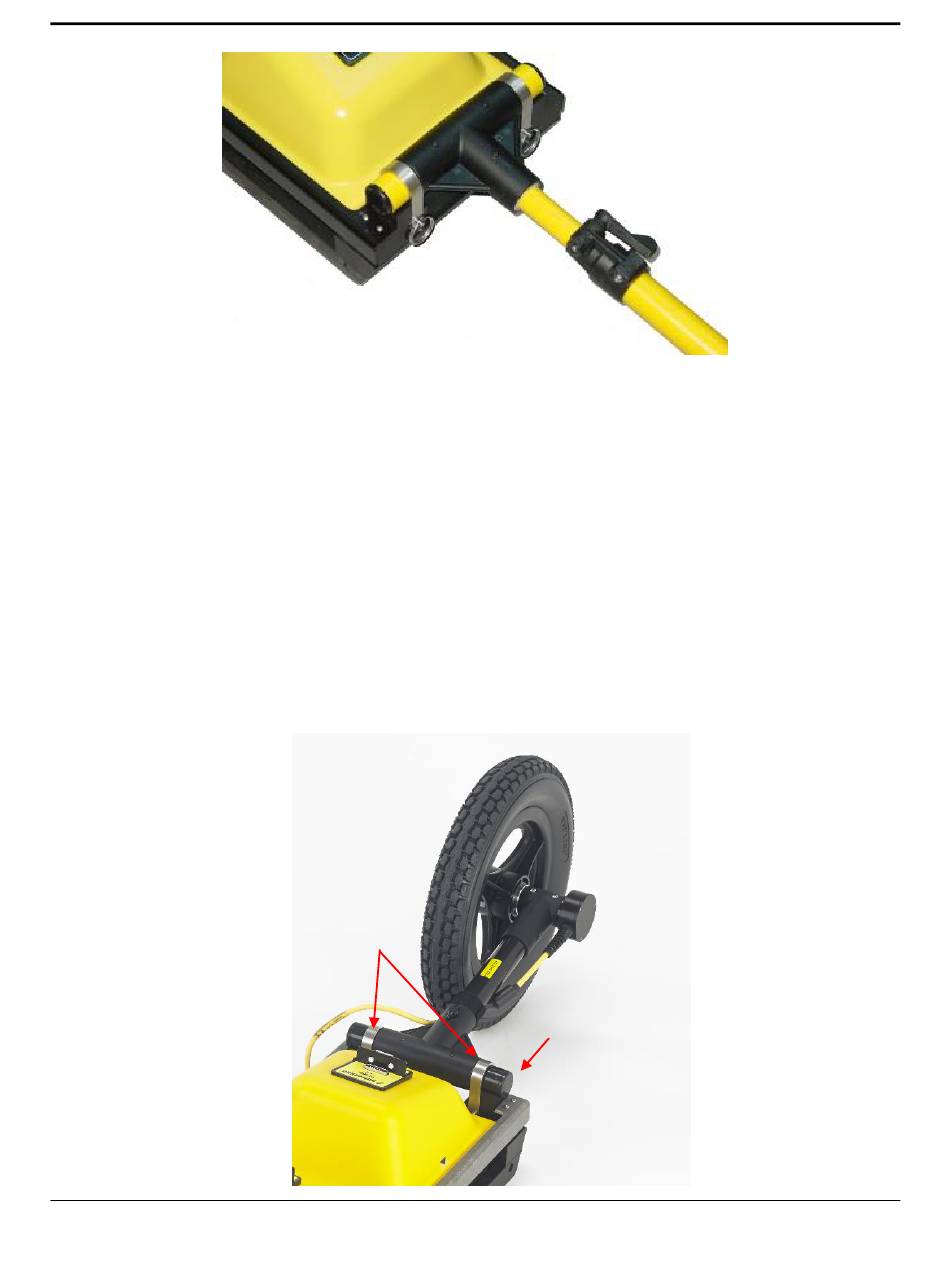

Attach the large odometer wheel to the end of the skid plate assembly. Look at the label on the
tube to ensure that it is installed in the correct orientation.
To attach the T-end of the odometer to the skid plate, place the U-bracket over top and into the
vertical slots. To secure the odometer, insert the metal pins into the holes at the bottom of the
U bracket. This is the same way the handle was secured (see above).
U-Brackets
Pin (not visible)
