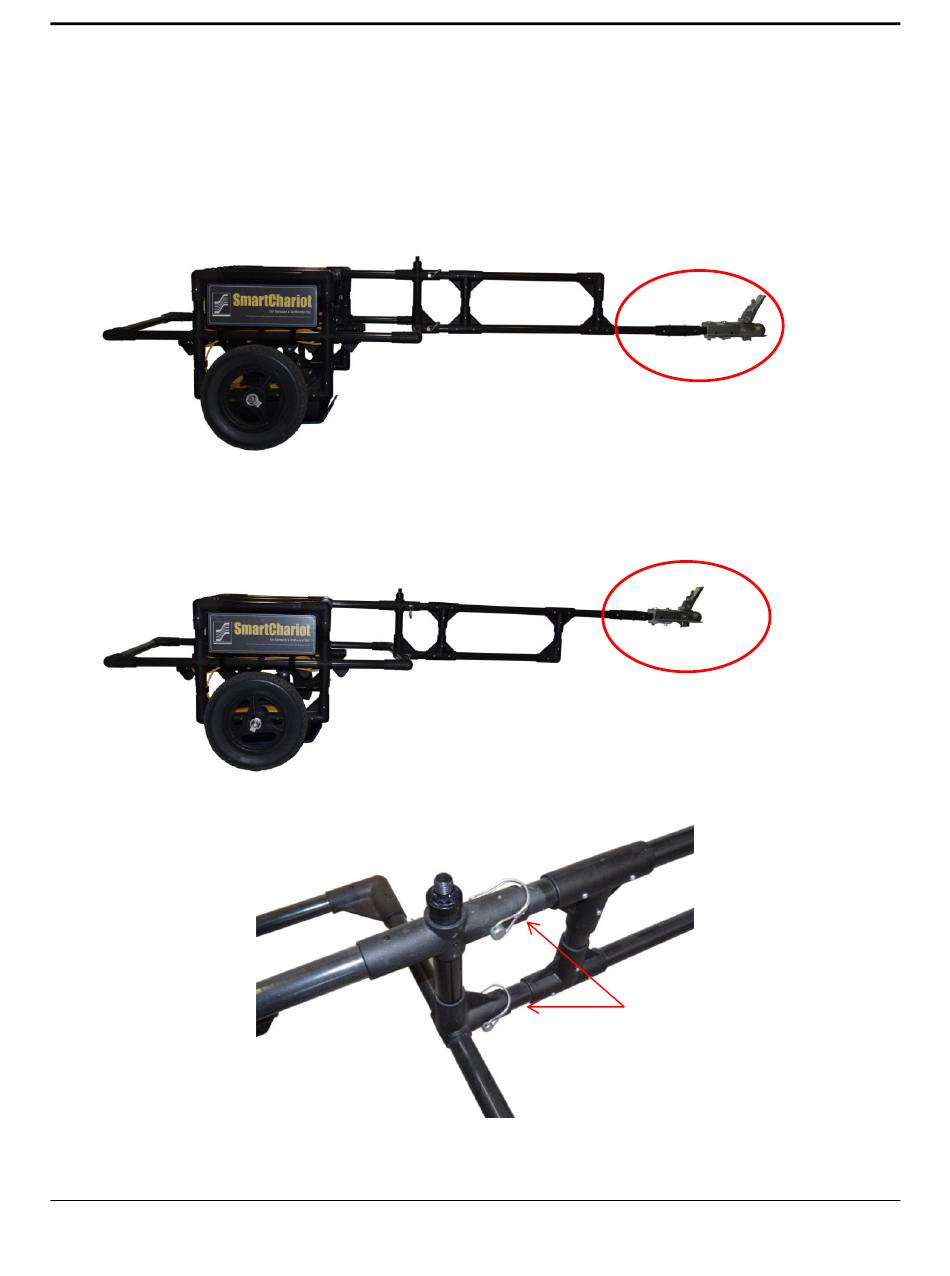

3.4.2 Attaching the SmartChariot Handle
Depending on the height of the ball hitch used on the tow vehicle, the SmartChariot Handle
Assembly can be installed in two different positions. Attach the handle assembly to the
SmartChariot so the GPR sensor is as level as possible.
Low Handle Position
High Handle Position
Attach the handle to the back of the SmartChariot using the two locking pins:
Locking
Pins
41
Assembling Full Configurations
