2. To attach the separation bars to the SmartCart tube frame, carefully align the screws so they
go in straight.
Note: Forcing the screws can strip the threads. If the holes are not aligned, the thumb screw
will bind after half a turn and damage the hole by cross-threading it. Forcing the thumb screw
to turn also causes damage. If you have damaged the insertion point, run a 10-32 tap
through the insert to re-tap the hole.

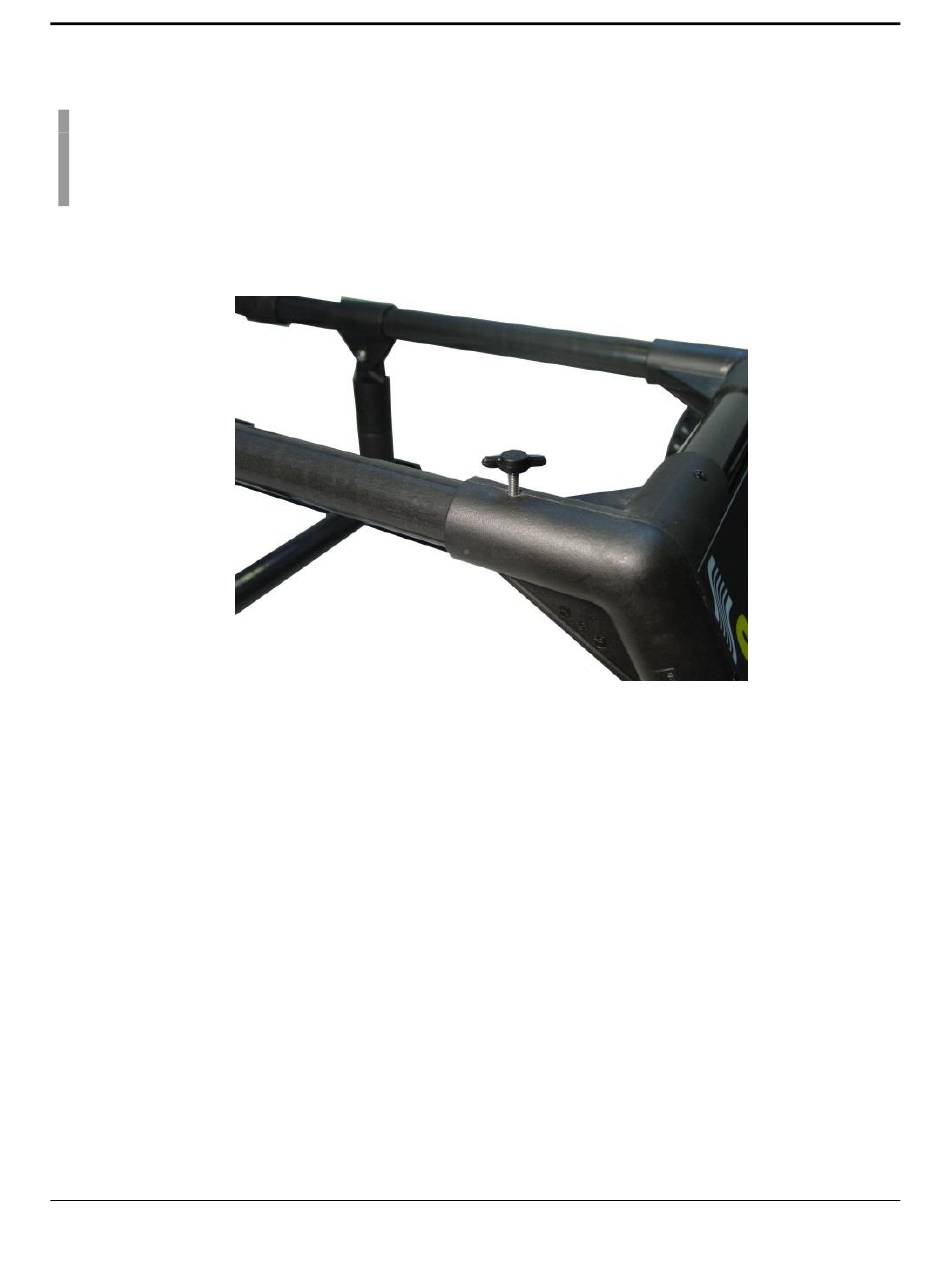

3. Use the Thumb Screws to attach the separation bars to the front and rear axle SmartCart
assemblies. Do not over-tighten.
3.2.4 Attaching the Antennas
If the antenna skid plates are not attached, now is the time to attach them. Use Velcro straps to
hold the antennas on the skid plate, as shown below. The skid plates are recommended for 50,
100 and 200 MHz antennas.
21
Assembling Full Configurations
