Slice View

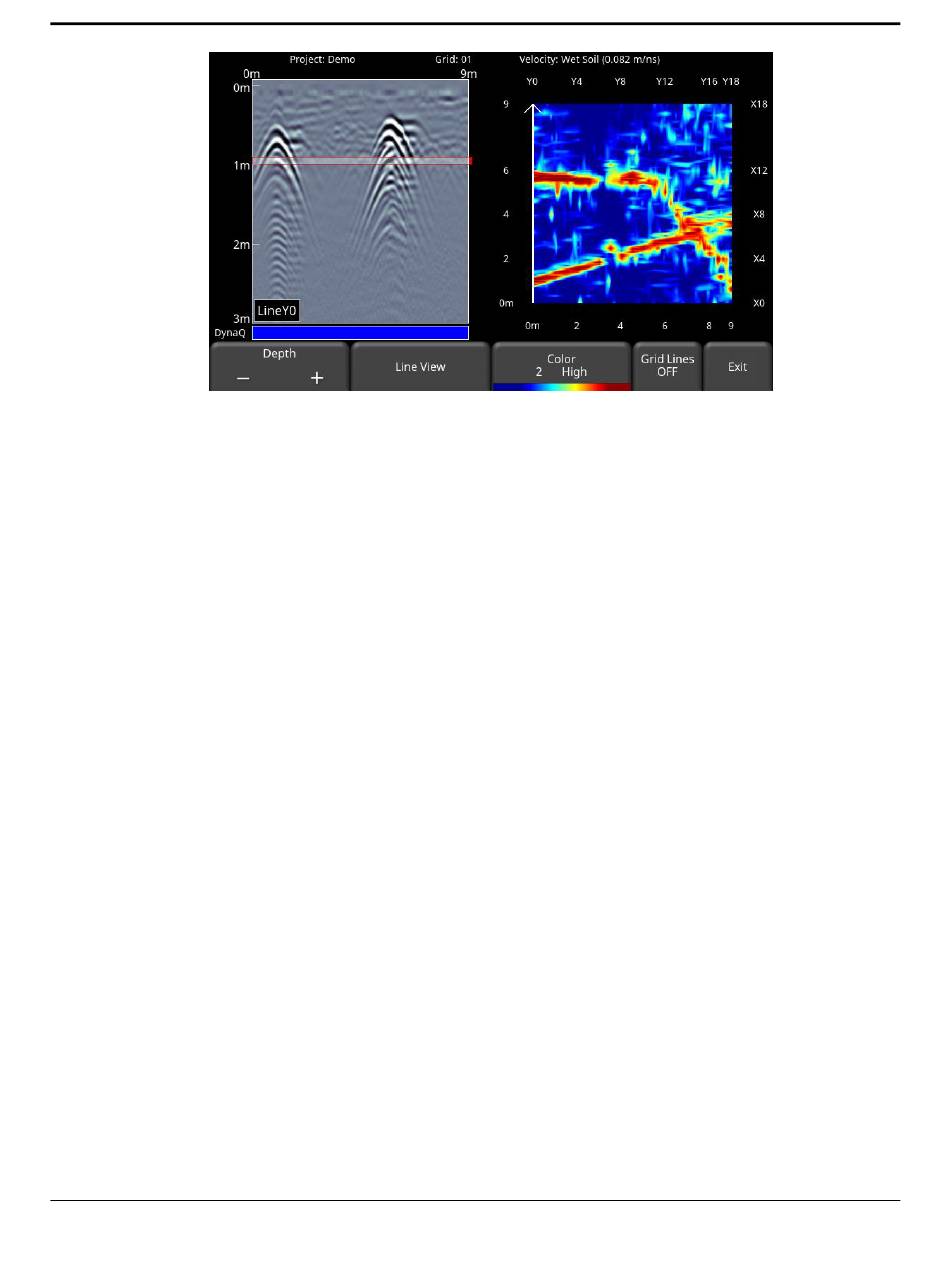

Figure 8-3: Varying the sensitivity, from top to bottom: Low, Medium and High settings. High shows more subtle
targets but may sometimes appear cluttered while the Low setting only displays the strongest targets so be cautious
when using it.

8.4 Grid Lines

Pressing this button overlays grid lines on the depth slice image, and cycles between ON,
PARTIAL or OFF. When set to ON, all the collected lines are displayed. When set to PARTIAL,
only some of the grid lines are displayed. This may be necessary for some larger grids as
having all the grid lines ON tends to obscure the image beneath (Figure 8-4). When set to OFF,
only the currently selected line is displayed. The currently selected line is always shown in
white.
