a) Remove the pin from the handle support arm.
b) Raise the handle support arm.
c) Raise the handle up, past the support arm and towards the back of the cart until the
handle support arm can be placed in the T-shaped tube.
d) Place open end of the T-shaped tube on the handle onto the end of the support arm
(Step 1)
e) To lock the handle into position, align the hole in the support arm with the hole in the T-
shaped tube. Insert the handle pin (Step 2)
Note: When folding the SmartCart back up, fold the handle down before folding the
handle support arm.
3.2.2
Attaching Wheels
SmartCarts are shipped with the wheels attached. If your wheels arrive un-attached or have
been removed for maintenance or cleaning, complete the following procedure to attach them to
your SmartCart:
•
Press the button on the end of the wheel axle to unlock the axle catches.
•
Insert the axle through the wheel and into the SmartCart frame until it locks into position.
•

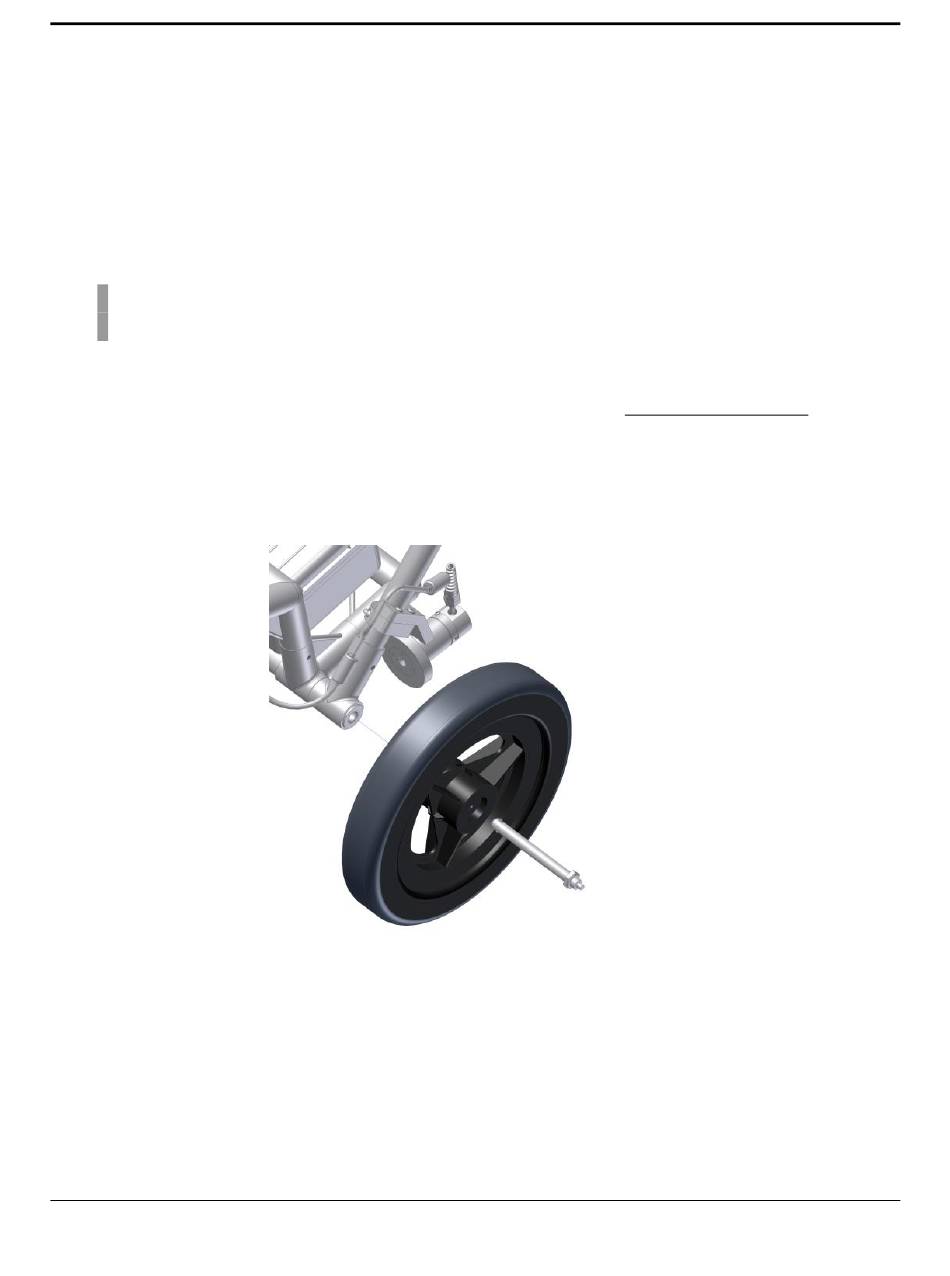

Make sure the odometer wheel makes good contact with the side of the wheel (see
figure below). The odometer wheel is the one which has a "scuffed" inside rim, to reduce
wheel slippage in wet conditions.
