2.1.2 Latching the Transmitter & Receiver to the Antenna Mounting
Blocks

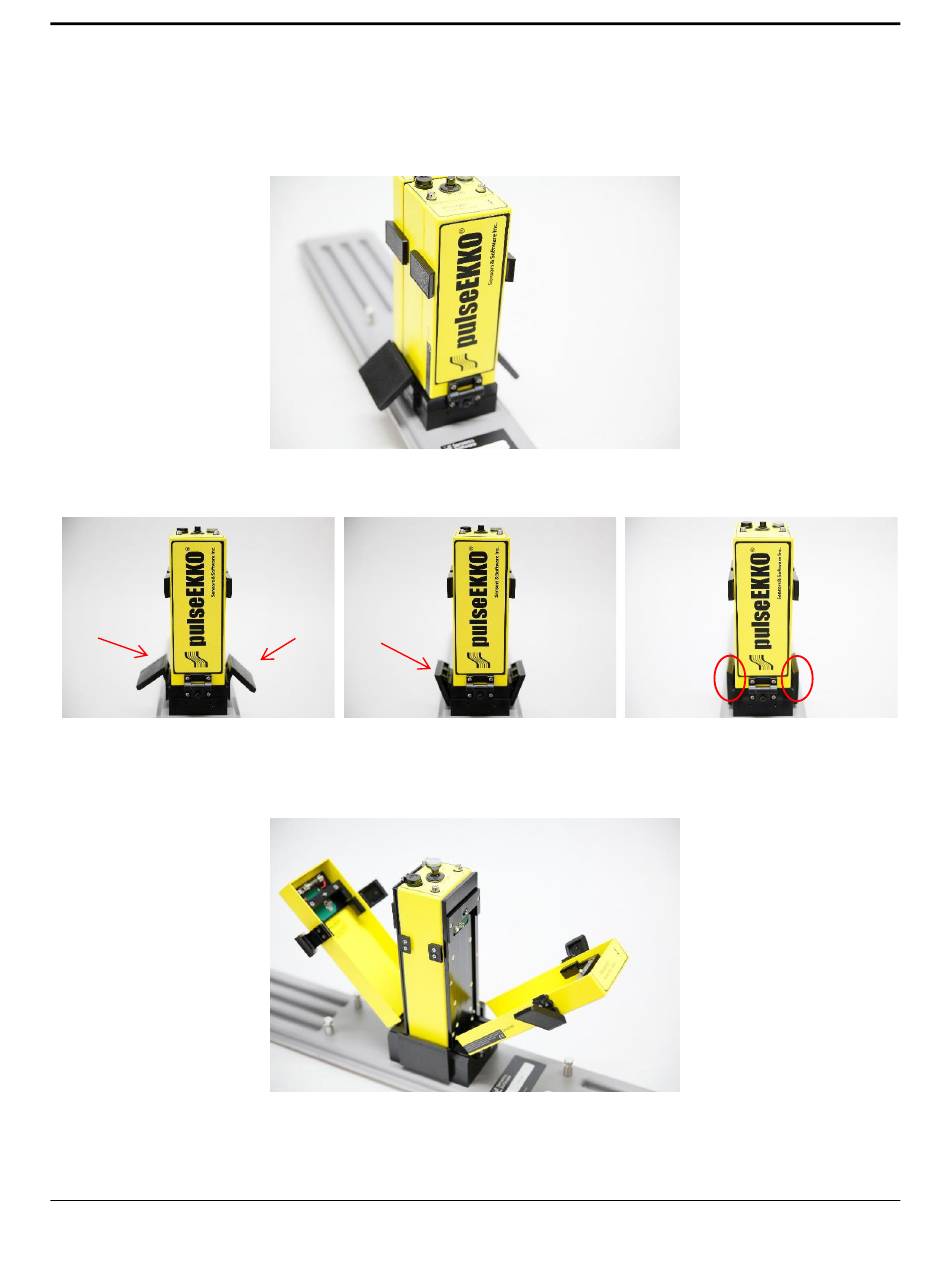

Place the transmitter and receiver electronic boxes onto the black mounting blocks in the middle
of the antennas, ensuring the brass sockets connect to the brass pins in the antenna.
Connect the electronics boxes to the mounting block using the two plastic draw latch
connectors.
2.1.3 Inserting batteries into the Transmitter & Receiver
Unlatch and then open the two battery covers on the sides of the transmitter and receiver.
Place one 12-volt battery on each side of each of the electronics boxes. Make sure the positive
(+) terminal faces inward toward the electronics.
