Face the labels on the transmitting transducer toward the odometer wheel. Secure the cable to
the T-bar with Velcro straps.

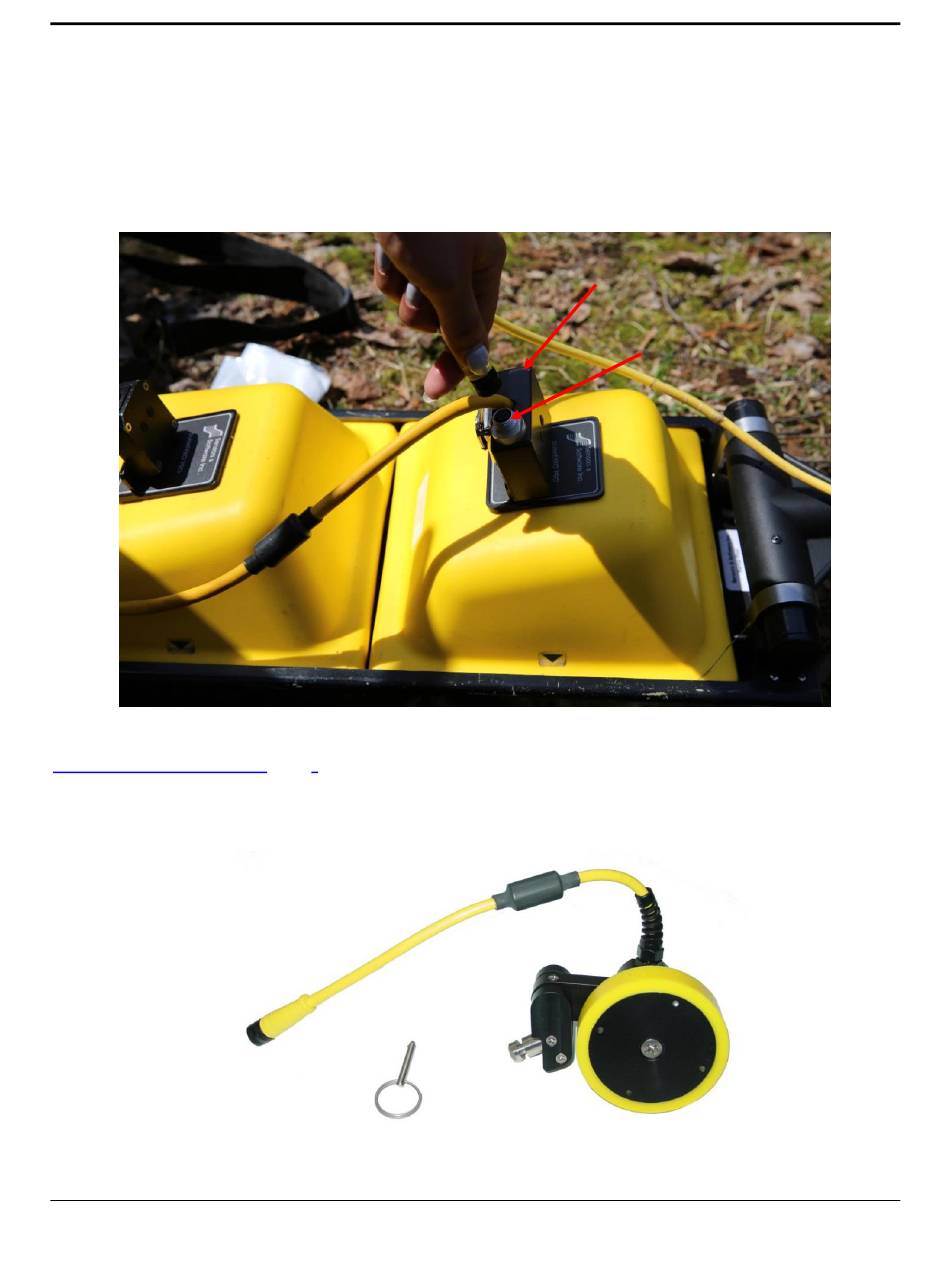

Connect the yellow odometer cable to the receptacle on the transducer cable. You can also
connect the odometer cable to the back of the DVL, but you will need an odometer extension
cable; this is not recommended as the cables now need to run a longer distance, near the
antennas.
Loop the odometer cable so it does not interfere with the rotation of the odometer wheel.
Calibrate the odometer (5.2.2)
Small Wheel Odometer
to ensure accurate data images.
36
Assembling Full Configurations
Odometer cable
Receptacle on
Transducer cable
