5-SmartCart Configuration Assembly

5 SmartCart Configuration Assembly
The SmartCart can be configured for operation with all Noggins (100, 250, 500 and 1000).
The fully-assembled Noggin 250 in the SmartCart configuration is shown in Figure 5-1. The
system is shown in field operation in Figure 5-2. Follow the directions below to assemble the
configuration.

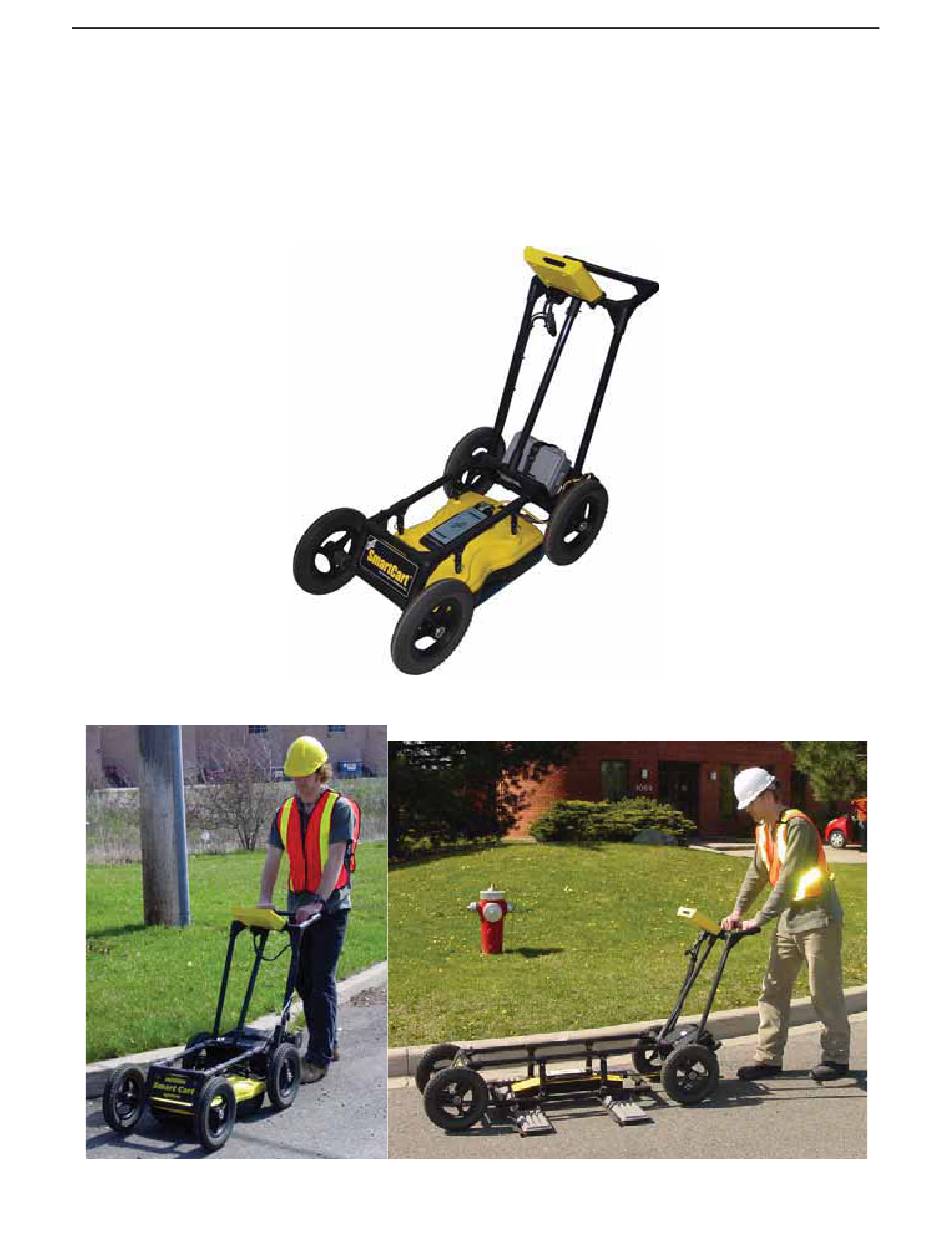

Figure: 5-1 Fully assembled SmartCart with a Noggin 250.
Figure: 5-2 Noggin 250 SmartCart (left) and Noggin 100 SmartCart (right) in operation.
