High Frequency Transducers - Sensors & Software pulseEKKO Product Manual

Assembly
Fibre optic converter
To connect fibre optic cables, see section on Connecting Fibre Optic Cables (3.6.2).

2.2 High Frequency Transducers

2.2.1 Bistatic Transducer Assembly

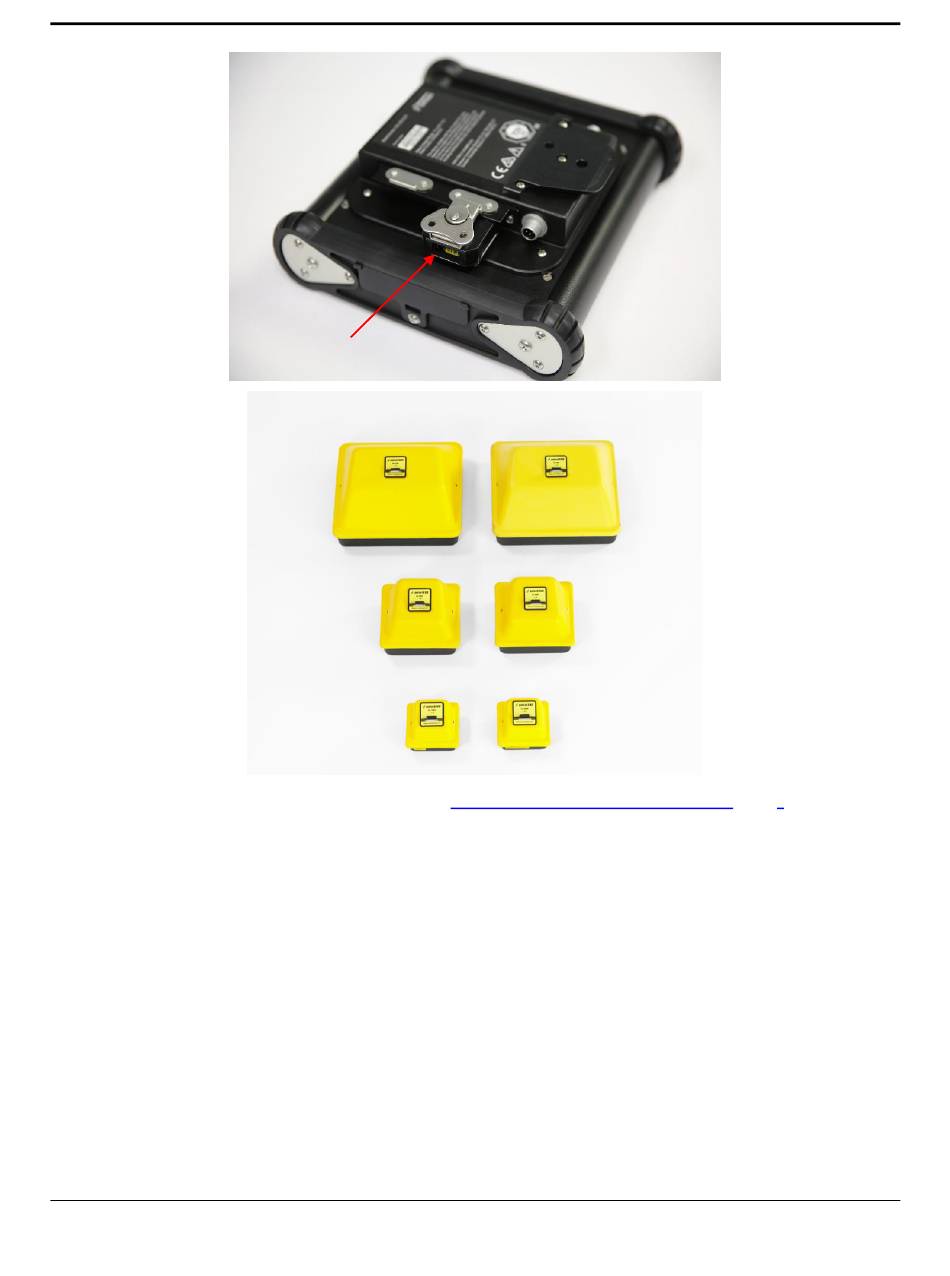

pulseEKKO can use three high frequency, shielded, bistatic antennas: 250, 500, and 1000 MHz.
Each component is a transducer because it consists of both an antenna and either the
transmitter or receiver electronics. The transmitting transducer is indicated by Tx, e.g. Tx500,
while the receiving transducer is indicated by Rx, e.g. Rx500.
