Note: The assembly kit comes with extra end pieces so both SmartCart and SmartTow
configurations can be assembled; as a result, there will be extra pieces after assembly.

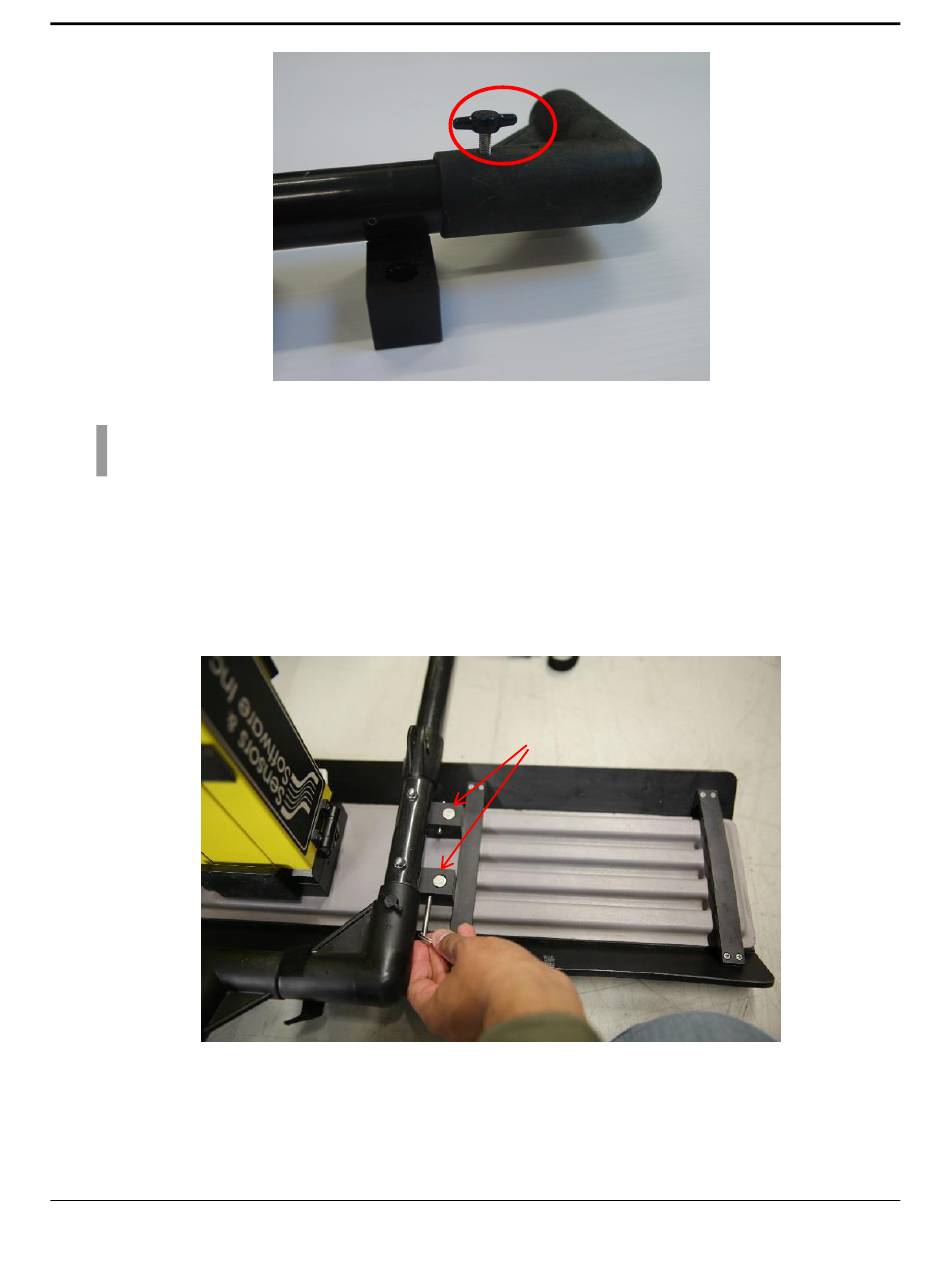

To connect the antennas to the Tow frame:
3. Place the SmartTow frame over the antennas.
4. Align and then insert the eight antenna post blocks on the frame into the antenna
mounting posts on the antennas.
5. Secure the SmartTow frame to the antennas by inserting the pins into the eight post
blocks.
6. One Person Operation: Route the odometer cable along the frame and up the handle.
Keep the cable away from the electronics and antennas. Secure the cable to the frame
Antenna Mounting Posts
31
Assembling Full Configurations
