Slice View

8.1 Depth

Pressing the + and - buttons on the Depth button will increase or decrease the depth of the
depth slice currently displayed. You can also touch and drag the depth slice indicator on the
line scan image. This allows the user to "slice through" the ground, and locate features that
appear at different depths. It is recommended that the user go through all slices and try to
correlate features with the line scans images on the left to ensure that they didn't miss anything.
You can only slice down to the zoomed depth range displayed in Line View. Increasing the
depth range in Line View will recalculate and re-process the depth slices.

8.2 Line View

Pressing the Line View button displays the currently selected GPR line as a full screen image.
All the functionality of Line Scan (such as Zoom, Color, Filter, Gain, Velocity and Interps) are
available here (Figure 8-2). Use the 4-way directional keypad to change to a different line.

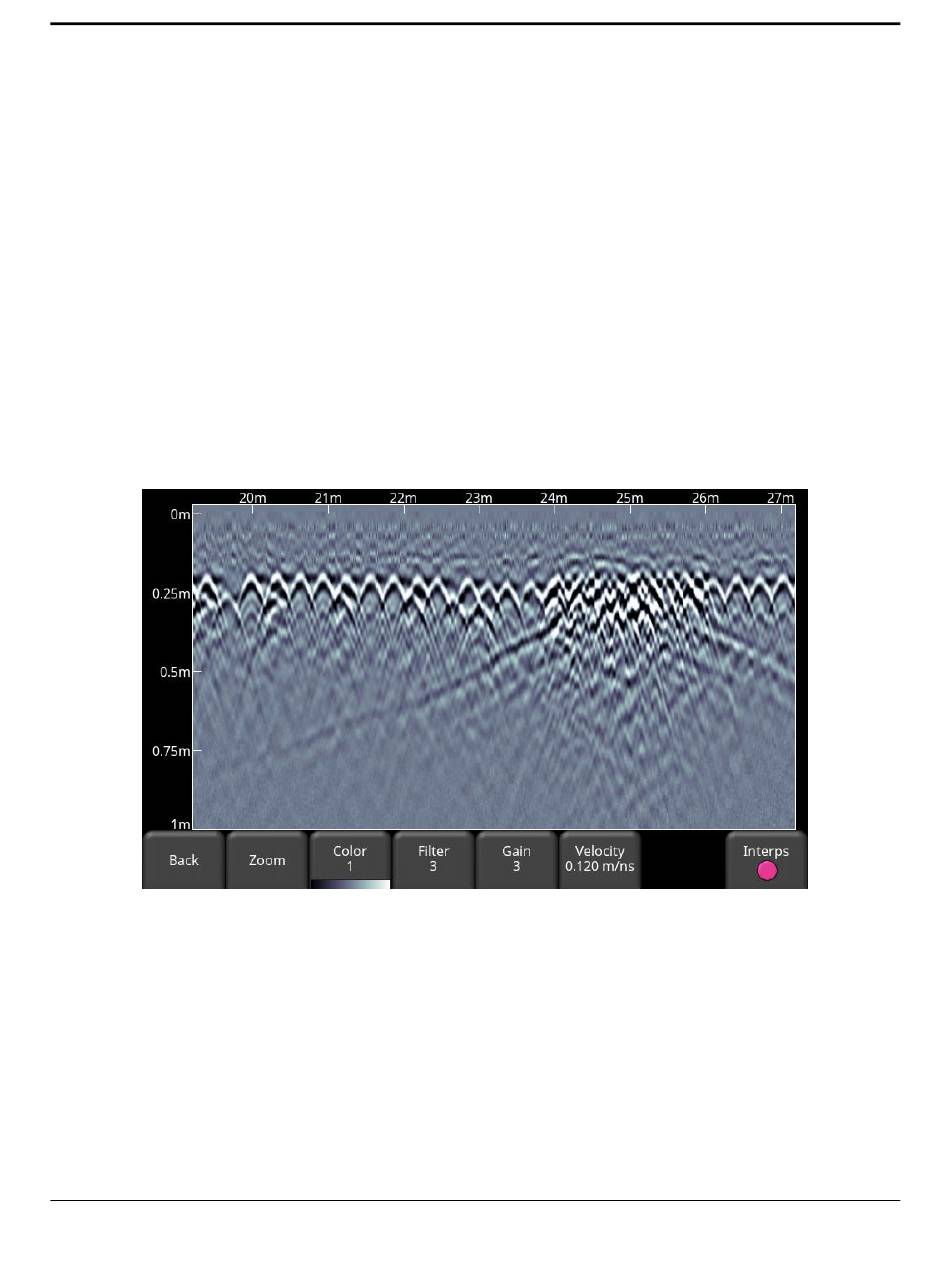

Figure 8-2: Changing Line View settings from within Slice View
Press Back to return to Slice View. Any changes made are reflected on the GPR line in Slice
View mode. For example, if you change the zoom depth in Line View, the lines and depth slices
in Slice View use the new depth setting. If you change the velocity, this causes the depth slices
to be re-processed.
Users may want to change the display settings to make it easier to correlate line scan data with
depth slices.
