Collecting Data

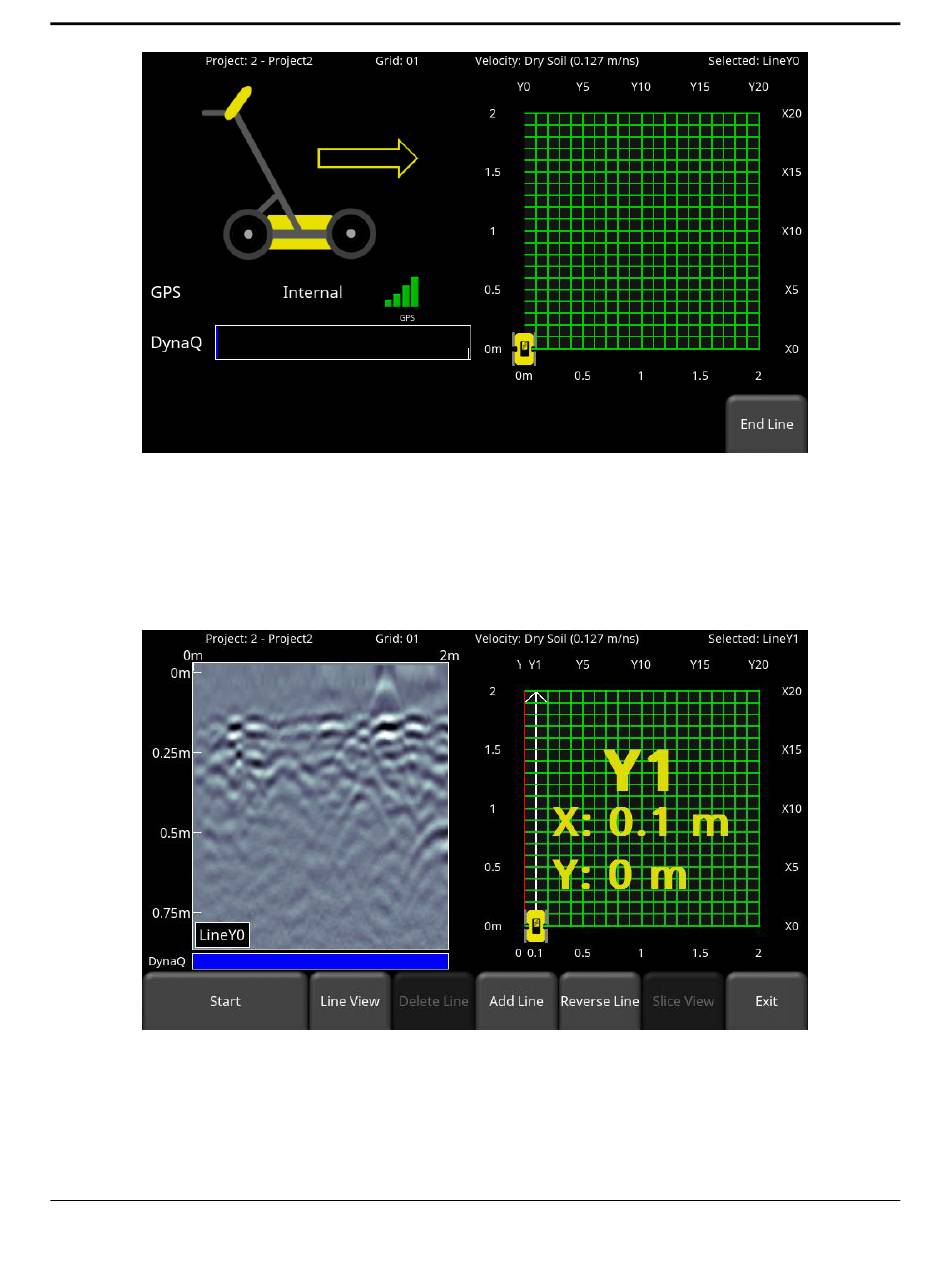

Figure 7-37: Collecting a line in the grid
Once the line is collected, the Grid Line will turn red and the system will beep twice and the
cross-section will be shown on the left. The grid image on the right will show the next line to be
collected, in white. The remaining lines to be collected are shown in green (Figure 7-38).
Figure 7-38: After first line has been collected
Move to the start of the next line and repeat the process. The grid image will always display the
line number (e.g. Y1) and the position of your line, relative to your origin. Once all the lines are
done in one direction, it will automatically prompt you to collect lines in the other direction.
