Collecting Data

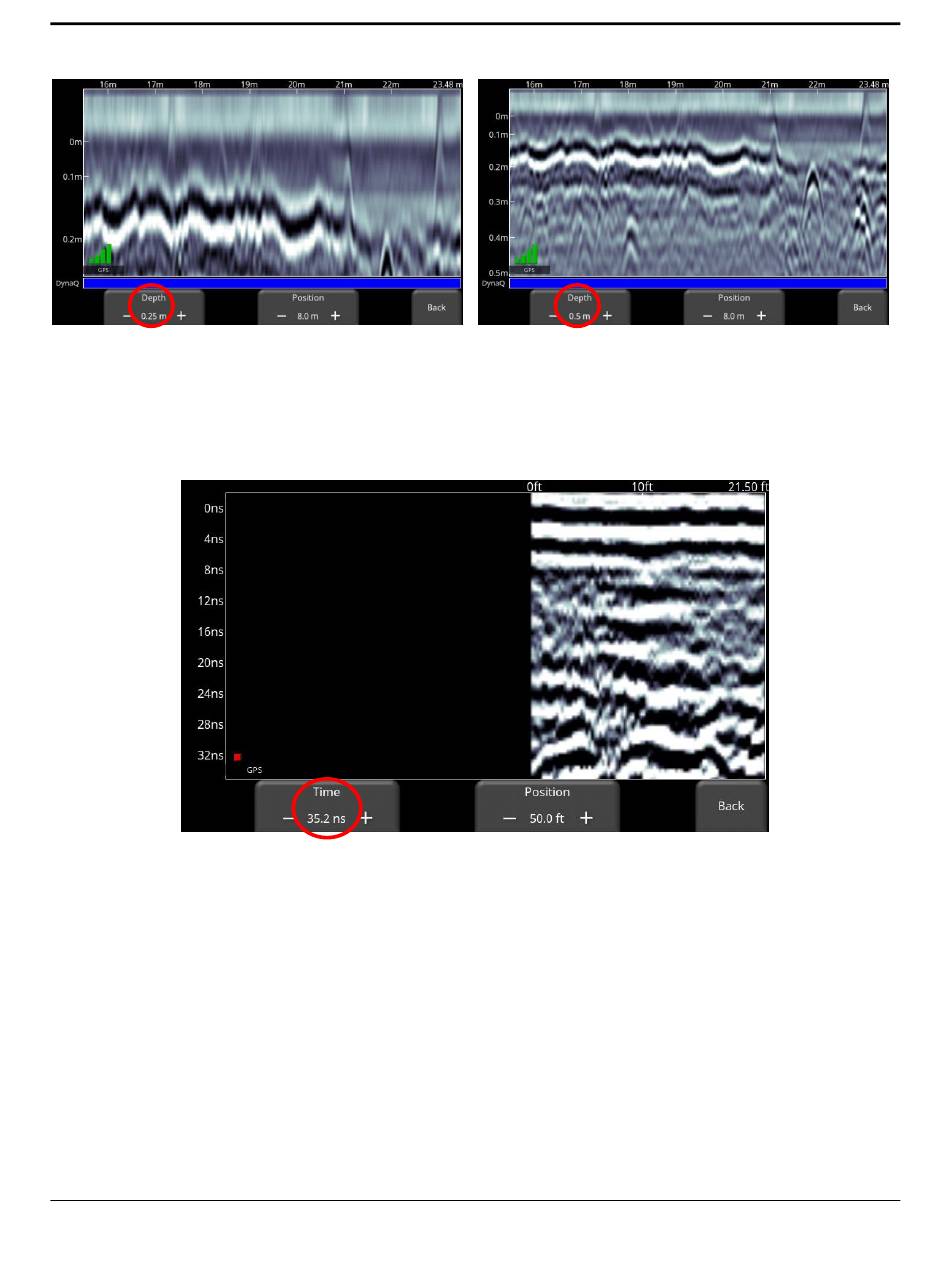

Figure 7-10: Changing the displayed depth
Time – if the user changes the vertical axis to show time (in nanoseconds), then the
screen will appear like Figure 7-11, where pressing the + and – buttons under Time will
allow them to change the displayed time window.
Figure 7-11: Changing the displayed time
•
Position – Pressing + and - under the Position button allows you to change the length
of data display on a single screen. This is also known as horizontal scaling. One reason
for setting this higher would be to fit more data on the screen and look for consistency
among hyperbolas that were crossed (Figure 7-12).
