System Configuration

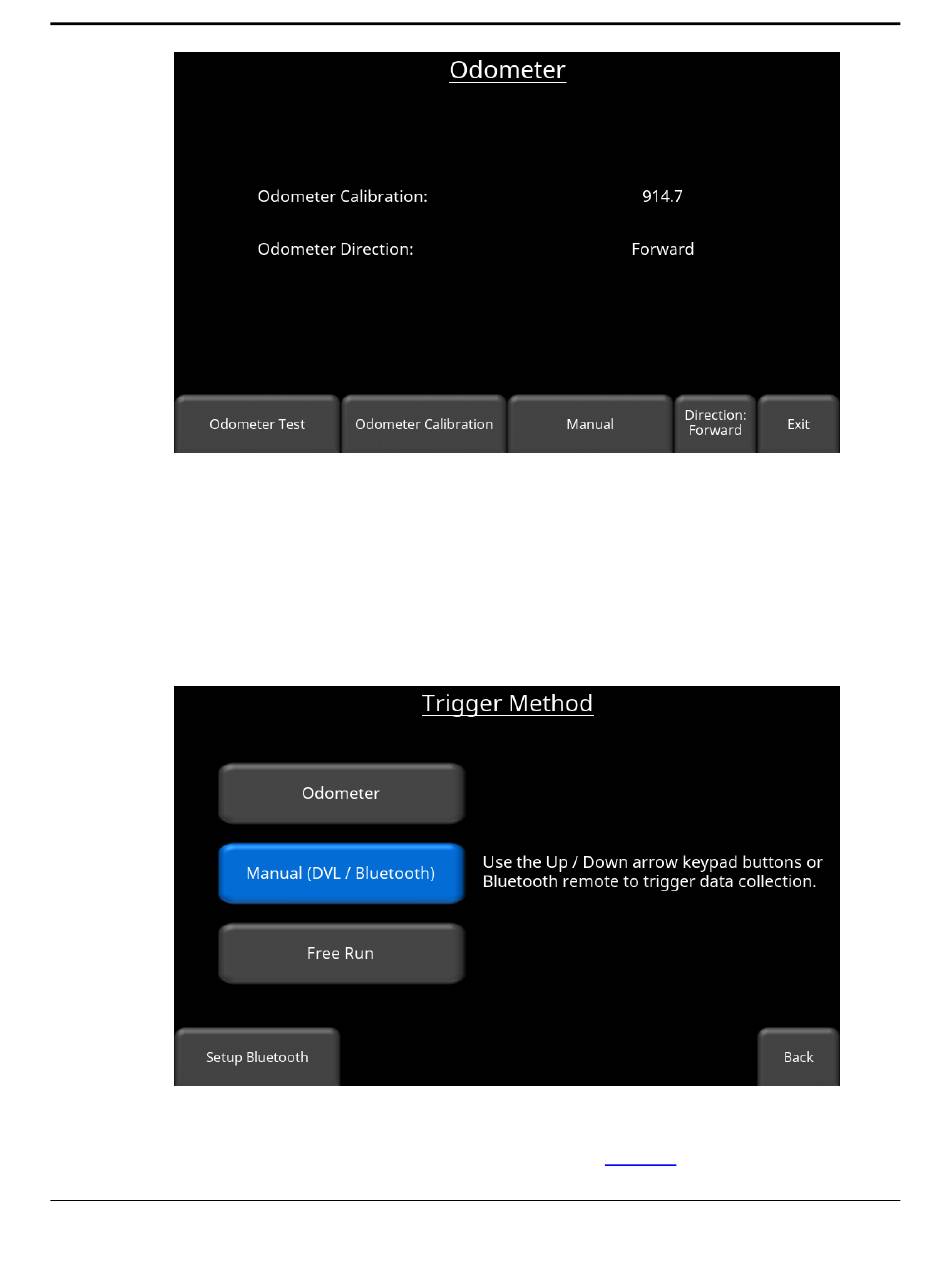

Figure 6-17: Edit Odometer screen
•
Manual (DVL/Bluetooth) – This is typically used when surveying in difficult terrain
where antennas cannot be moved easily or at regular time intervals. For the position of
each measurement point, the system assumes the operator has moved the antennas
one step size along the survey line.
When this option is selected, the user can trigger the system either with a Bluetooth
remote by pressing the Up or Down button on the 4-way keypad (Figure 6-18).
Figure 6-18: Selecting the Manual Trigger
Pressing Setup Bluetooth will take you to the menu in Section 5.1.7 where you can
connect and test a Bluetooth device.
