Grids – Toggles Grid Scans On or OFF.
•
Labels – Toggles Line and Grid labels ON or OFF
When the Measure button is pressed, it is highlighted in blue. During this time, you can touch
the screen and drag your finger a certain distance to get a measurement value for that distance
(yellow line pointed at by the white arrow in Figure 9-4). The distance value is displayed in the
top right corner. Pressing the Measure button again exits from Measure mode and removes the
yellow measured line and the measured value.

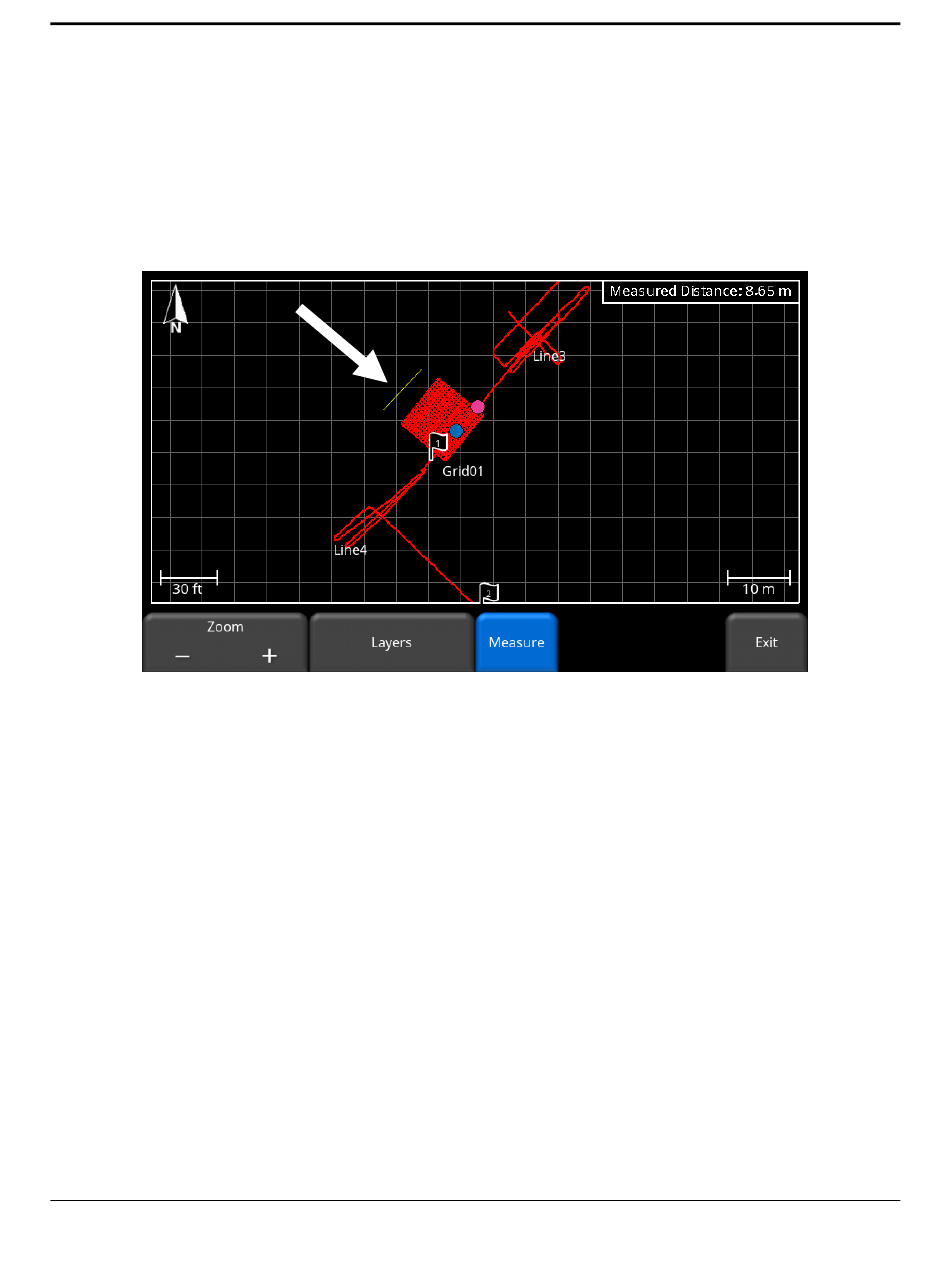

Figure 9-4: The white arrow points to the measure line. The measured distance is shown in the top right corner.
