Getting Started

4.2 Powering up the DVL

NOTE: If you are using Low Frequency antennas, it is recommended that you power on the
Transmitter and Receiver prior to turning on the DVL.
Make sure the power cable is plugged into the back of the DVL (Figure 4-2).
Power
Cable

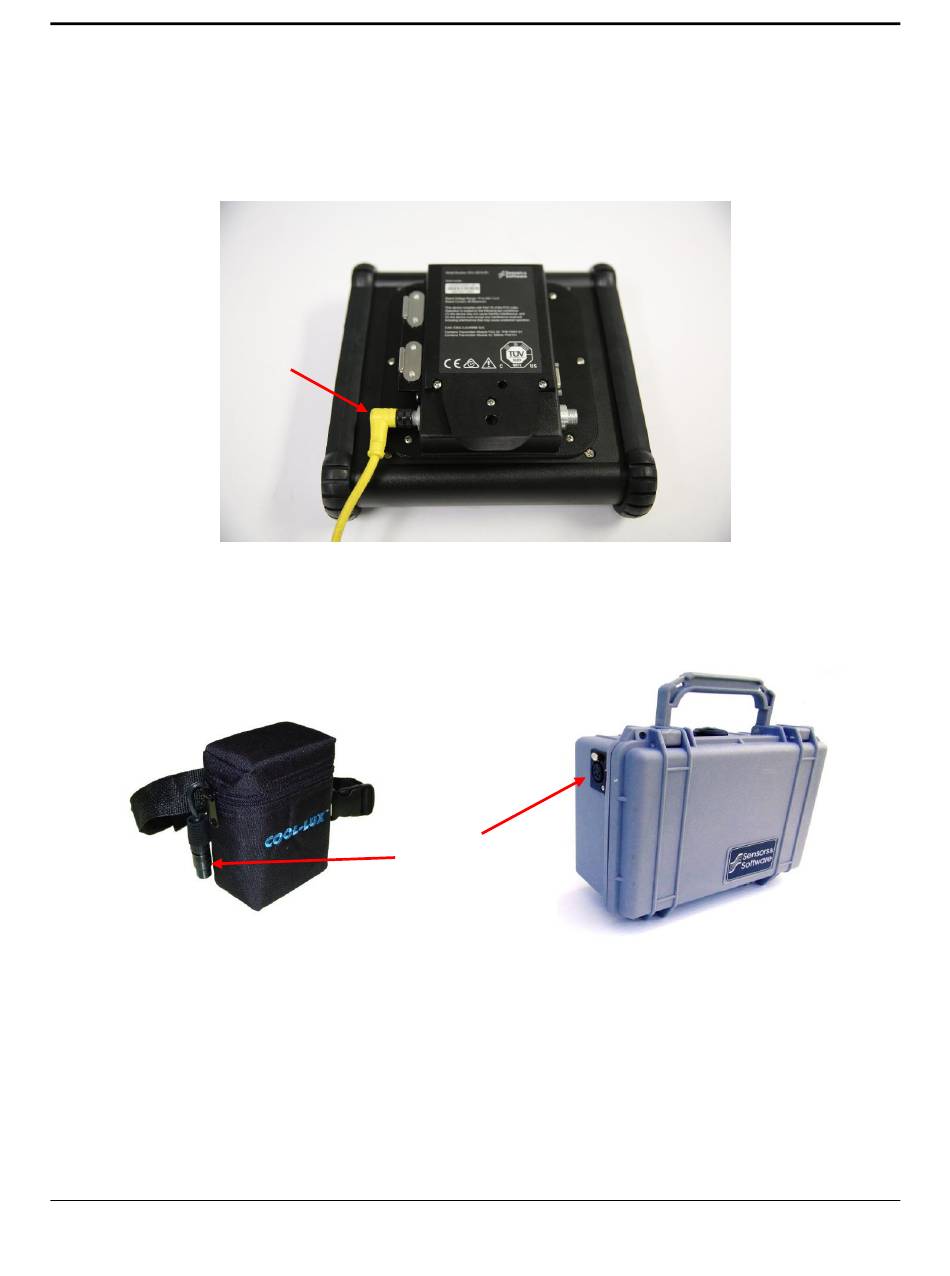

Figure 4-2: Connecting power cable into back of DVL
Connect the other end of the cable to a 12 volt power source; typically this is either the large
battery or the belt battery, pictured in Figure 4-3.
Power cable
receptacle
Figure 4-3: Belt battery (left) and Large battery (right).
Connect the round four-pin power cable to the receptacle on the side of the battery (Figure 4-4).
When the battery is first plugged in, the LED light turns green for 5 seconds then turns off.
