Collecting Data

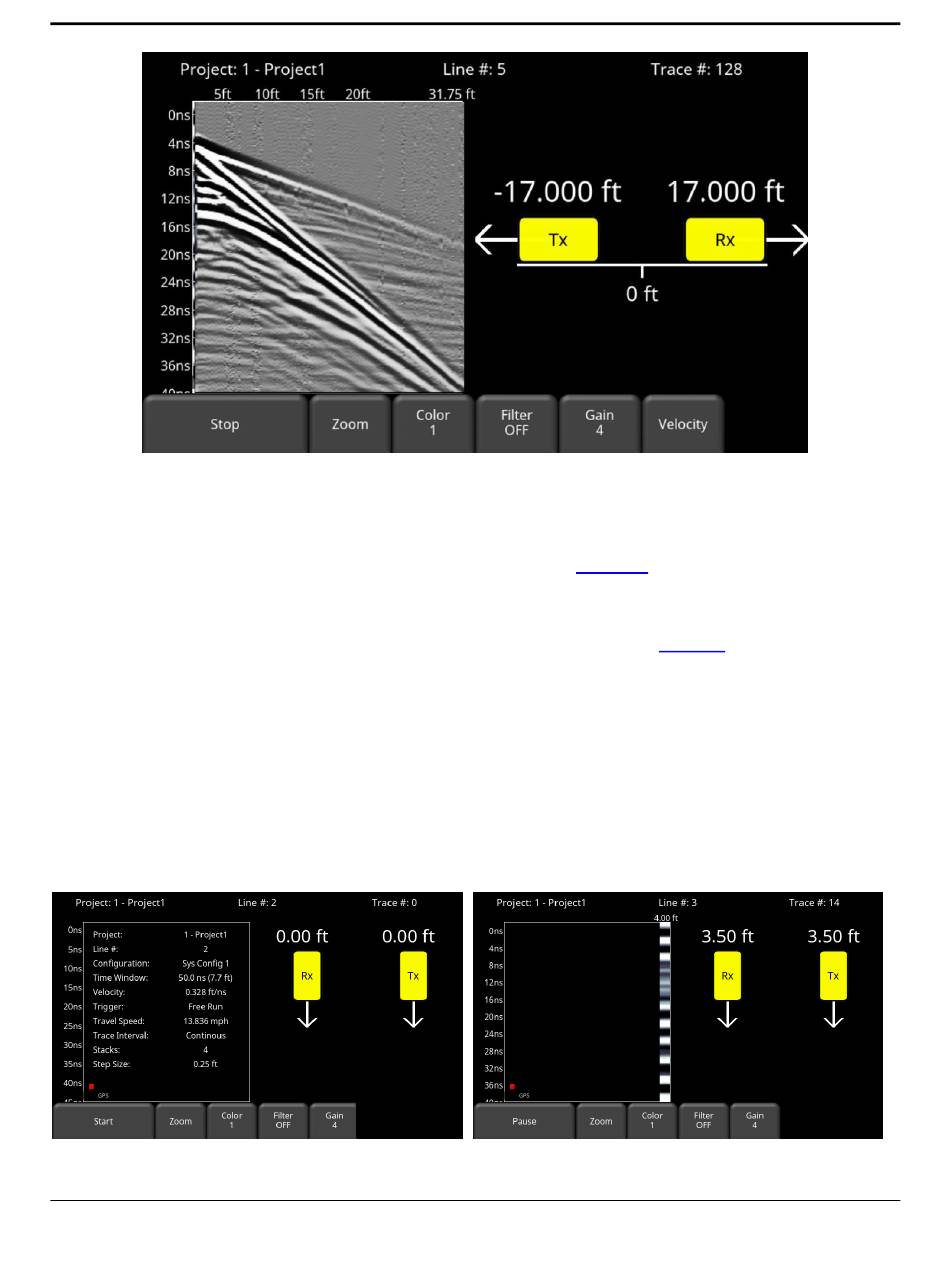

Figure 7-24: Collected CMP data
The process for WARR will be the same, except that one of the antennas is in a fixed position.
To properly set up the parameters for a WARR survey, see Section 6.2.1.
7.1.14 Collecting Data in Transillumination
To properly set up the parameters for a transillumination survey, see Section 6.2.1.
In the data acquisition screen, the parameters for the data collection are initially displayed in the
left of the window. The right side of the window displays a graphic showing the initial position of
the antennas (Figure 7-25,left). In this example, a Zero Offset Profile (ZOP) is shown.
Press Start to begin data collection. As you collect data, the new positions of the transmitting
and receiving antennas are shown. For transillumination surveys, Velocity and Interps are not
available.
Figure 7-25: Start of Transillumination survey-ZOP (left); after collecting some data, showing antenna positions (right)
