If the odometer contact with the wheel is too loose, the odometer wheel may slip resulting in
incorrect position measurements. If the odometer wheel seems loose:
1. Use a ¼ inch Allen (hexagonal) wrench to loosen the screws on the side of the
odometer.
2. Pivot the entire odometer assembly until the small odometer wheel makes good contact
with the side of the cart wheel.
3. Tighten the screws to lock the odometer wheel in this position.
4. Tighten the 1/16 inch set screw into the fibreglass tubing to prevent the odometer from
rotating from this position.
It is always a good idea to
•
recalibrate the odometer (5.2.2)

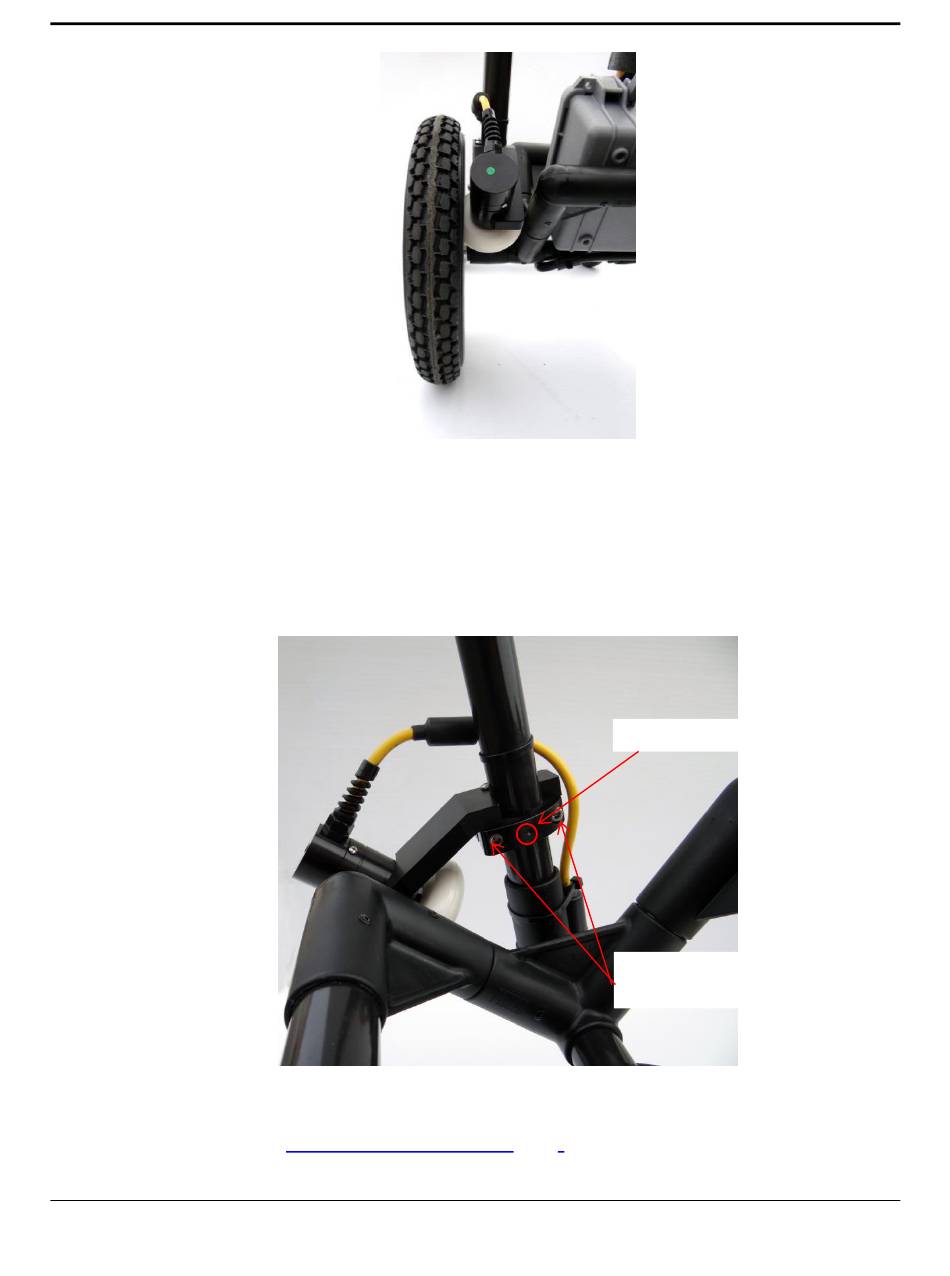

1/16 inch set screw
Tighten the screws to lock the
odometer wheel in this position
whenever this adjustment is made.
