Secure the cables to the cart using Velcro strips or electrical tape. Complete all transducer
cable connections as described in the section
Calibrate the odometer (5.2.2)
Connecting Transducer Cables
calibration to ensure accurate data images.
38
Assembling Full Configurations

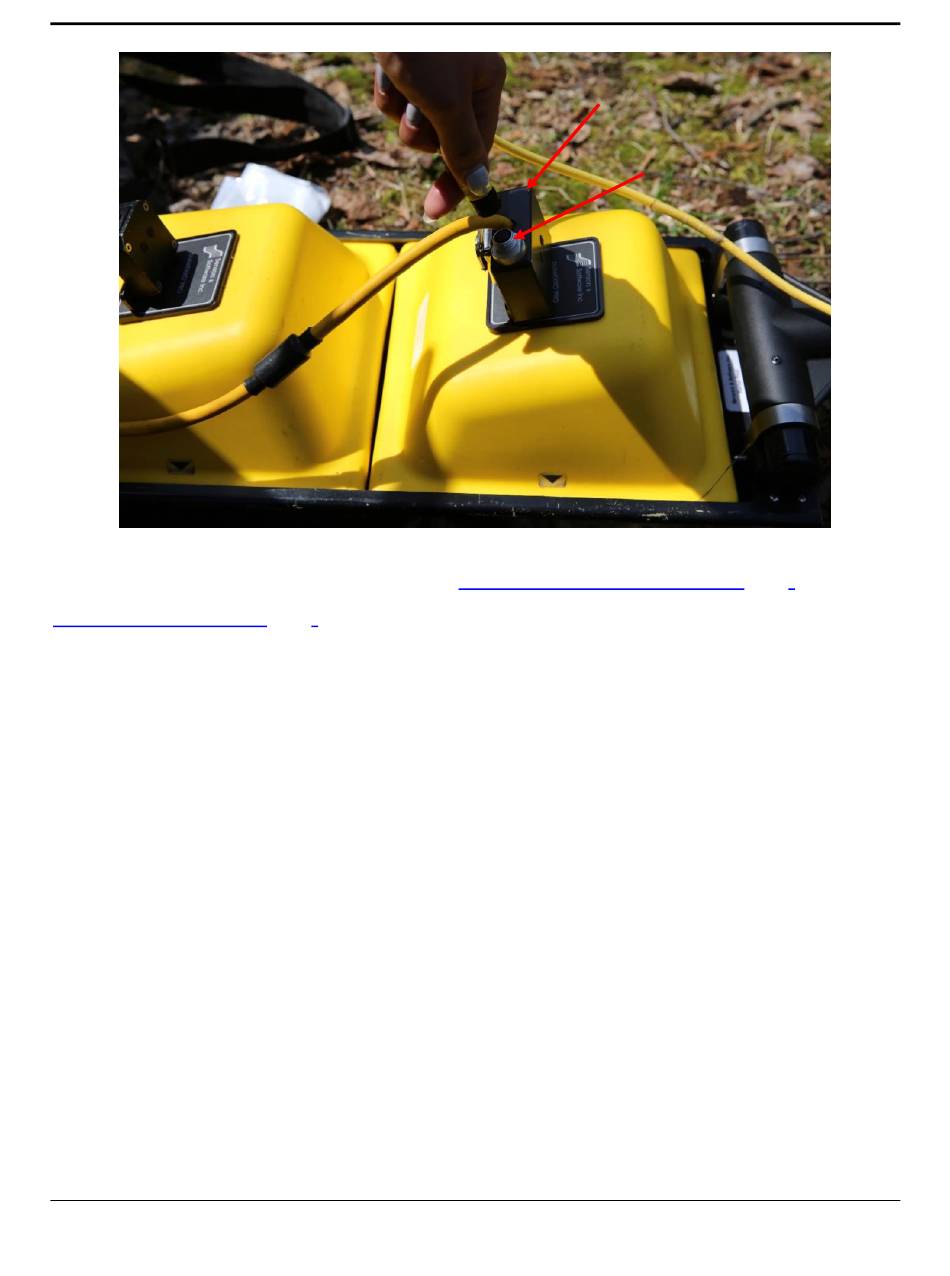

Odometer cable
Receptacle on
Transducer cable
(3.6.3).
