5.3 File Management

From the main Tools menu shown in Figure 5-2, press File Management to enter this sub-
menu. From here, the user can view screenshots, access MapView, delete projects and export
data (Figure 5-43).
A summary of each project is given in the middle column, showing Grids, Lines and
Screenshots for that project. The column on the right shows the total saved Grids, Lines and
Screenshots for the whole system.
The current disk space used is shown, expressed as a percentage of total disk space available.
When the user is about to collect a line (either in line scan or grid scan) which will push the disk
usage over 90% a warning message is displayed. This will happen again at the 95% threshold.
The warning message is only given once for each threshold crossing.
A description of each of the buttons is given below:
5.3.1 Project
Pressing the + and – buttons cycles between Projects 1 to 9, along with the Demo project
(which contains demo data). Projects that contain data are in red, whereas Projects with no
data are in white.
5.3.2 Screenshot Gallery
Pressing Screenshot Gallery allows the user to view all screenshots that were saved to that
project by pressing the Camera button during data collection (this is explained in
The display will show a Tile View of a maximum of four screenshots per page (Figure 5-44). If

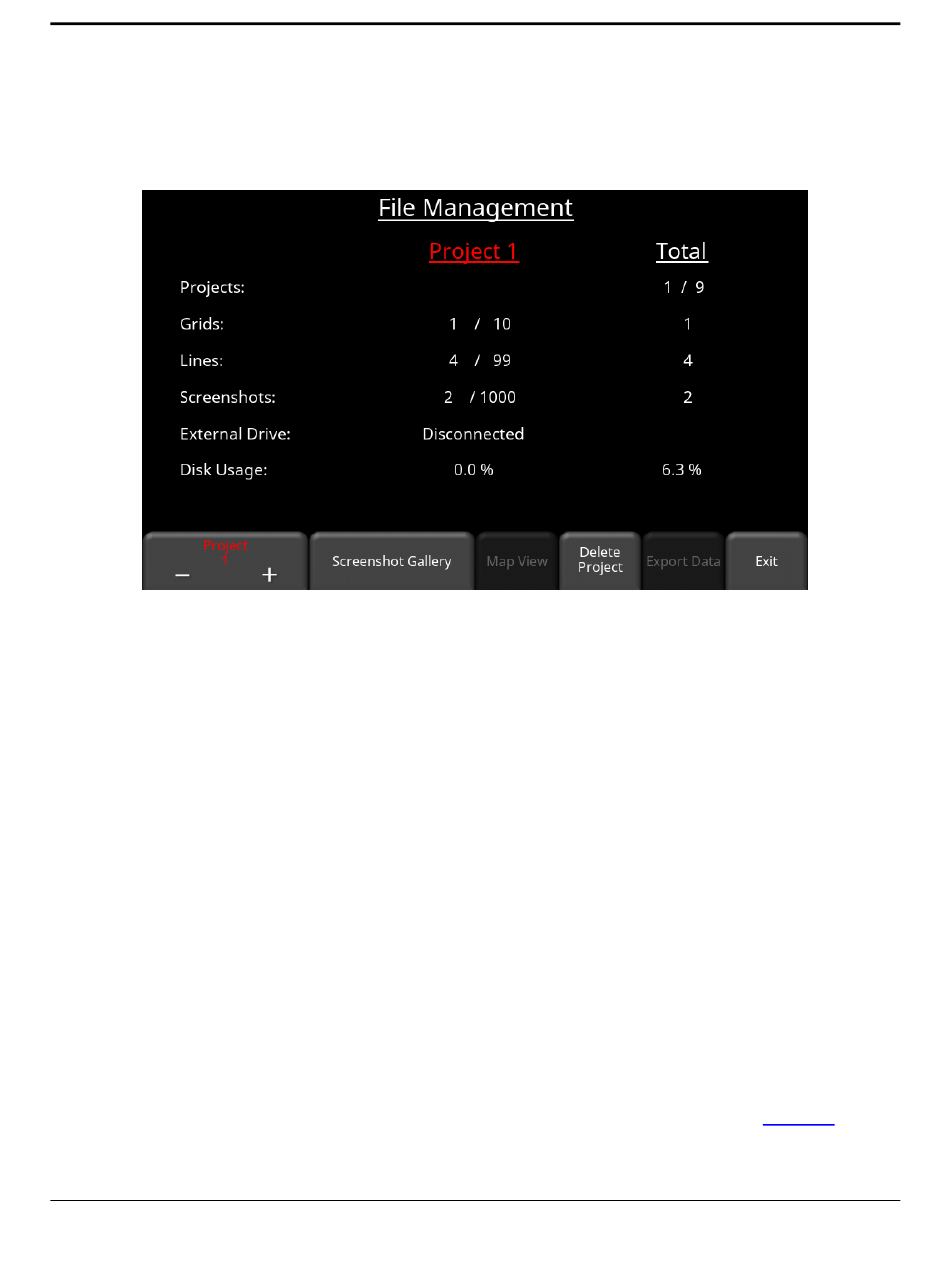

Figure 5-43: Main screen in File Management
99
Tools and Preferences
Section 10.1).
