Assembling Full Configurations

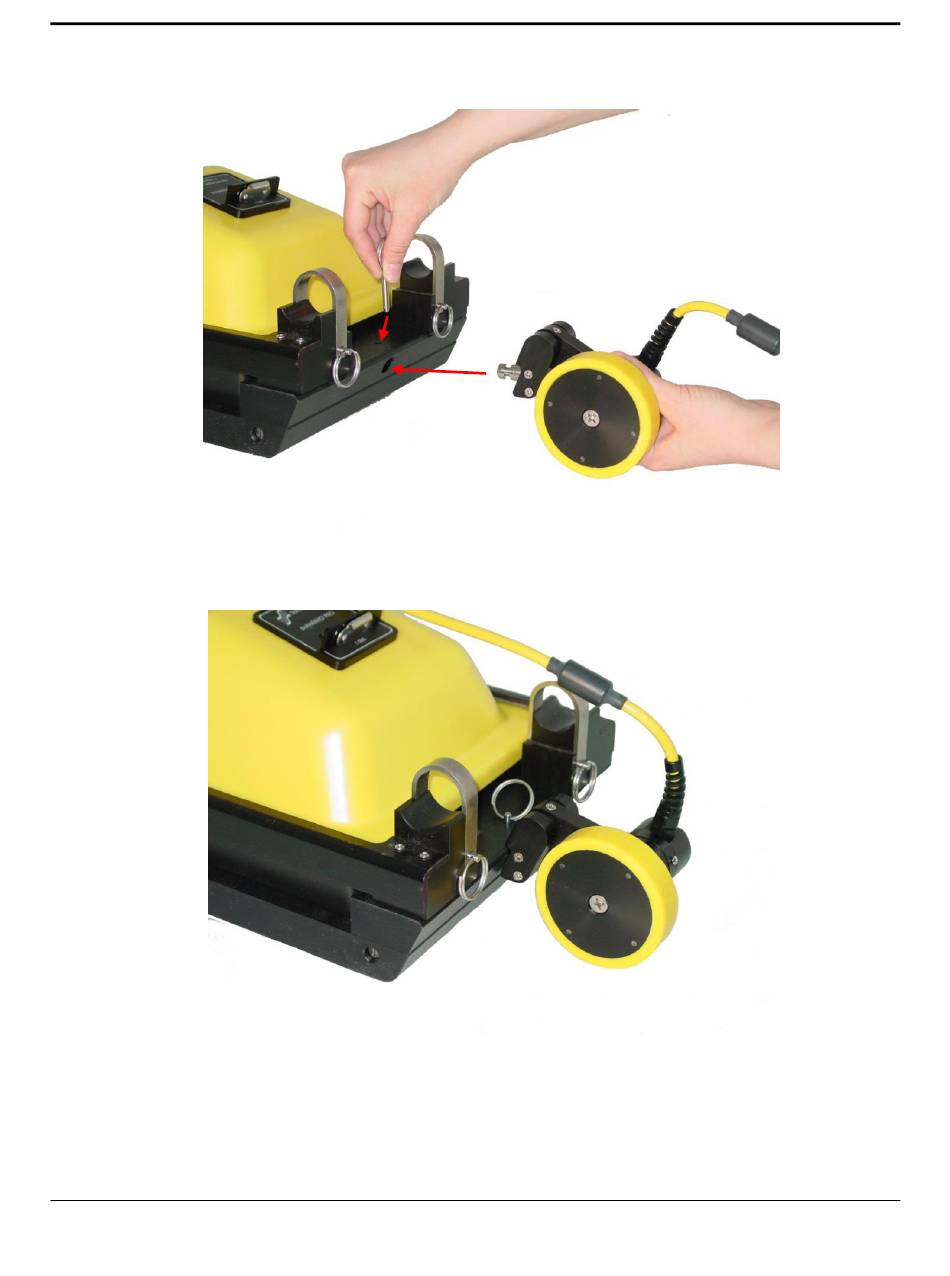

Attach the small wheel odometer to the skid plate assembly by inserting the metal post into the
hole on the end of the skid plate (1).
2
1
Secure the odometer by inserting the metal pin into the vertical hole on the edge of the skid
plate (2).
Loop the odometer cable so it does not interfere with the rotation of the odometer wheel.
Connect the odometer cable to the receptacle on the transducer cable. You can also connect
the odometer cable to the back of the DVL, but you will need an odometer extension cable; this
is not recommended as the cables now need to run a longer distance, near the antennas.
