3.3.1 Low Frequency Antenna SmartTow

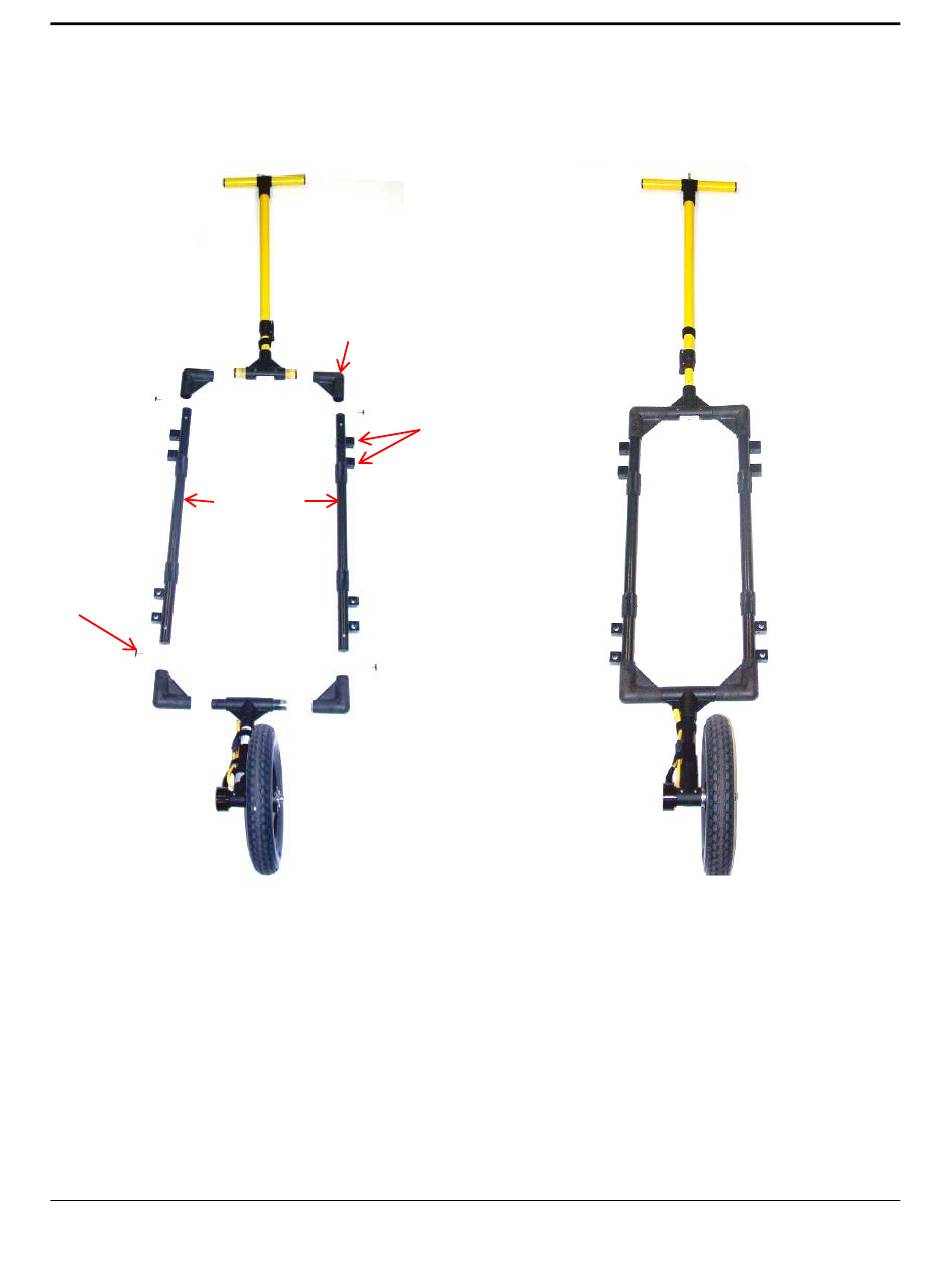

Ensure that the antennas and electronics are assembled and connected. The following image
displays the parts of the SmartTow frame:
Thumb
Screw
pulseEKKO SmartTow frame parts
The instructions below describe how to assemble the Tow Frame:
1. Place the Tow Frame Sides so the antenna post blocks are facing outward.
2. Connect each piece using the four thumbscrews. Be careful to not strip the threads.
The handle and big wheel odometer are not connected to the frame with thumb screws
but held in place once the low frequency antennas are attached.
Corner
Bracket
Tow
Frame
Sides
Big Wheel
Odometer
Handle
Antenna
Post
Blocks
Assembled pulseEKKO SmartTow frame
30
Assembling Full Configurations
