Getting Started

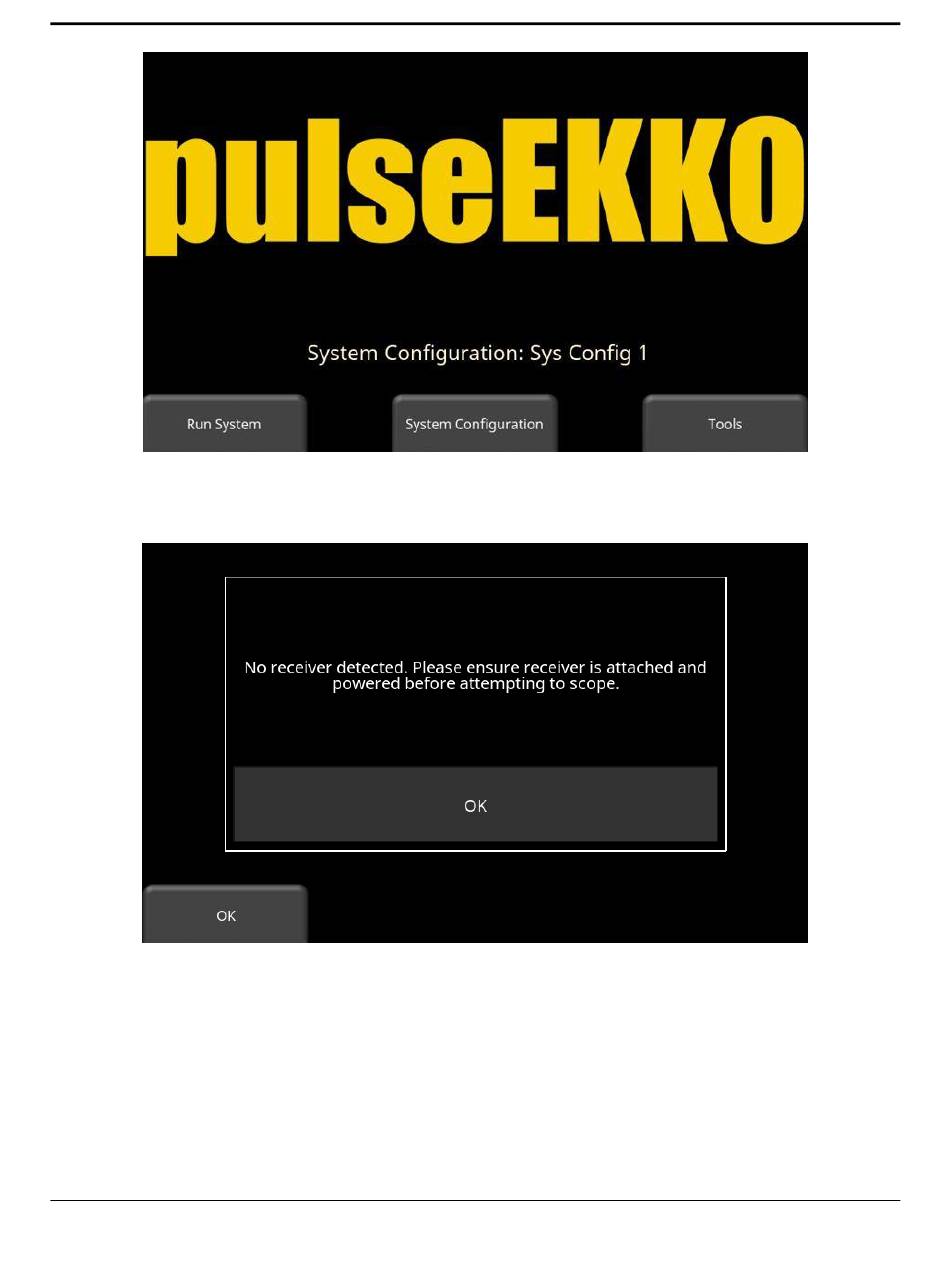

Figure 4-6: Main screen after bootup
Figure 4-7: Warning message that no antenna or transducer is connected

4.3 Interacting with the DVL

Data collection is controlled by the DVL Display. The DVL can set survey parameters and collect,
display and store data. It offers touch screen operation, as well as a keypad with a number of
buttons that can be pressed to perform various tasks. Most operations can be done using either
the touch screen or the keypad.
64
