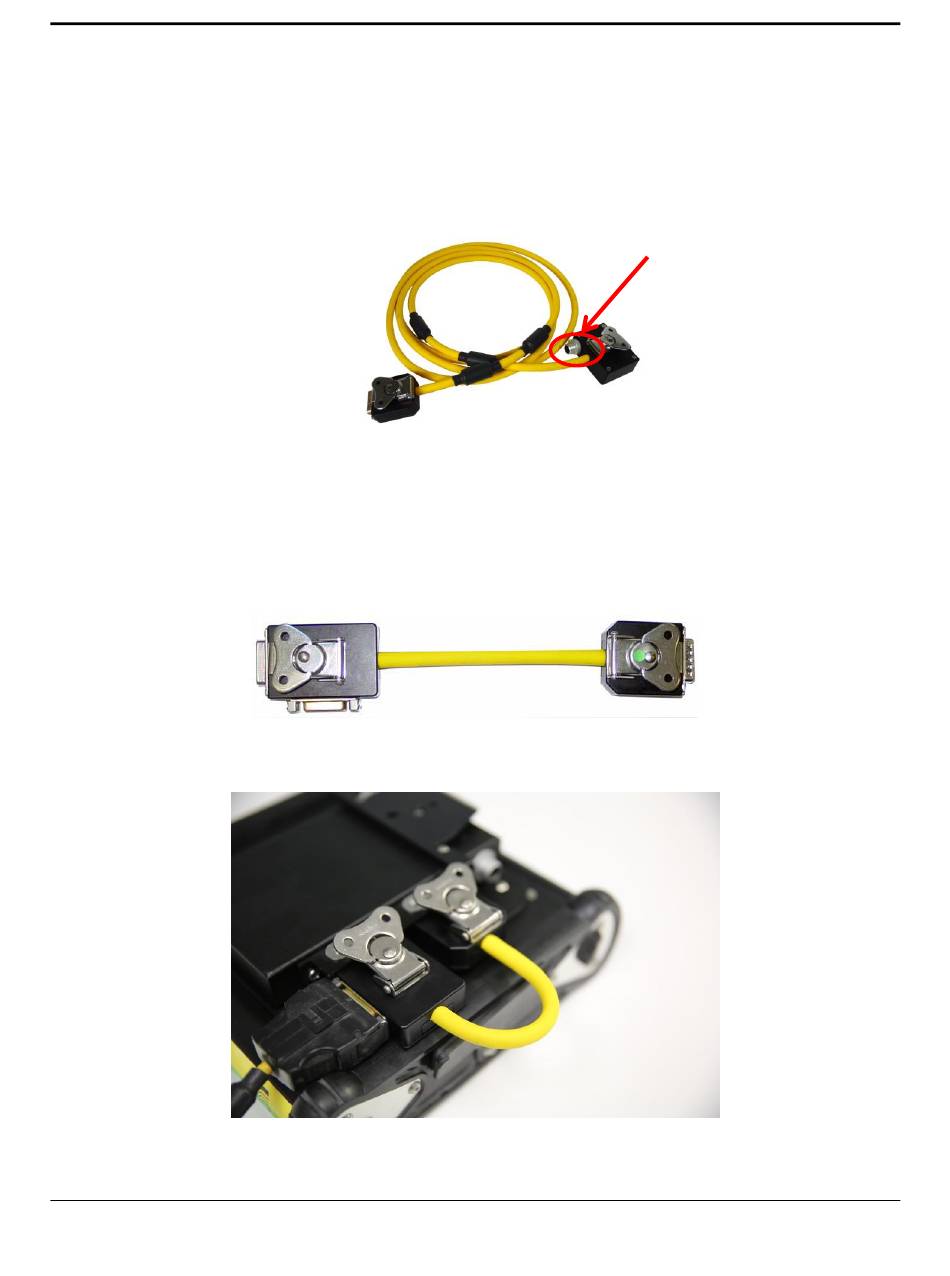

3.6.4 Connecting Cables with an Odometer Receptacle
Some configurations, such as SmartTow and SmartChariot are supplied with transducer cables
that support odometer input. Attach an odometer cable to the receptacle at the transducer end
of the odometer transducer cable.
3.6.5 Connecting Cables with a TR1000
The TR1000 uses a single cable connected from the back of the DVL to the sensor head.
However, a special adapter cable (shown below) is first required to connect the two transducer
cable receptacles together on the back of the DVL.
The TR1000 cable is available in variable lengths. Connect the male end of the TR1000 cable to
the adapter cable. The view below shows the back of the DVL, once all connections are made.
Odometer Receptacle
56
Assembling Full Configurations
