Assembling Full Configurations

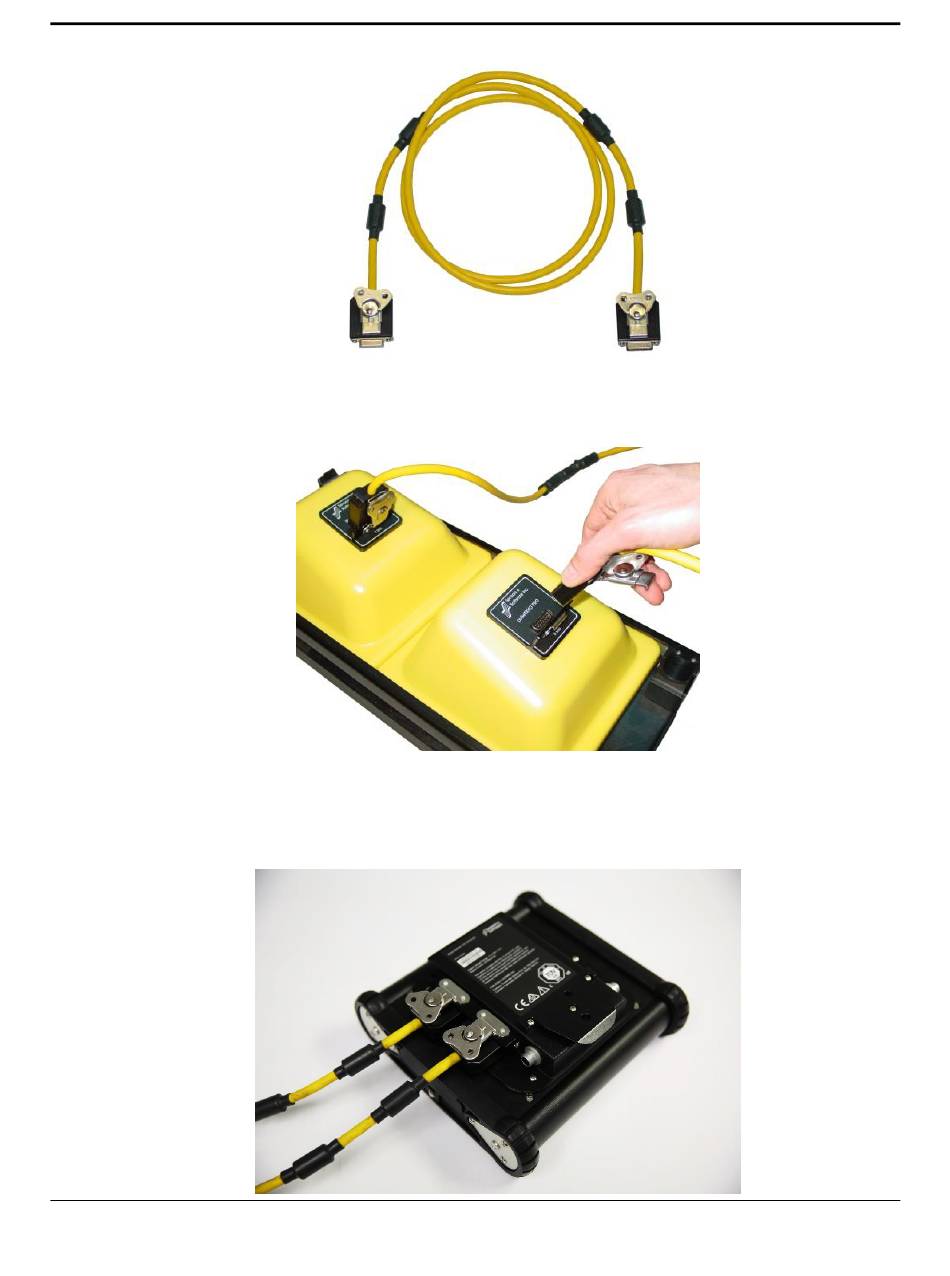

Connect the female end of each transducer cable to the transducers. Secure the connection
with the latch.
Connect the male end of the transducer cables from the transmitting and receiving transducers
to the back of the DVL. The electronics recognize which device is connected to which
receptacle. Secure the cable attachments with latches.
55
