Conquest 100 Grid Scan

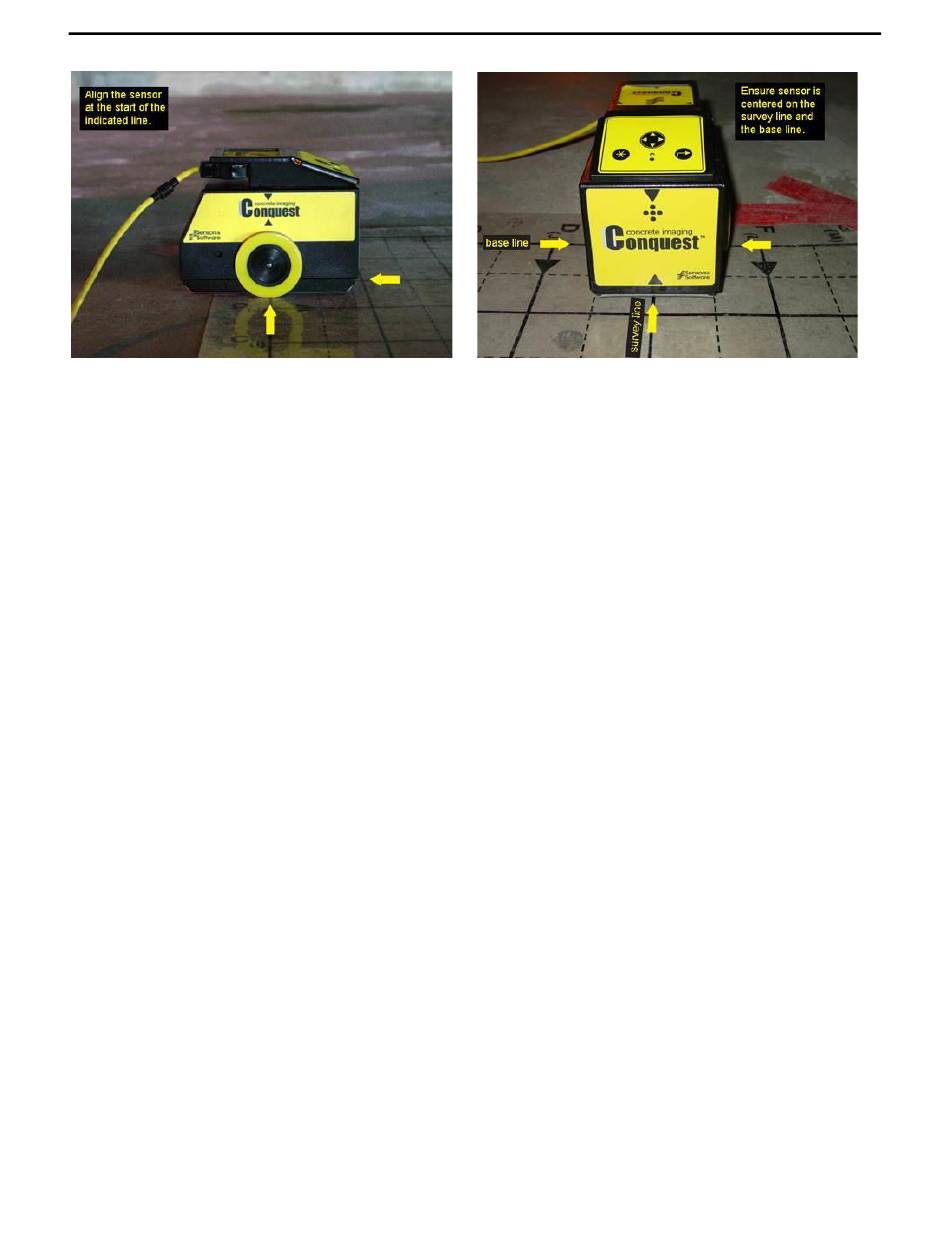

Figure 7-7: Properly position the Sensor Head on a grid line before scanning.
Position the center of the Sensor Head at the start of the line number indicated on the screen.
Use the arrows on the sides and top to center it on the base line and the arrows on the top and
ends to center it on the line to be collected (Figure 7-7).
Always collect lines in the direction indicated by the arrows on the grid mat (Figure 7-1).
Do not back up the Sensor Head while collecting a grid line.

7.9 Collecting Grid Lines

Select Start on the screen, the Enter key on the Sensor Head or the Bluetooth Trigger. The
system will beep once when ready to collect the line. Move the sensor along the survey line to
the end. Move the sensor at a steady pace, keeping it centered on the grid line. As a grid line is
collected, a graphic of the Sensor Head moves along the white line on the right side. On the left
side, the DynaQ color is shown as the line progresses towards completion.
The Sensor Head must be pushed slightly beyond the end line on the far edge of the grid mat
(1-2 cm) before the survey line stops and the system beeps twice.
In situations where the line must be stopped before the end of the grid is reached, press Enter
on the Sensor Head, End Line on the Display Unit or the Bluetooth Trigger.
Once you have finished the line, it will automatically move you to the next line on the grid
illustration, as well as displaying the line number/letter overlaid on the grid. The line scan from
the most recently collected line is displayed on the left side (Figure 7-8).
