PRISM Media Analysis Platform User Manual
Quad Link input configuration. Follow the steps 1 through 3 in Single input
configuration procedure and then perform the following steps to configure a
Quad Link input:
NOTE.
All four SDI inputs must be connected to a cable on the back of the
instrument to use the Quad Link Input Configuration.
1. Confirm that Quad Link cables are connected to the back of the instrument.
Quad Link A is connected to SDI-IN 1
Quad Link B is connected to SDI-IN 2
Quad Link C is connected to SDI-IN 3
Quad Link D is connected to SDI-IN 4
2. Select Quad Link for the Input Configuration. SDI 1-4 (Link A-D) is
selected by default.

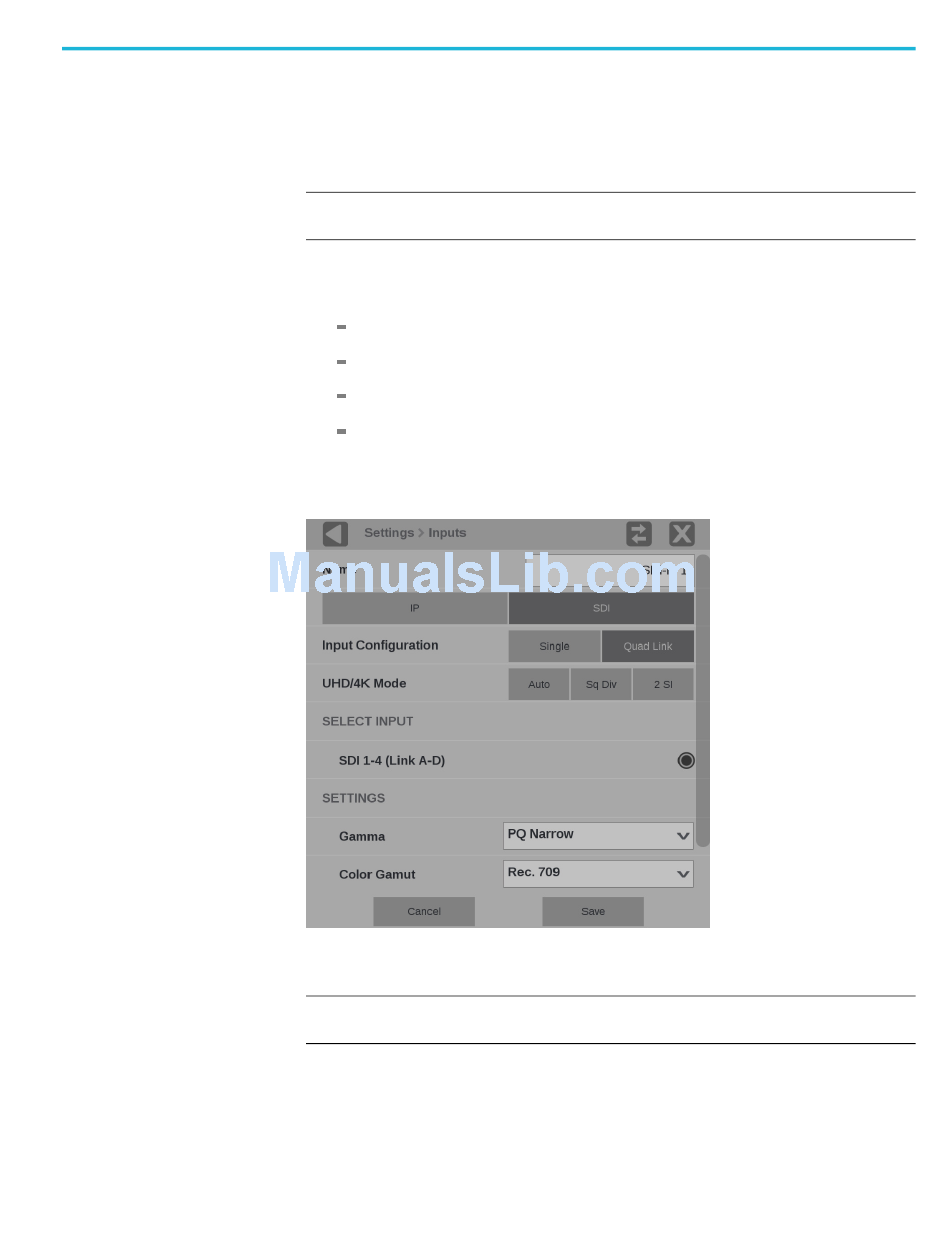

Figure 26: Quad Link SDI signal configuration
NOTE. The Quad Link and UHD/4K Mode buttons are only available when
software option MP-FMT-4K is present.
How to configure the instrument
43
