Vector application settings
menu
PRISM Media Analysis Platform User Manual
The expand icon ( ) expands or collapses the tile vertically. If the tile
expands it will cover the tile above or below, depending on whether you are
expanding the top or bottom quarter tile. Use the collapse icon ( ) to bring
the tile back to its original size.
The gear icon ( ) opens the Vector application settings menu to adjust the
tile settings.
NOTE.
After the Vector application settings menu is opened, a move icon ( ) is
displayed. Press this icon to move the settings menu horizontally.

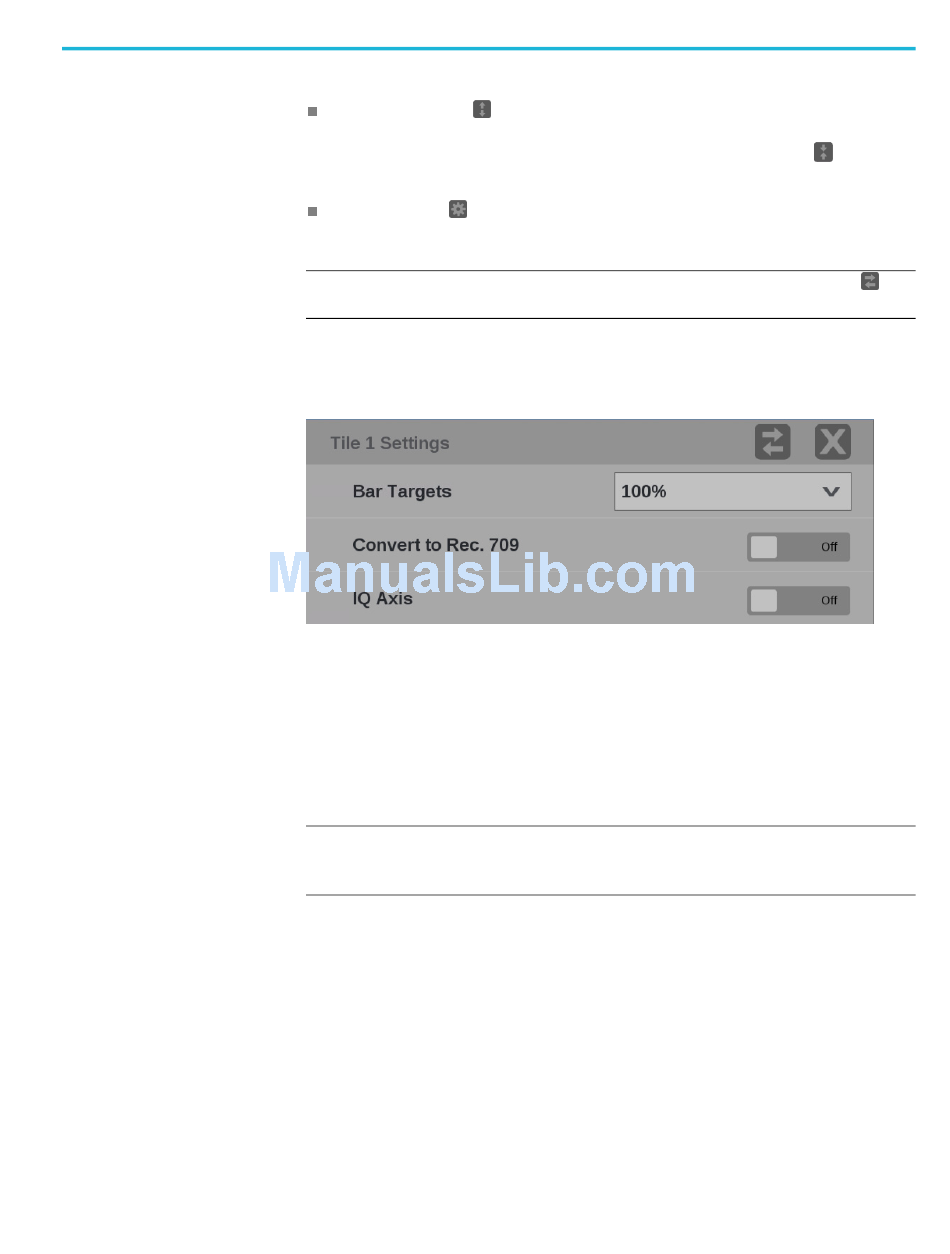

The following figure shows the different choices in the Vector application settings
menu.

Figure 74: Vector application settings menu

Bar Targets. Use the drop-down menu to set the scaling to either 75% or 100%.
Convert to Rec. 709. Turn this setting On to allow the trace displays to convert
the Gamma and Color Gamut settings for the signal to SDR Narrow and BT. 709
(requires Option MP-PROD).
NOTE.
Convert to Rec. 709 auto converts to BT.709, otherwise the graticule
selection must be manually changed (See page 53, How to configure the
instrument for HDR / WCG monitoring.)
IQ Axis. Use the button to turn the IQ Axis On or Off.
Application information
95
