How to configure the instrument for HDR / WCG monitoring
Waveform display

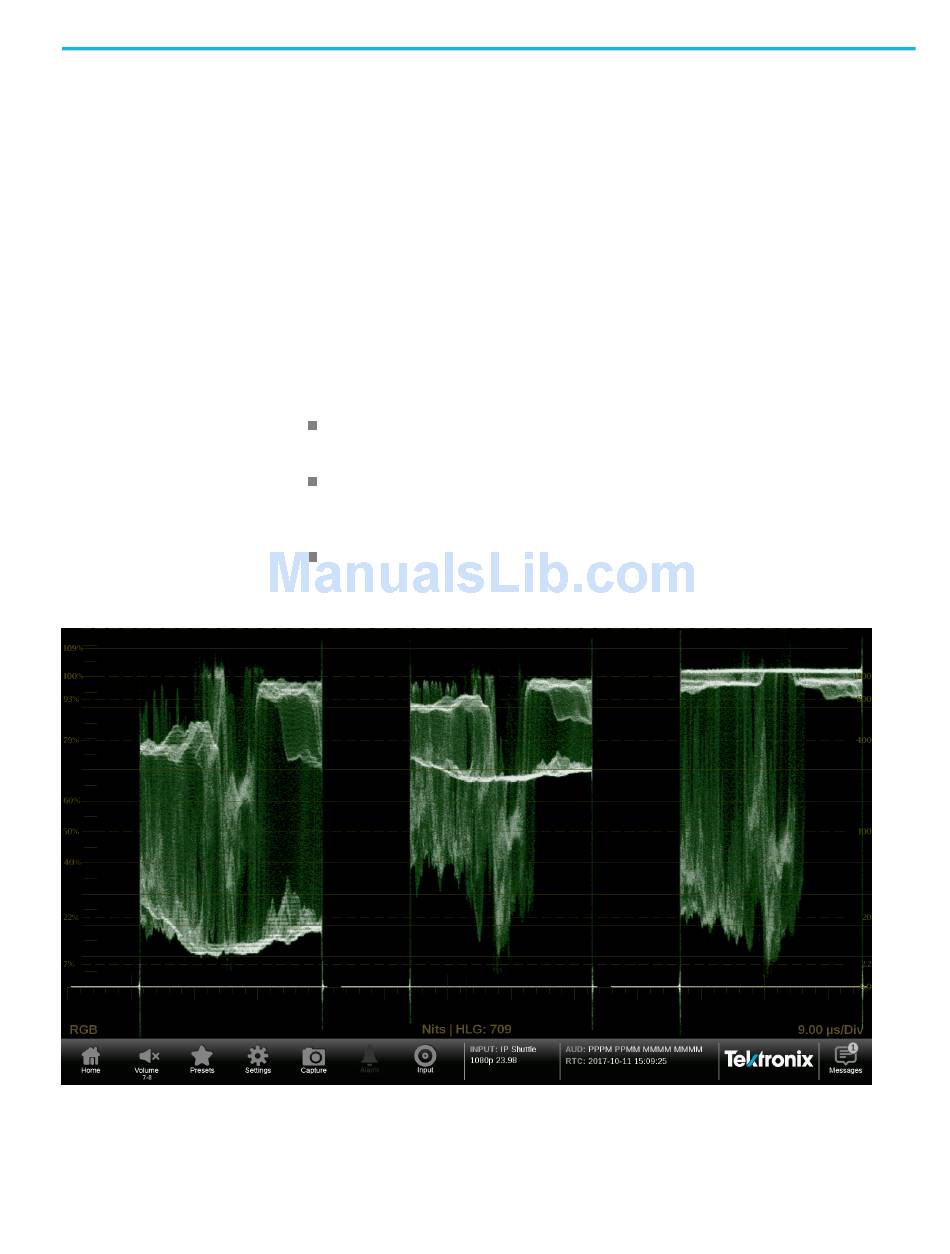

Figure 34: Waveform display with nits scale

PRISM Media Analysis Platform User Manual
PRISM provides HDR / WCG monitoring features that set up and balance cameras
in HDR / WCG during content creation. Before using these features, configure
the signal input (See page 40, How to configure and select signal inputs.) Use
the Gamma and Color Gamut drop-down menus to adjust the PRISM monitor
settings to reflect the input signal properties.
The following applications and features are used to configure the instrument
for HDR / WCG monitoring.
In the Waveform display application, use the Graticule drop-down menu to select
the graticule that fits your application. The trace represents the video data in
the vertical axis.
%, mV, and Code Value are fixed graticules. They are compatible with the
traditional waveform scales.
The Reflectance and Stop graticules vary depending on the Gamma selection
in the Input Settings menu. These are the Scene light graticules that are used
for scene setting and camera exposure adjustment.
The Nits graticule varies depending on the Gamma selection in Input Settings
menu. This is the Display light graticule and is used for mastering the content
for a targeted HDR system.
