Application information
VPID 352 tab display

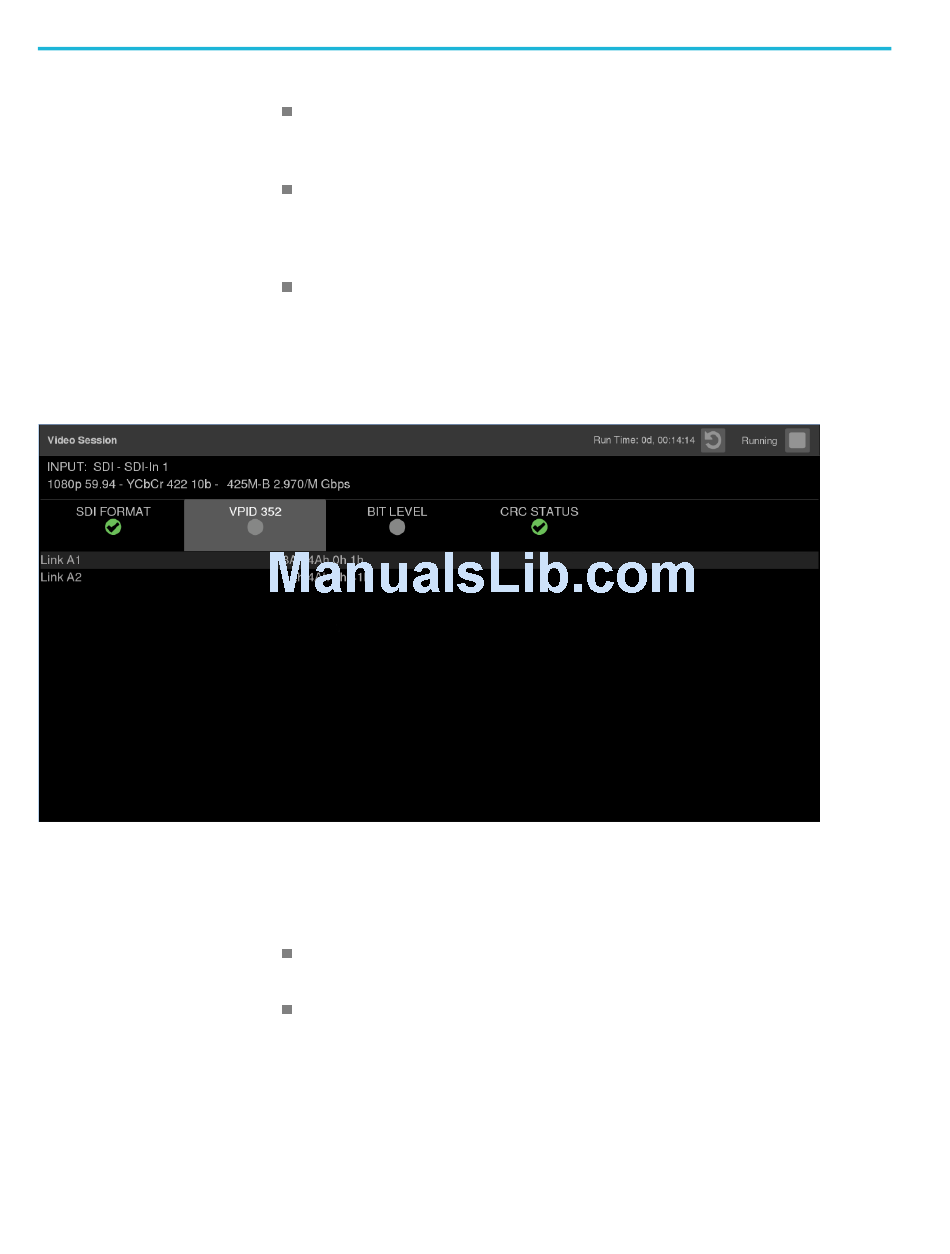

Figure 92: Video Session application – VPID 352 tab display for 3G-SDI Level B signal
112
Ancilliary Data: Indicates whether Ancillary Data is present in the video
signal. The displayed values are either Present or None for SD signals, or Y
and C Present and None for HD and 3 Gb/s signals.
Statistics: This section of the display shows the status and statistical values
for certain errors. For information about the errors in this section, view the
help file in your instrument: while the Video Session is active in a tile, press
the HELP button.
Status: Shows the status of the associated error as either OK, Invalid,
Missing, or Error.
Use the VPID 352 tab display to view the VPID values of the SMPTE352M
payload. For 3G-SDI signals, VPID is required on the primary link (Link A).
Elements of the VPID 352 tab display. The number of links depend on the type of
input signal.
Link A1: Indicates the presence and status of a SMPTE 352M payload on
Link A1 and lists the VPID values in hex.
Link A2: Appears only for 3G-SDI Level B signals. Indicates the presence
and status of a SMPTE 352M payload on Link A2 and lists the VPID values
in hex.
PRISM Media Analysis Platform User Manual
