Getting started
Item number
(See Figure 15.)
4
5
6
7
8
9
10
11
12
13
14
15
16
17
26
Description
Ethernet port. Standard RJ-45 connector for 10/100/1000Base-T Ethernet cable.
SDI OUT. BNC output of the selected SDI or 10 GbE input.
10 GbE SFP+ 1-2. Two optional SFP+ ports for 10 GbE Ethernet applications.
SDI SFP+ 3-4. Two optional SFP+ outputs for SD/HD/3G-SDI signals.
SDI SFP+ 1-2. Two optional SFP+ outputs for SD/HD/3G-SDI signals.
SDI IN 3-4. Two BNC inputs that can operate in the following modes:
Single SD/HD/3G-SDI link. When used as a single link, only one of the SDI 1-4 inputs is active
at a time.
Quad 4K links when used in conjunction with the SDI 1-2 inputs (Option MP-FMT-4K only). When
used as Quad 4K links, all four SDI inputs are active.
SDI IN 1-2. Two BNC inputs that can operate in the following modes:
Single SD/HD/3G/12G-SDI link (Option MP-FMT-4K is required for 12G support). When used as
a single link, only one of the SDI 1-4 inputs is active at a time.
Quad 4K links when used in conjunction with the SDI 3-4 inputs (Option MP-FMT-4K only). When
used as Quad 4K links, all four SDI inputs are active.
Single 12G Eye link on SDI 1 input only for physical layer measurements, including automated
measurement of 12G-SDI Eye pattern parameters (requires Options MP-FMT-4K and PHY-12G).

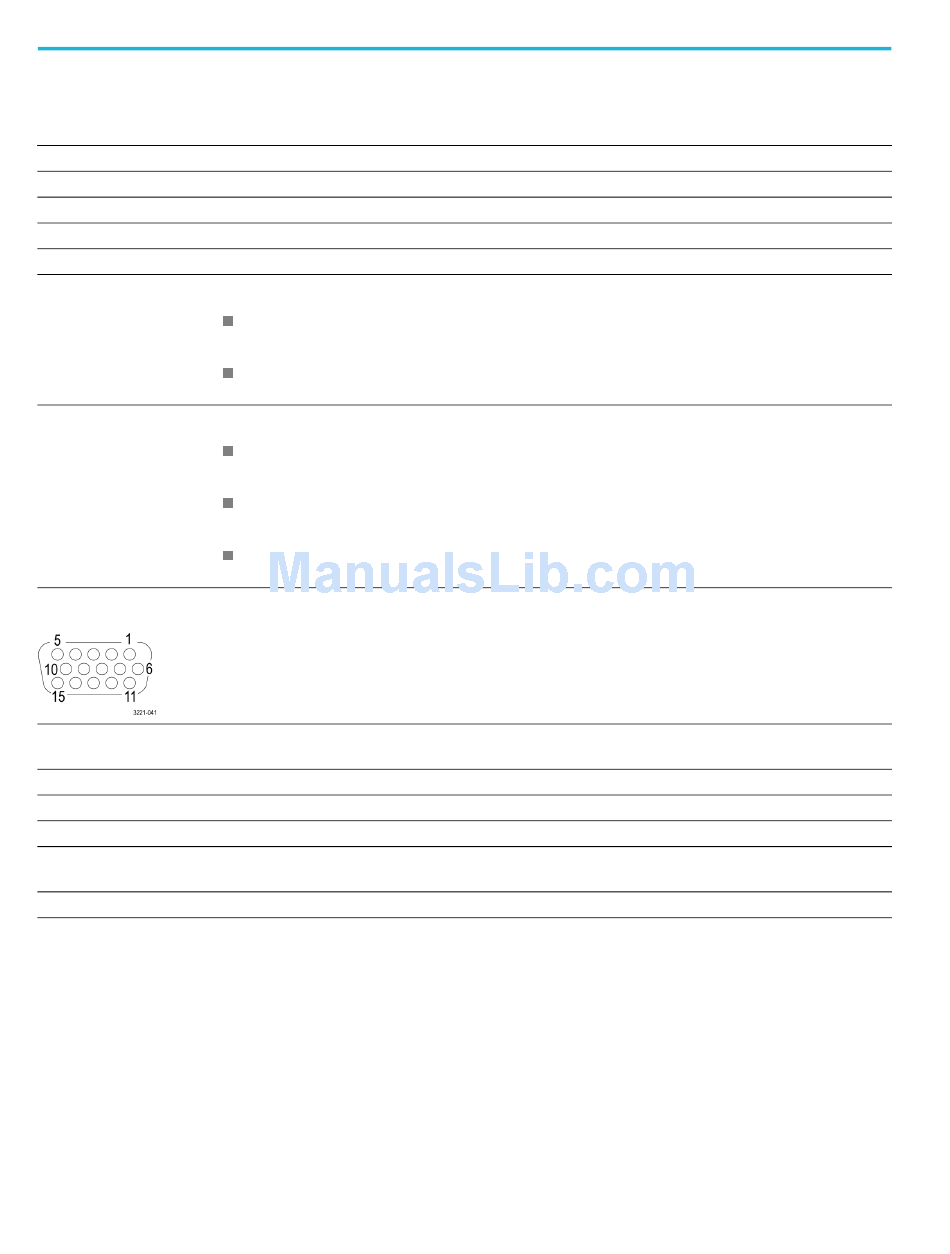

LTC/GPIO. 15-pin, D-type connector is for future functionality.
IN – REF – OUT. The REF IN connector is for future use. The REF OUT connector outputs a 1 PPS
(Pulse Per Second) signal when the instrument is locked to a PTP reference.
Audio input. This connector is for future use.
Audio output. 3.5 mm line out port for using headphones with the selected audio channel pair.
Mic input. This connector is for future use.
USB ports. Four USB 3.0 ports for connecting a mouse and keyboard, importing or exporting instrument
presets, upgrading the instrument firmware, or saving screen and stream captures.
DVI port. DVI port output for an external monitor. The output video format is 1920 x 1080.
