Eye Display application

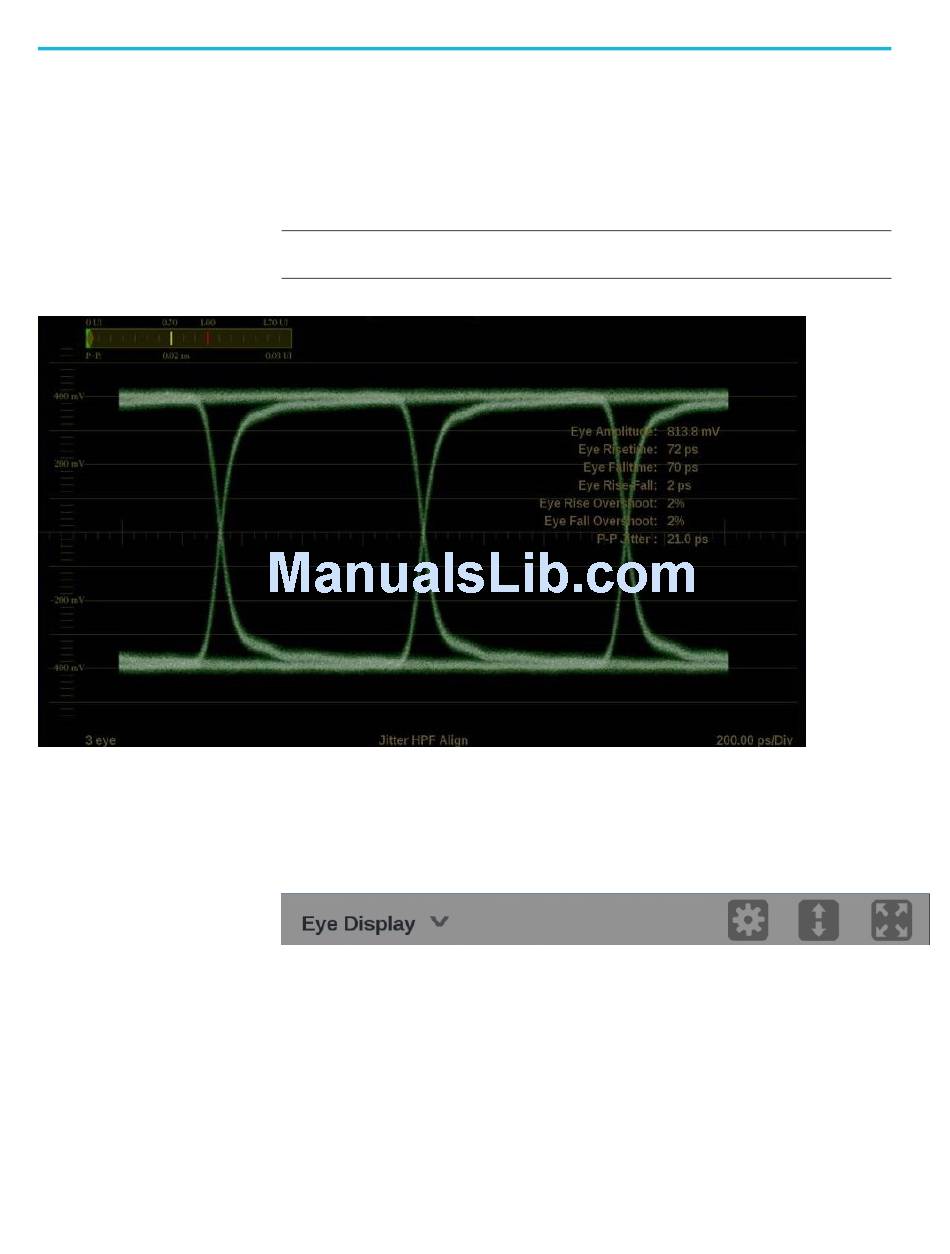

Figure 80: Eye Display application display
Eye Display application
banner
100
The Eye Display presents an eye pattern diagram of the SDI signal to verify
electrical characteristics of the SDI transport layer. Use this application to make
automated eye measurements on SD, HD, and 4K SDI signals.
NOTE.
This application requires hardware option PHY-12G and software option
MP-FMT-4K to enable 12G-SDI. This application is only valid on SDI 1.
The following figure shows the available options after pressing and holding
anywhere on the Eye Display application tile.
Figure 81: Eye Display application banner
PRISM Media Analysis Platform User Manual
