Application information

IP Graphs application

IP Graphs application
banner
138
Use the IP Graphs application to view various graphs that show aspects of the IP
stream. As you scroll through the various graphs, the top of the selected graph
will jump to the top of the display area to aid in viewing the complete graph. The
displayed graph will be included in a saved preset.
NOTE.
Option MP-IP-MEAS must be installed to use the IP Graphs application.
The IP Graphs application has been enhanced to include Path 1 and Path 2, if
ST2022-7 monitoring is configured. The graph data can be switched between
viewing only Path 1, Path 2, or both by using the Path button in the upper right
of the screen.
NOTE. The Path button only works with 2022-7 seamless switching enabled in
input configuration.
The following figure shows the available options after pressing and holding
anywhere on the IP Graphs application tile.

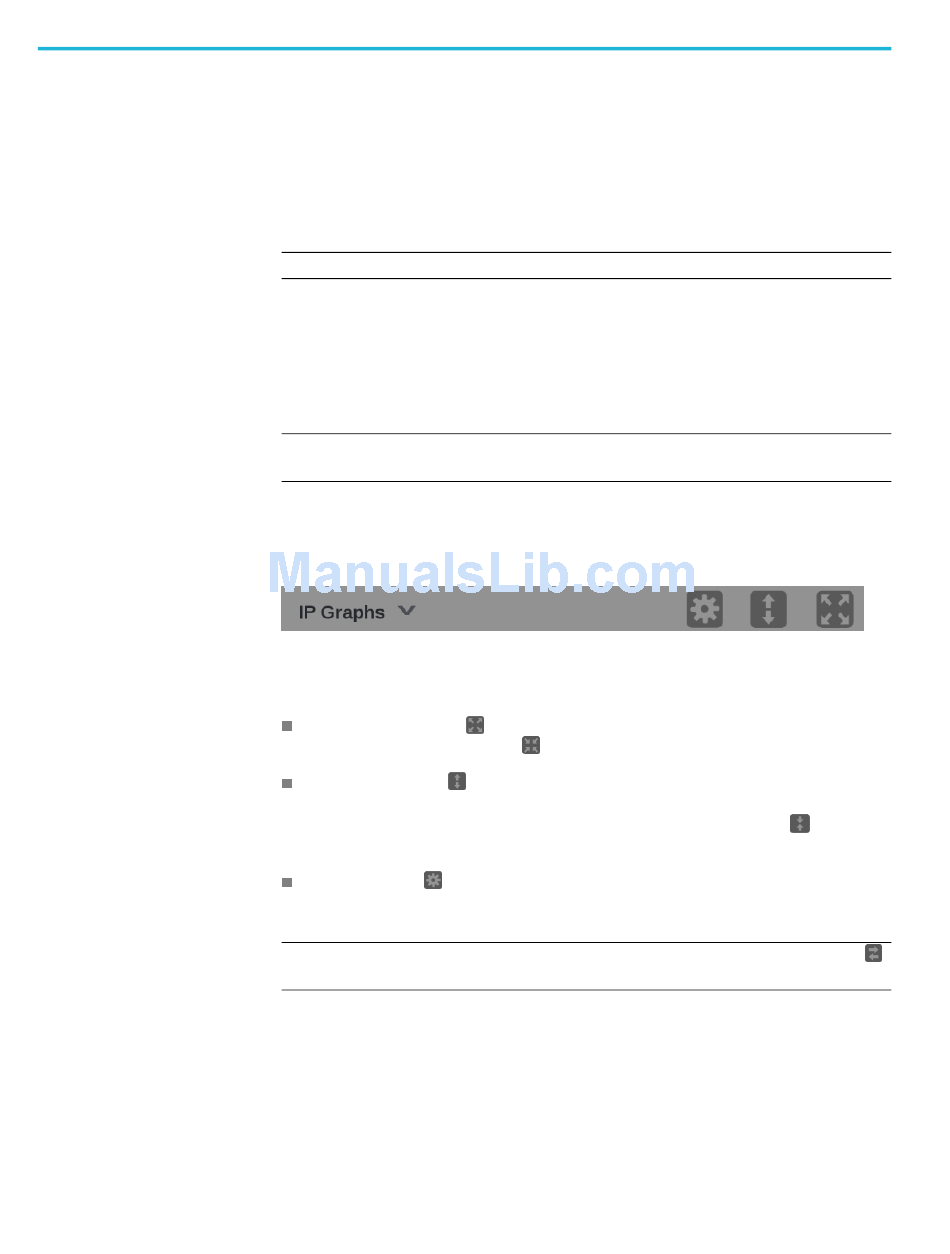

Figure 110: IP Graphs application banner
The following options adjust the IP Graphs application:
The maximize icon ( ) expands the IP Graphs application tile to the full
screen. The minimize icon ( ) collapse the tile back to its original size.
The expand icon ( ) expands or collapses the tile vertically. If the tile
expands it will cover the tile above or below, depending on whether you are
expanding the top or bottom quarter tile. Use the collapse icon ( ) to bring
the tile back to its original size.
The gear icon ( ) opens the IP Graphs application settings menu. Use this
menu to adjust Trend Interval.
NOTE.
After the IP Graphs application settings menu is opened, a move icon ( )
is displayed. Press this icon to move the settings menu horizontally.
