How to save and rename
presets

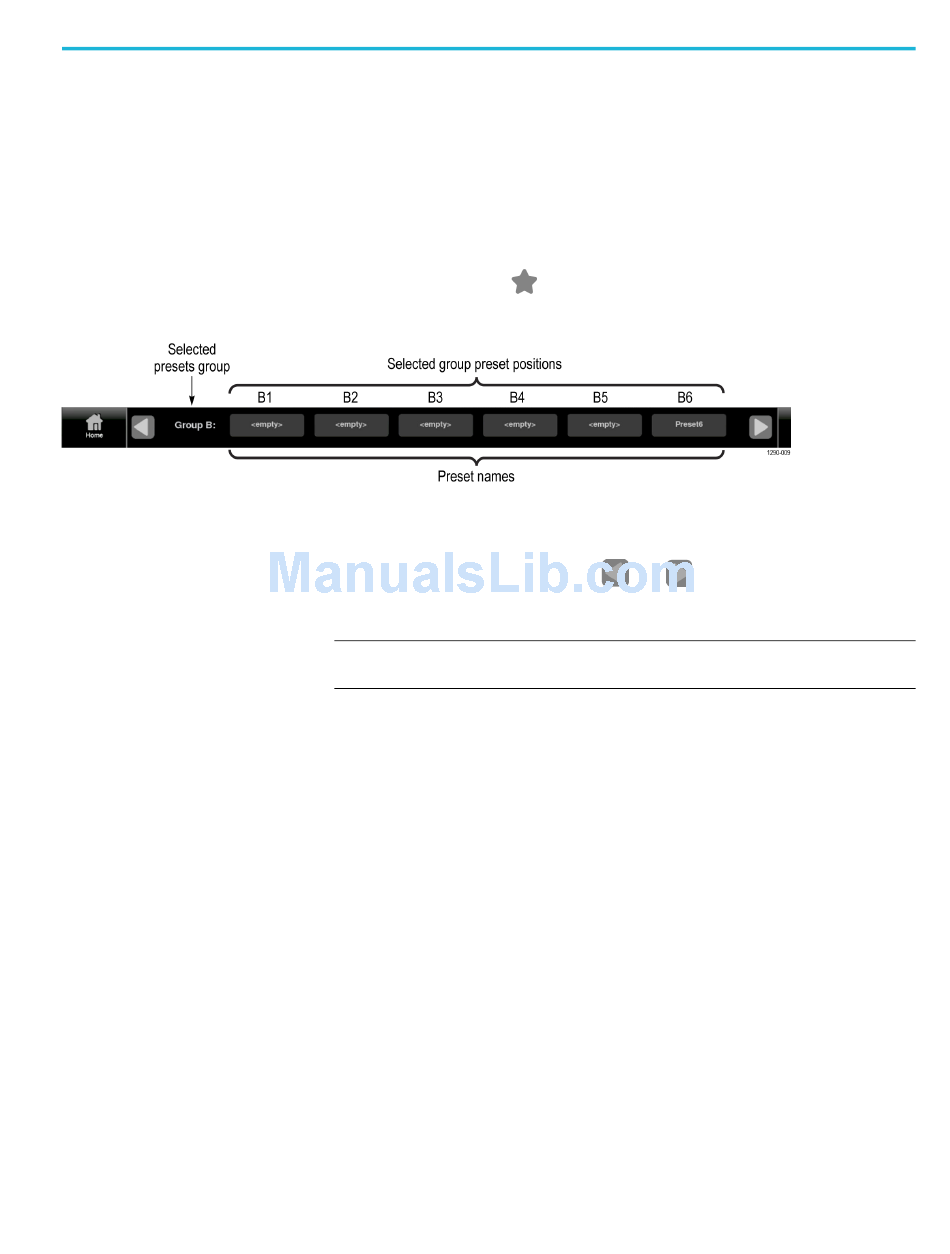

Figure 39: Preset selection controls (Group B shown)

PRISM Media Analysis Platform User Manual
Perform the following steps to save a preset and to assign a user-defined name
to the preset:
1. Set up the instrument exactly as you want to have it configured. This includes
selecting the application display for each tile, configuring inputs and the PTP
reference settings.
2. Save the instrument settings as a preset:
a. Touch the Presets (
bottom of the PRISM display.
b. Locate the Preset button icon you want to use for the current instrument
configuration. You can use the
left/right to navigate to the desired preset group (A–F).
NOTE.
When a preset has no content, <empty> is displayed on the preset
button icon.
c. When you have located the desired preset group, touch and hold the
preset button you want to assign the current instrument configuration. The
selected preset button will highlight and a confirmation box will appear.
In the example shown below, the Group B preset B6 is being saved.
How to configure the instrument
) icon to open the Preset selection controls at the
and arrow buttons or swipe
