MPX power-on and power-off procedures

MPX power cord
installation

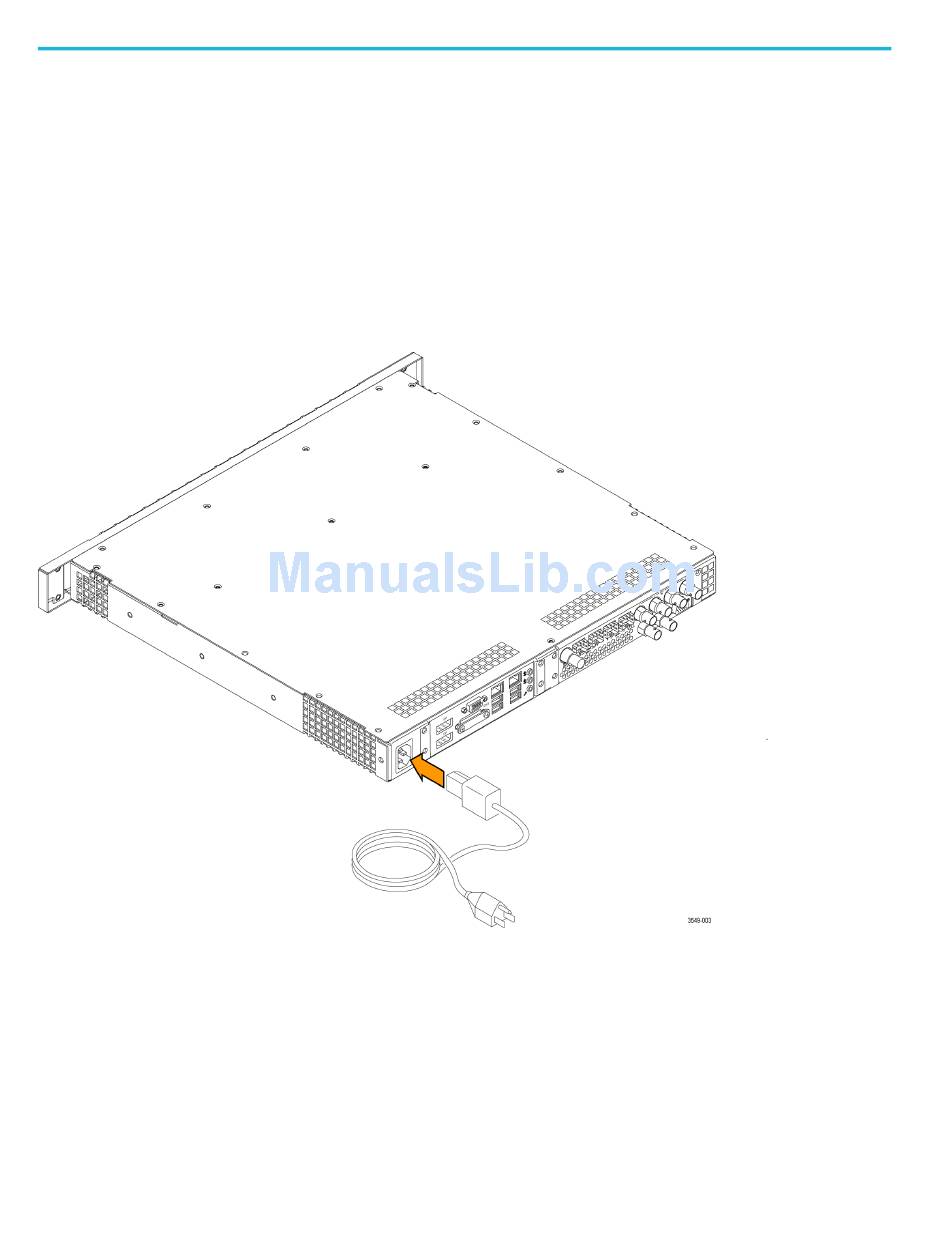

Figure 8: Connecting power to the MPX monitor

16
This section describes how to apply power to the MPX monitor and how to
power-on and power-off the instrument.
The MPX monitor is powered by an AC power source. Connect the power cord
to the power connector on the rear panel of the instrument as shown below. The
power connector is keyed to be directional, with the flat portion of the power cord
housing facing the left of the instrument (as viewed from the rear). When fully
inserted, the power cord housing latches on the instrument power connector.
